Electrostatic atomizer for use in a motor vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 7, 2012
Grant Date -
Jul 16, 2009
app pub date -
Jan 15, 2009
filing date -
Jan 15, 2008
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

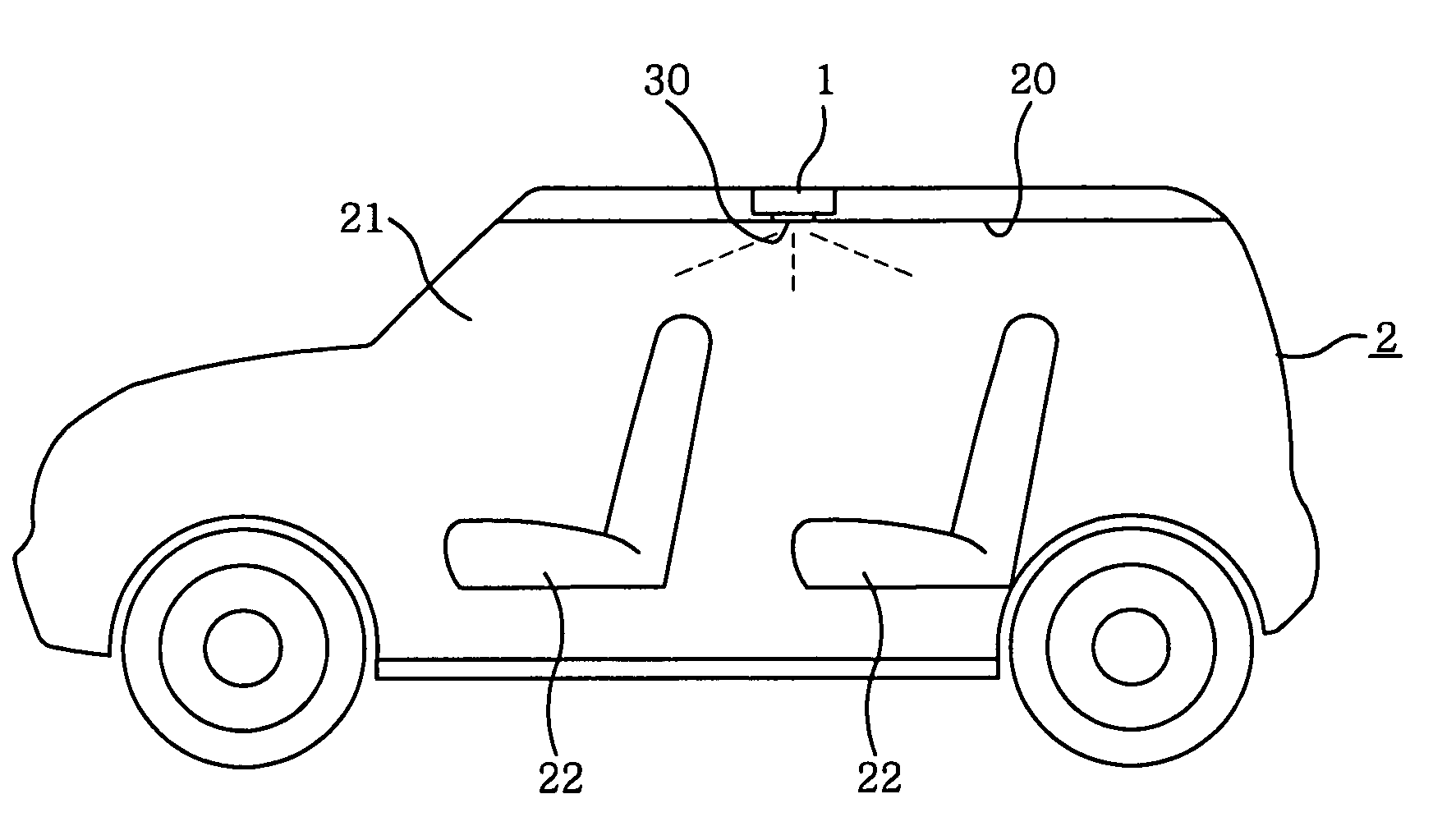

An electrostatic atomizer, for use in a motor vehicle, includes a discharge electrode, a water supply unit for cooling the discharge electrode to generate water condensed on the discharge electrode, and a high voltage applying unit for applying a high voltage to the water on the discharge electrode to electrostatically atomize the water. The electrostatic atomizer is arranged in a ceiling of the motor vehicle. The electrostatic atomizer further includes an ejection portion provided in the ceiling of the motor vehicle for ejecting electrically-charged water particles generated by electrostatic atomization and an ejection direction changing unit provided in the ejection portion for changing an ejection direction of the electrically-charged water particles.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | A | JP2009166627 | Jan 15, 2008 |
| EP | A1 | EP2080559 | Jan 13, 2009 |
| CN | B | CN101486307 | Jan 15, 2009 |
International Classification(s)
- 2009 Application Filing Year
- B05B Class
- 673 Applications Filed
- 437 Patents Issued To-Date
- 64.94 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 12 Citation Count
- B05B Class
- 72.45 % this patent is cited more than
- 13 Age
