Adhesive take-up, metering and spreading unit, in particular for bonding machines
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 31, 2012
Grant Date -
Jul 24, 2008
app pub date -
Jan 11, 2008
filing date -
Jan 19, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

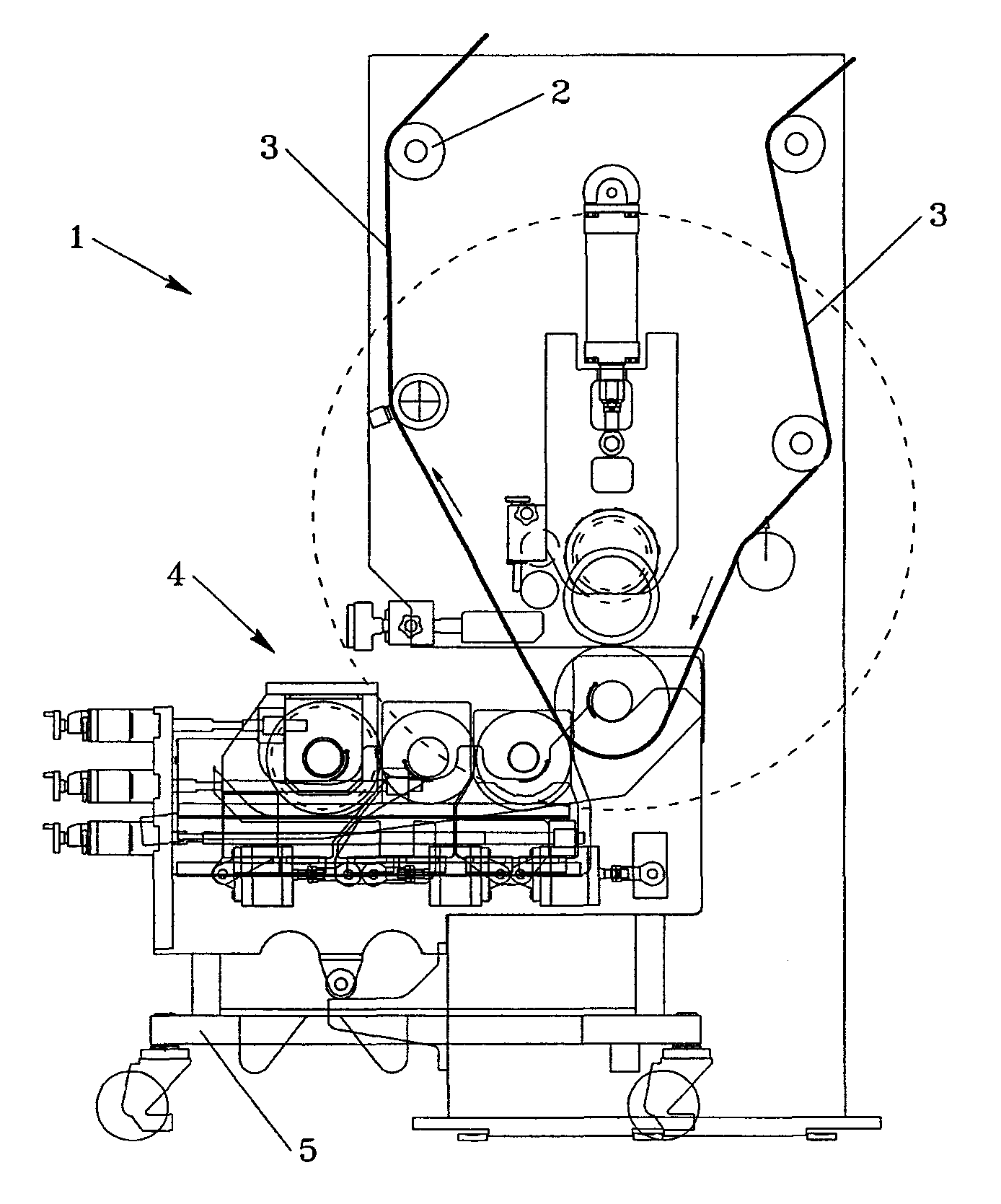

An adhesive take-up, metering and spreading unit, for bonding machines is truck-mounted so that it can be replaced without having to interrupt the operation of the plant, includes a plurality of rollers arranged in series, wherein a first rubber-clad roller takes up adhesive from a reservoir and transfers it to an anilox roller, from which the adhesive is taken up by a second rubber-clad roller, which transfers it to a film to be bonded. Each roller rotates at a higher speed than the preceding one, and the unit is fitted with members that regulate the distance between the rollers, and consequently the pressure that each rubber-clad roller exerts on the anilox roller, in order to meter the precise quantity of adhesive taken up and spread on the film. This characteristic allows even special adhesives, whose application is particularly difficult due to their viscosity characteristics, to be precisely spread and metered.
First Claim
Other Claims data not available
