Low-profile upholstery clip for attaching a bead to a foam substrate
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 24, 2012
Grant Date -
Mar 12, 2009
app pub date -
Sep 7, 2007
filing date -
Sep 7, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

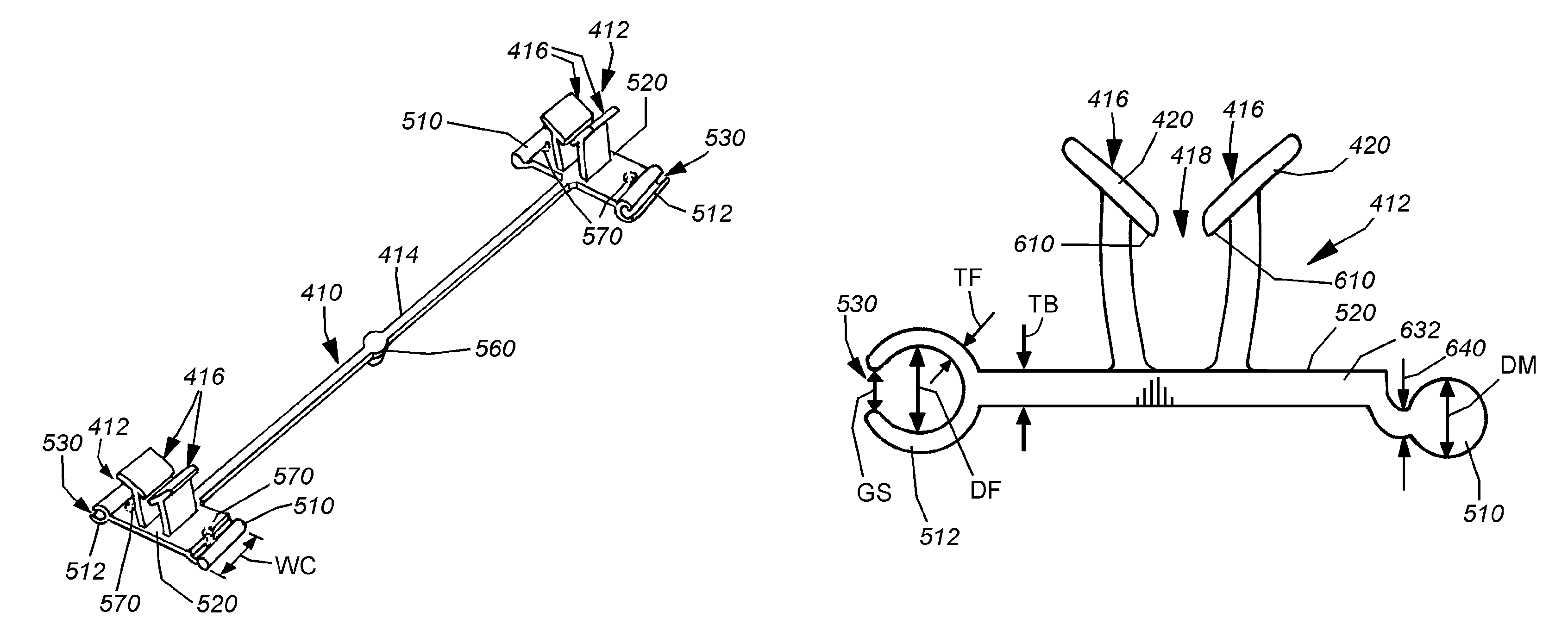

A low-profile clip adapted to secure a listing bead to a foam substrate and is constructed from a material that affords resilience, durability, high resistance to a wide range of temperatures during field use and seat assembly and ease of bead installation with high pull-out strength. The clip includes a base and a pair of legs extending upwardly from the base to a top barb. In this embodiment, the legs each extend upwardly from the base at a first angle of approximately 80 to 85 degrees and therefrom to each of the respective barbs at a second angle, with respect to a plane parallel to the base of approximately 88 to 90 degrees. In this manner the clip exhibits high performance while defining an overall height from tops of the legs to a bottom of the base of approximately ten millimeters or less making the clip particularly desirable for use in modern, thinner foam substrates.
First Claim
Other Claims data not available
