Body fat measuring device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 10, 2012
Grant Date -
Jan 15, 2009
app pub date -
Jan 25, 2006
filing date -
Jan 26, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

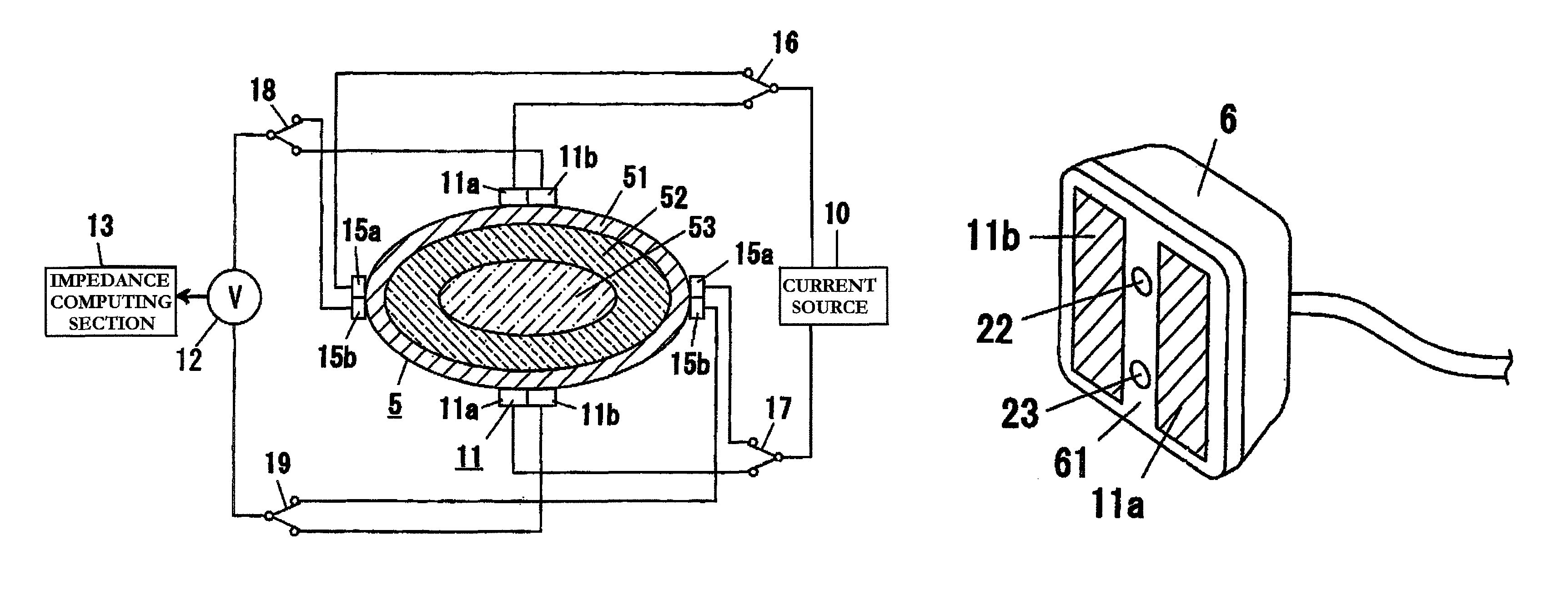

A body fat measuring device comprises electrodes brought into contact with the waist portion of a subject, an optical sensor composed of a light applying section and a light receiving section, an impedance computing section for computing the impedance between the electrodes, a subcutaneous fat thickness computing section for computing the thickness of the subcutaneous fat of the subject from the value detected by the optical sensor, and a body fat computing section which subtracts the amount of subcutaneous fat determined using the thickness of the subcutaneous fat computed by the subcutaneous thickness computing section from the total fat amount of the subject determined using the impedance computed by the impedance computing section so as to determine the visceral fat amount of the subject. With this, not only the accuracy of measurement of the visceral fat amount is improved but also the visceral fat amount of the subject can be easily computed even without a database.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- A61B Class
- 2.07 % this patent is cited more than
- 13 Age
