Two bits per cell non-volatile memory architecture
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 20, 2011
Grant Date -
Aug 19, 2010
app pub date -
Feb 13, 2009
filing date -
Feb 13, 2009
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

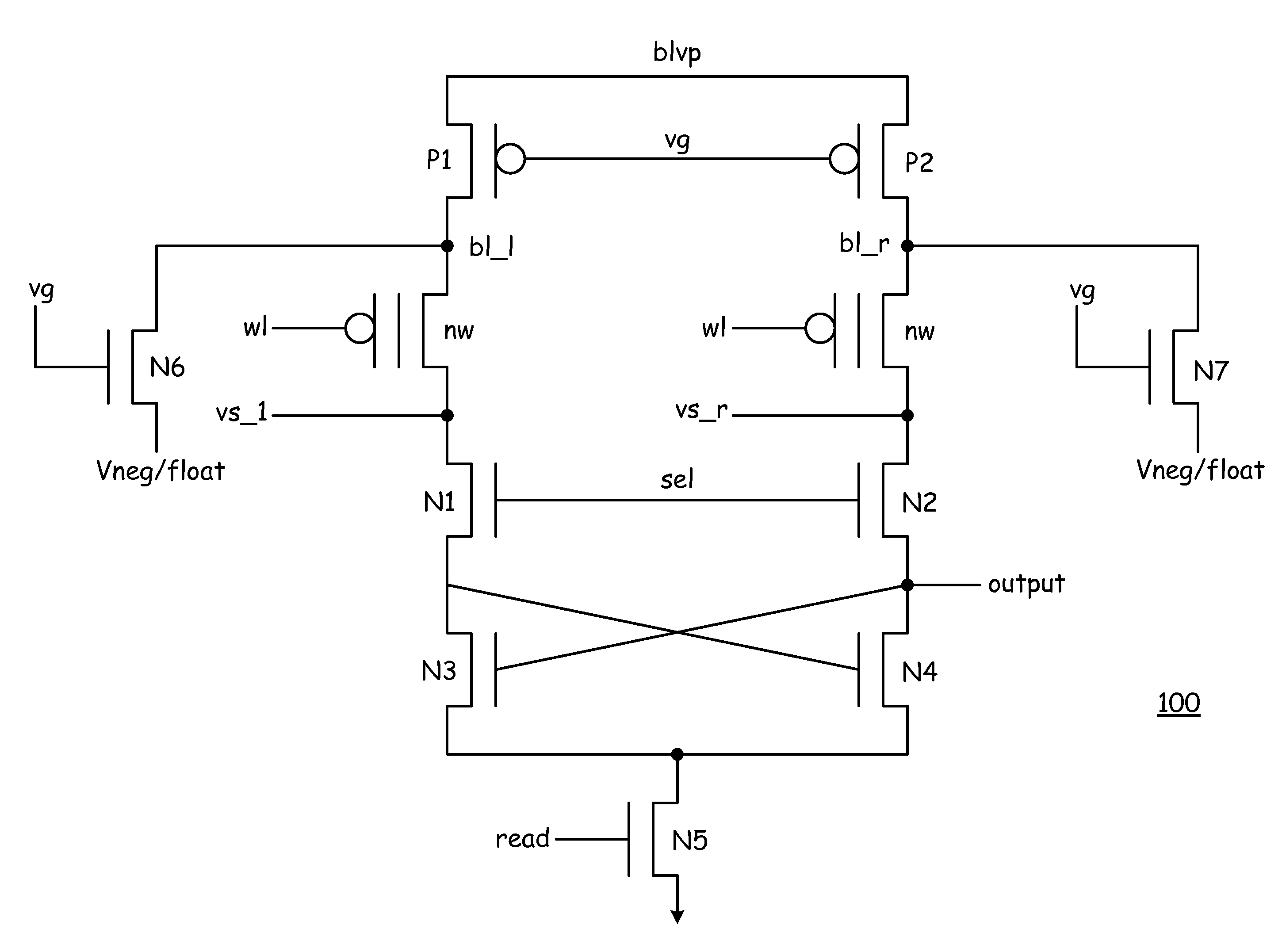

A memory circuit for holding a single binary value. A first bit cell holds one of a logical high value and a logical low value, and a second bit cell also holds one of a logical high value and a logical low value. Circuitry is provided for placing a logical high value in the first bit cell when the binary value in the memory circuit is to be a logical high value, and circuitry is provided for placing a logical high value in the second bit cell when the binary value in the memory circuit is to be a logical low value. In this manner, a logical high value exists within the memory circuit, whether the single binary value within the memory circuit is a logical high value or a logical low value. The difference between the two values of the binary value is which of the two bit cells holds the logical high value. Thus, this memory circuit can be sensed without the use of a sense amplifier.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G11C Class
- 0 % this patent is cited more than
- 14 Age
