Band-pass filter device, method of manufacturing same, television tuner, and television receiver
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 20, 2011
Grant Date -
Sep 24, 2009
app pub date -
Mar 13, 2009
filing date -
Mar 18, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

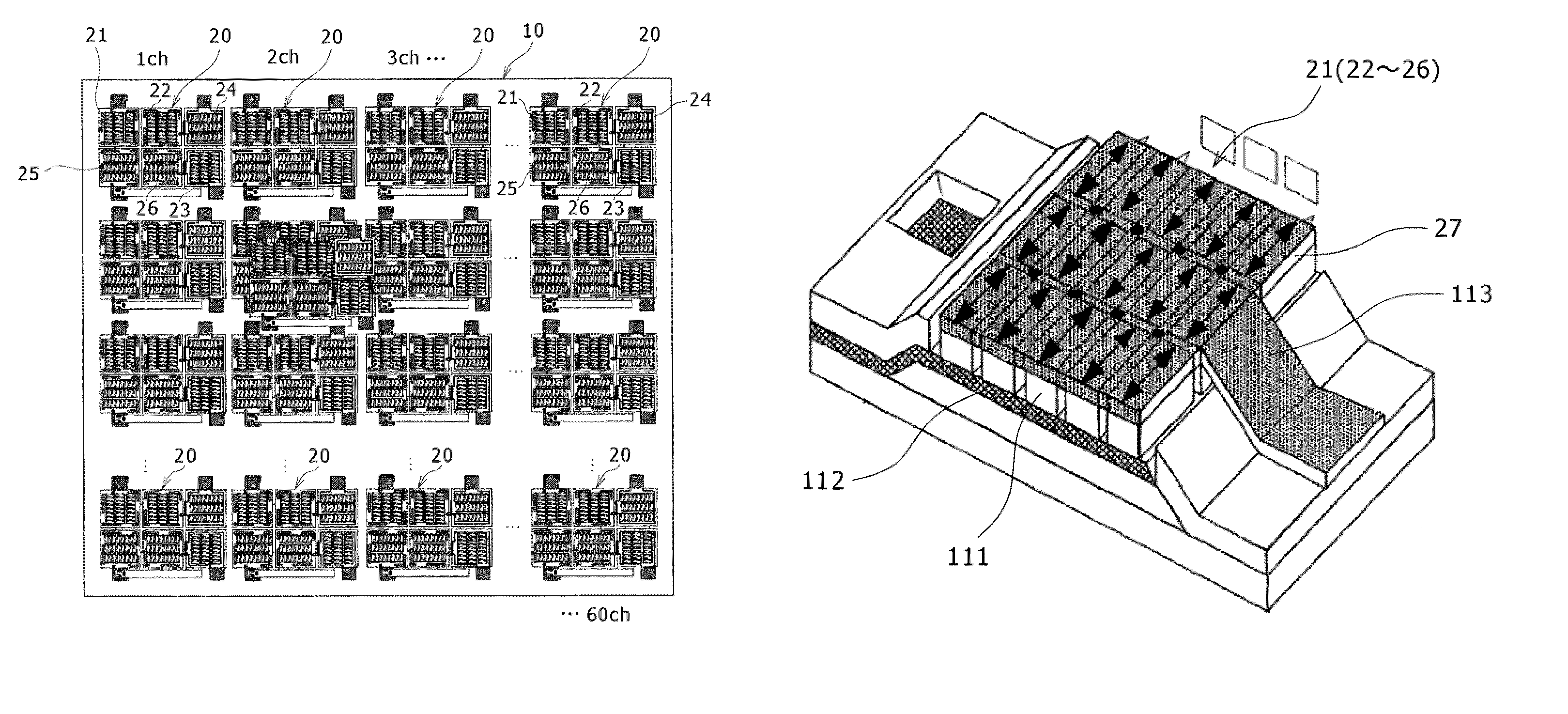

A band-pass filter device includes: a plurality of band-pass filter elements on a principal plane of a substrate; wherein the band-pass filter elements correspond to a plurality of respective channels divided by frequency regions, and each have a plurality of piezoelectric resonators. Each of the piezoelectric resonators includes a piezoelectric film whose periphery is supported by the substrate, a first electrode formed on a lower surface of the piezoelectric film, a second electrode formed on an upper surface of the piezoelectric film and formed in a state of overlapping at least a part of the first electrode with the piezoelectric film interposed between the second electrode and the first electrode, a lower space formed between the substrate and the piezoelectric film, and an upper space formed over the piezoelectric film.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- H04N Class
- 3.38 % this patent is cited more than
- 14 Age
