Inverted-type hinge and a portable electronic device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 13, 2011
Grant Date -
Feb 3, 2011
app pub date -
Aug 1, 2009
filing date -
Aug 1, 2009
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

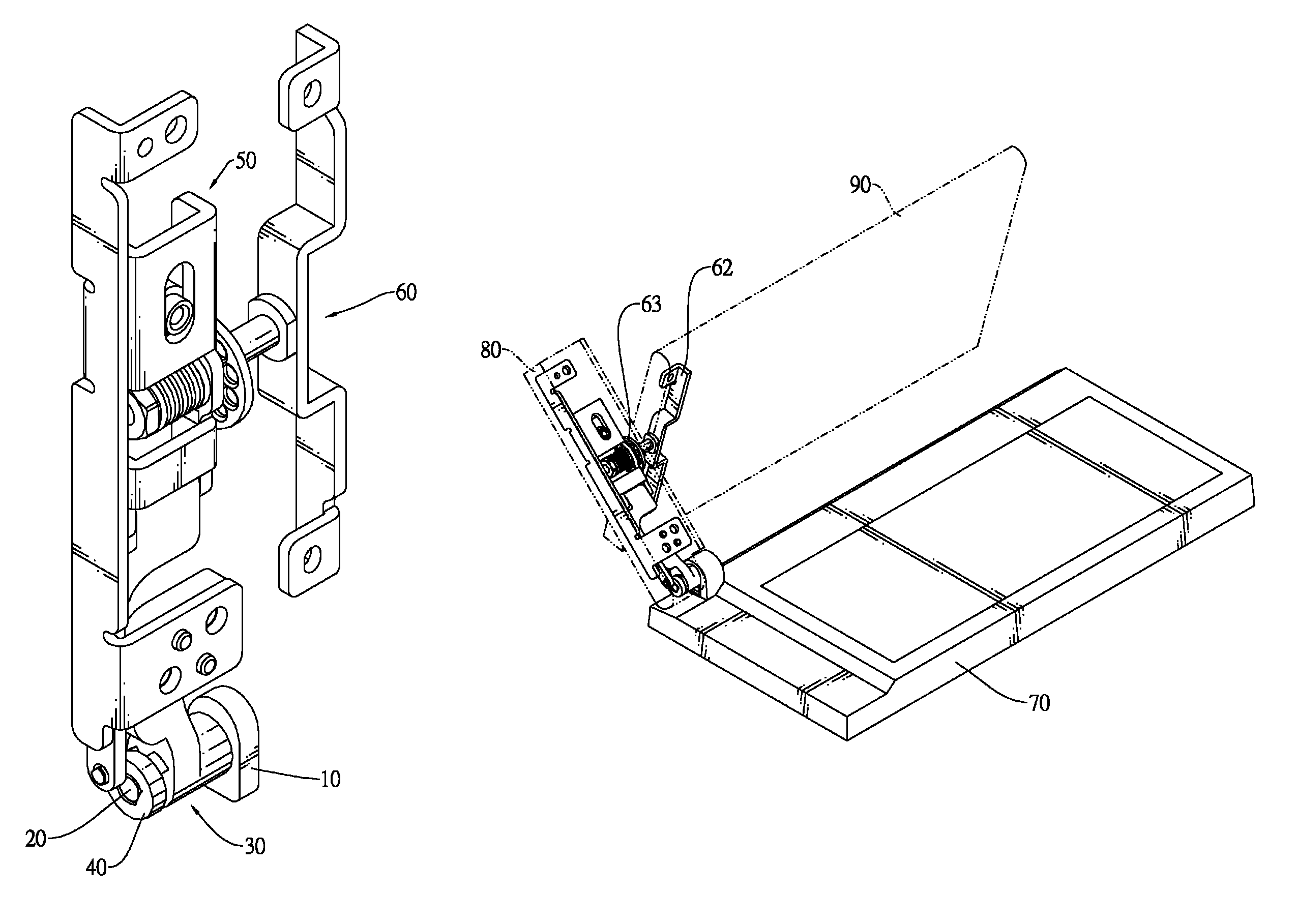

A portable electronic device with an inverted-type hinge has a cover connected to a stationary bracket, a side shell connected to a tilting assembly, a cover connected to an inverting assembly and a sliding assembly being eccentric to a tilting shaft. With cooperation between the inverting assembly and the tilting assembly, the cover may be inverted to reveal a display that leans against the base. Therefore, the user easily touches the display without pivoting the cover. Furthermore, the sliding assembly lifts the cover while the cover is opened relative to the base to prevent the cover from impacting the base.
