Method and device for the production of a split bearing arrangement
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 6, 2011
Grant Date -
Feb 7, 2008
app pub date -
Feb 22, 2005
filing date -
Mar 19, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

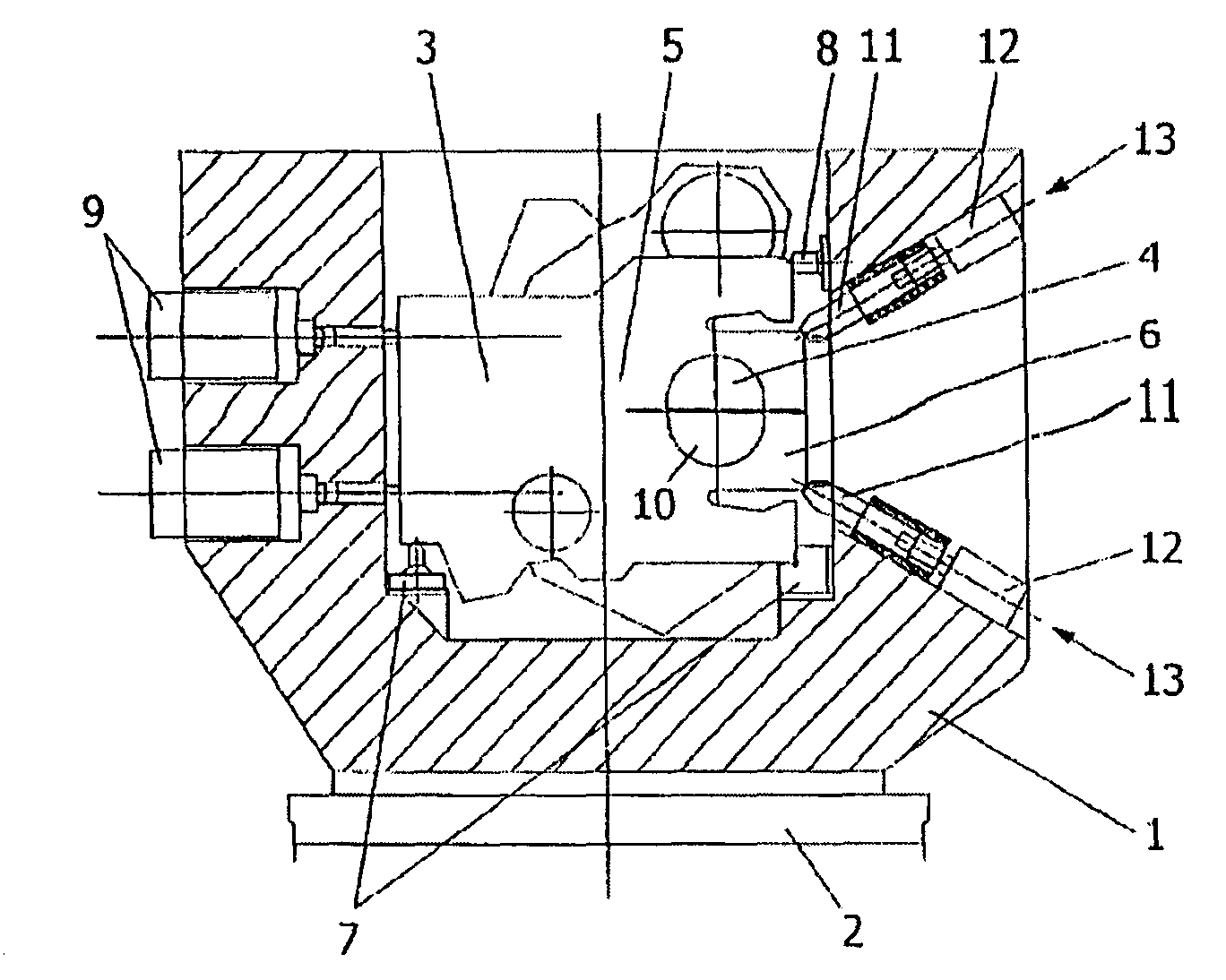

The invention relates to a method and a device for producing a split bearing arrangement, in which a top bearing part (6) is separated in several machining stations from a basic bearing part (5) that is monolithically joined thereto via a severing breaking process on a predefined plane of breakage (10) by applying a certain force, whereupon the two parts are joined back together by means of a screw connection comprising at least two screws. The basic bearing part (5) and the top bearing part (6) are fixed on an adapter device (1) that is conveyed from one machining station to another while the top bearing part is retained at least during some processes in the machining stations via a retractable auxiliary support (13) which is disposed on the adapter device and catches the top bearing part outside the area of the screw connection.
First Claim
Other Claims data not available
