Low frequency clock generation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 15, 2011
Grant Date -
Mar 22, 2007
app pub date -
Sep 21, 2005
filing date -
Sep 21, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

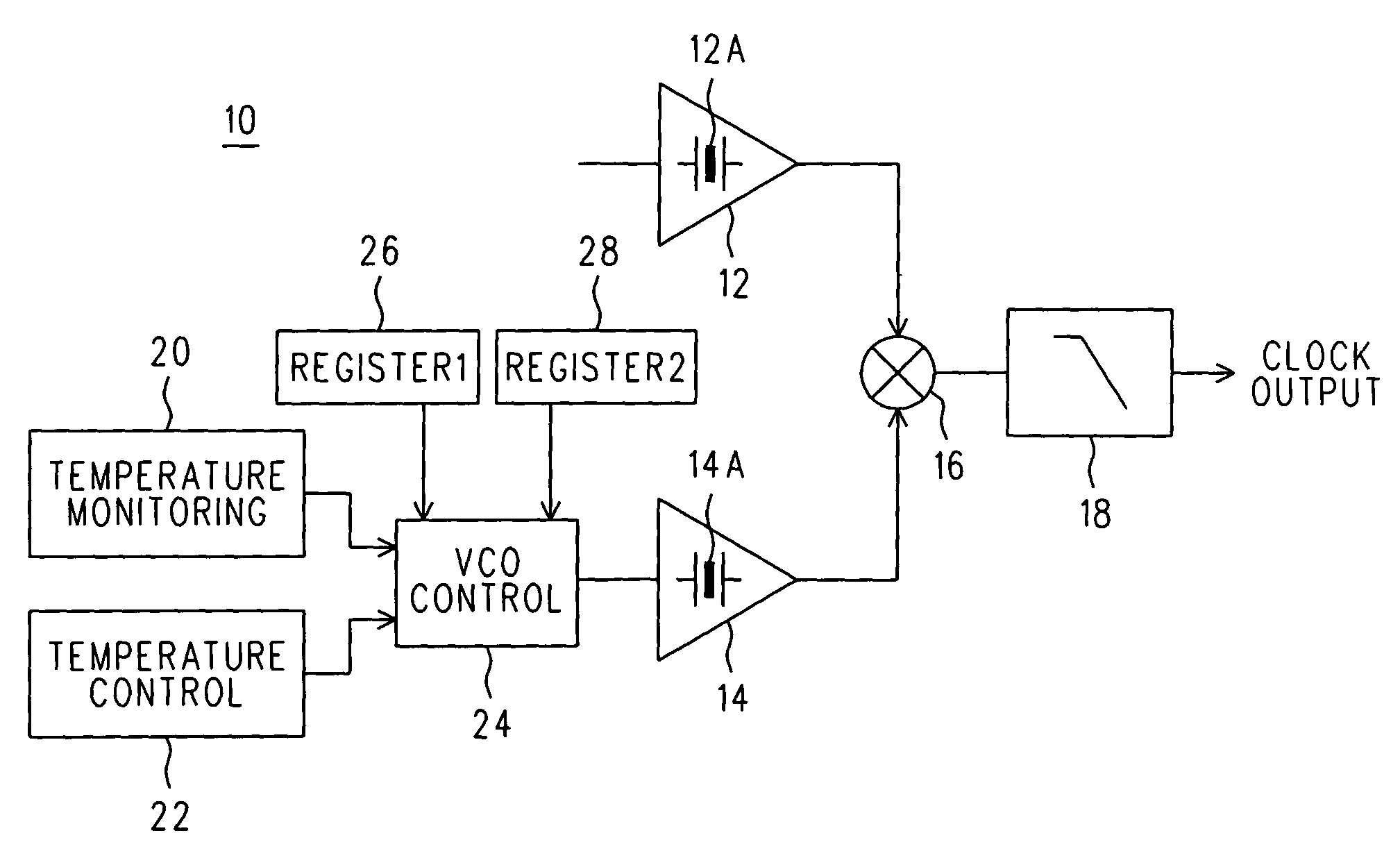

A first and a second resonator are fabricated monolithically adjacent to one another. The first resonator is the reference resonator. The resonant frequency of the second resonator is offset by a difference frequency Fo from the first resonator. Each resonator is included within an oscillator. A mixer receives the output of both oscillators. A low pass filter receives the mixer output and generates a clock signal whose frequency is equal to the difference frequency Fo.
First Claim
Other Claims data not available
