Method and apparatus for conditioning of cellular materials, in particular organic materials
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 8, 2011
Grant Date -
Jun 7, 2007
app pub date -
Dec 6, 2006
filing date -
Dec 6, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

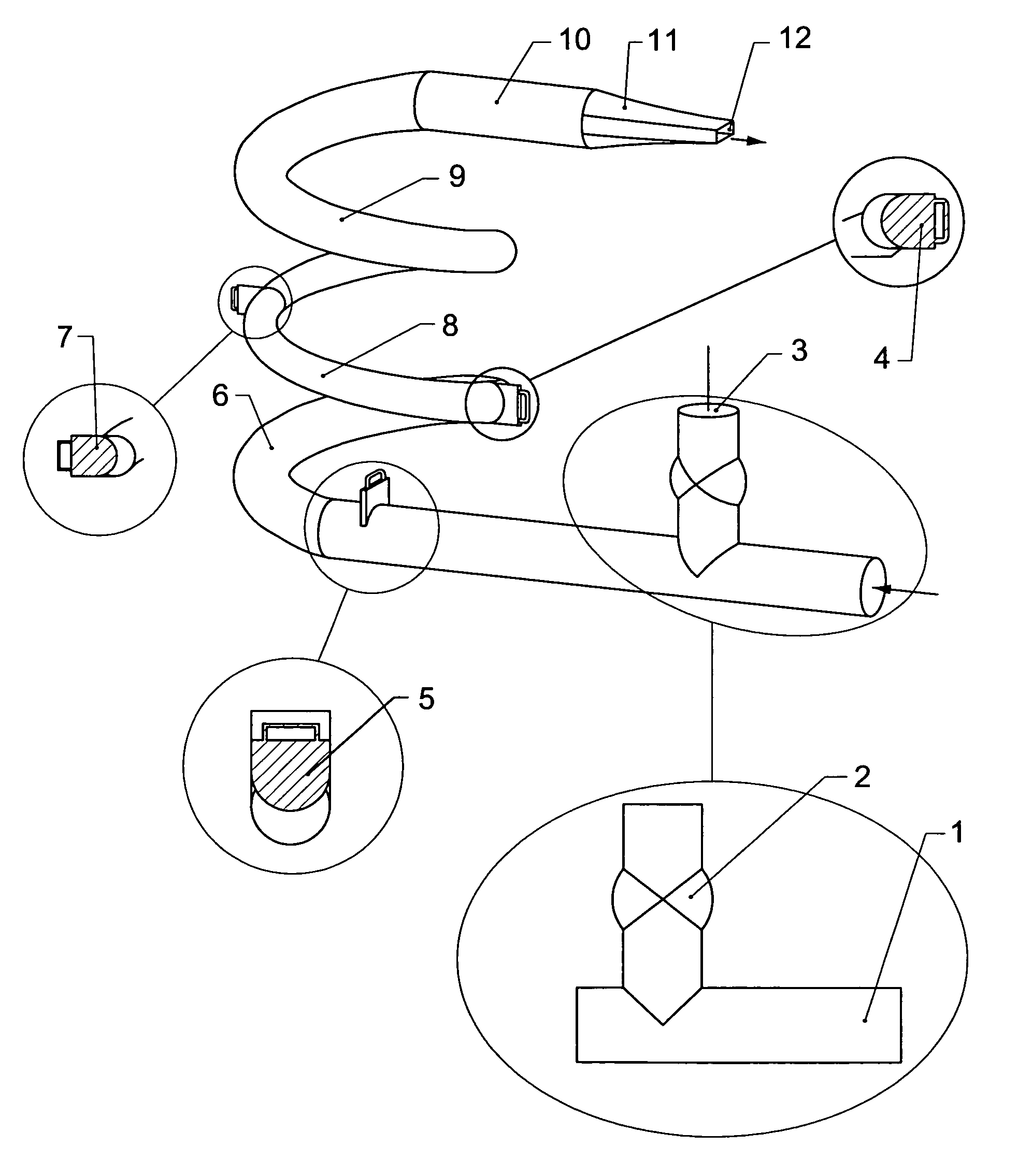

Method for conditioning of cellular materials, in particular organic materials, wherein the conditioned material is exposed to the thermodynamic medium. Further into the stream of the thermodynamic medium flowing in the channel (1, 6, 8, 9, 10), using the adjustable diaphragms (4, 5, 7) there are introduced turbulences increasing relative speed between conditioned material and thermodynamic medium. Invention further relates to the apparatus for conditioning of cellular materials, in particular organic materials, comprising inlet gate and supplying channel, conditioning channel and outlet, supplied from the source of the thermodynamic medium. Further the conditioning channel (6, 8, 9) has a spiral shape.
First Claim
Other Claims data not available
