Shaped catalyst body for partial oxidation reactions
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 1, 2011
Grant Date -
Dec 10, 2009
app pub date -
Oct 31, 2006
filing date -
Oct 31, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

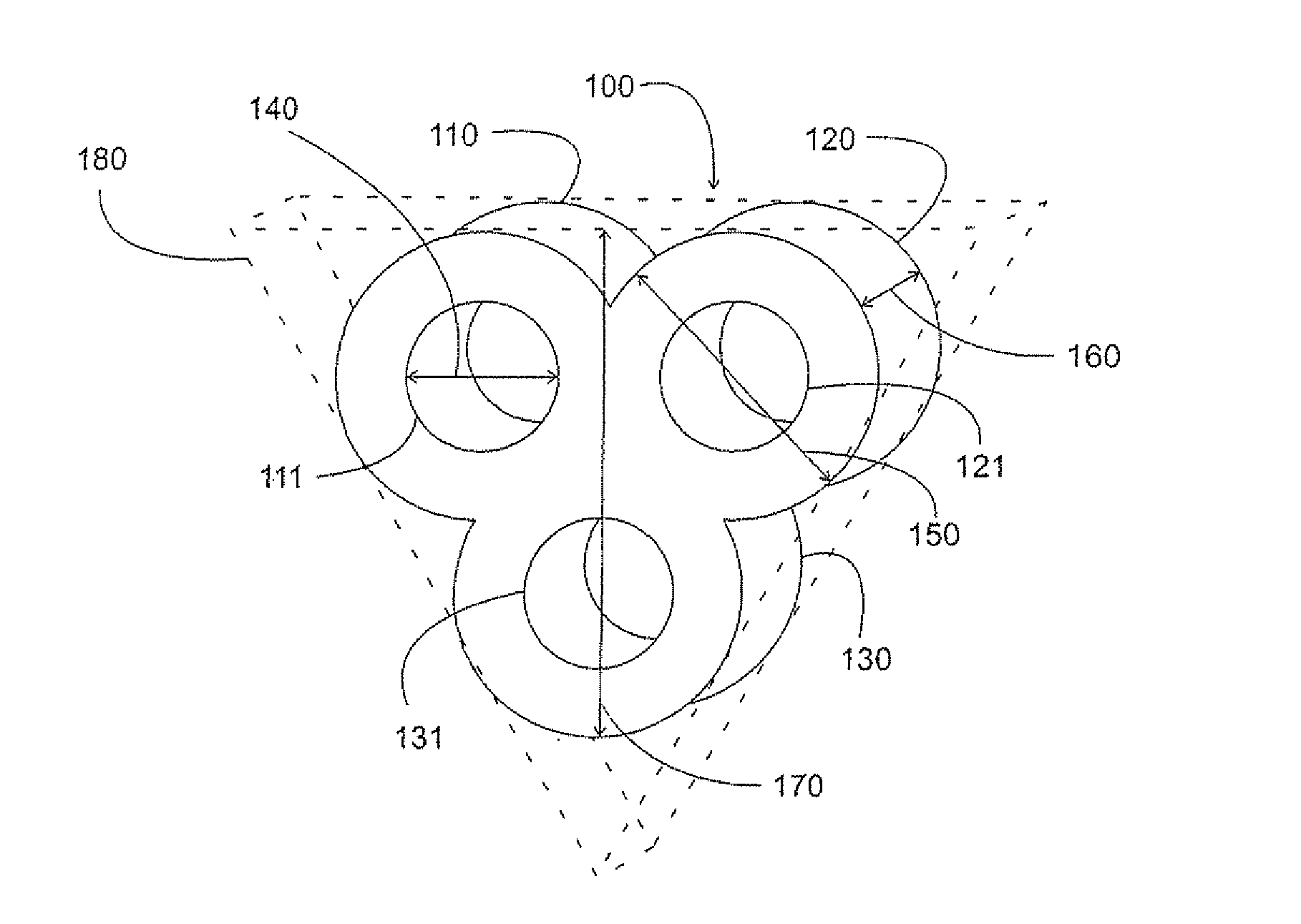

The invention relates to a shaped catalyst body for preparing maleic anhydride, which comprises mixed oxides of vanadium and of phosphorus as catalyst components. To develop a generic shaped catalyst body further so that it has improved properties, it is proposed that the basic geometric body enveloping the shaped catalyst body (100; 200) be a prism (180) having a first triangular face and a second triangular face and the shaped catalyst body (100; 200) be provided with three through openings (111, 121, 131; 211, 221, 231) which extend from a first face of the shaped body (100; 200) which contacts the first triangular face of the prism (180) to a second face of the shaped body (100; 200) which contacts the second triangular face of the prism (180).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 10 Citation Count
- B01J Class
- 6.34 % this patent is cited more than
- 14 Age
