Compression and storage of projection data in a computed tomography system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 25, 2011
Grant Date -
May 27, 2010
app pub date -
Jan 12, 2009
filing date -
Nov 26, 2008
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

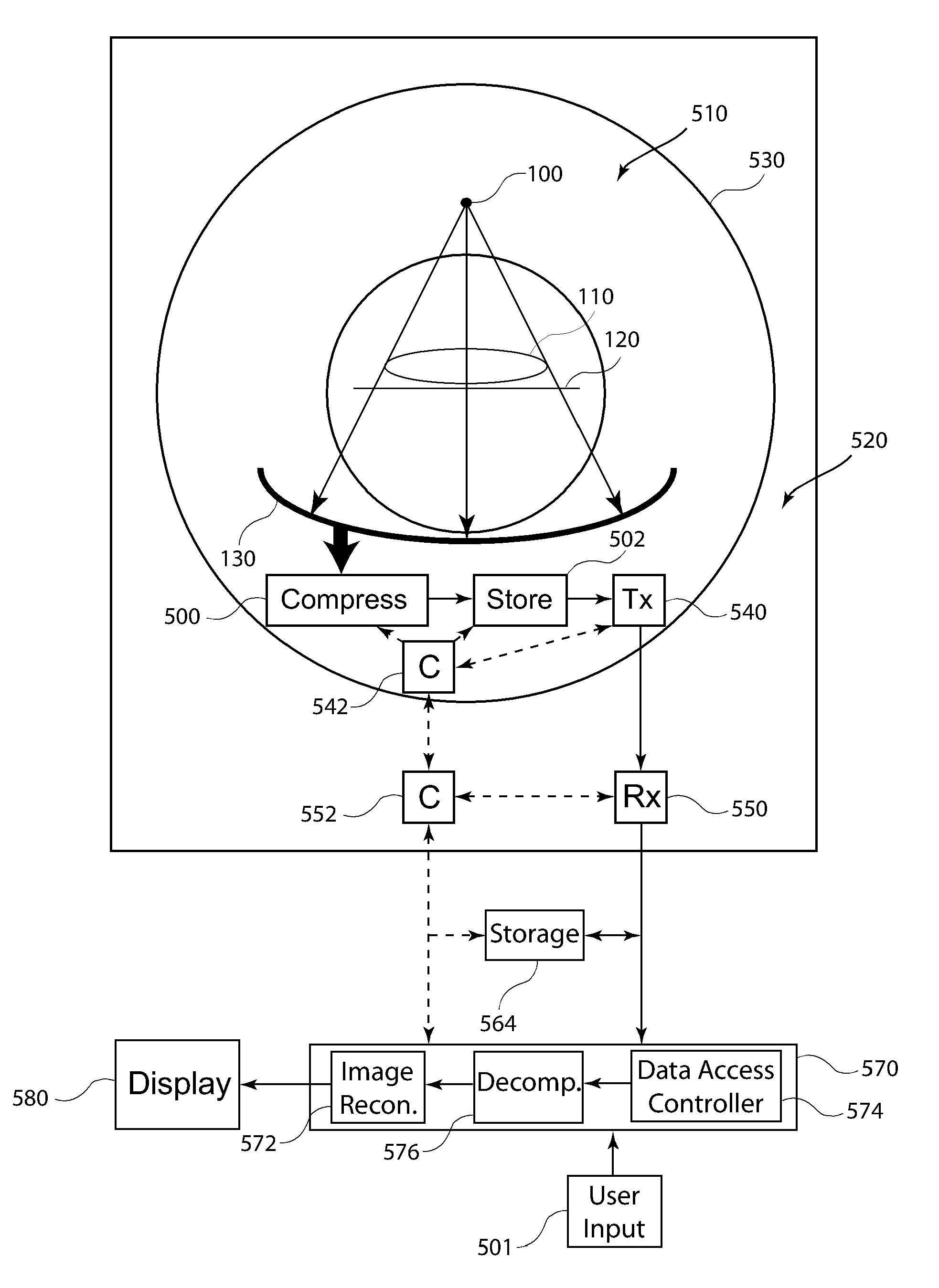

A computed tomography system has a stationary part, a rotatable part mounted for rotation around an object to be examined and an interface between the stationary part and the rotatable part. The rotatable part includes an x-ray source, a sensor array for detecting x-rays passing through the object to produce projection data samples, a compressor that compresses the projection data samples and a storage device that stores the compressed samples. The storage device on the rotatable part can include one or more solid state drives. For image reconstruction, the compressed samples are retrieved from the storage device, transferred across the interface to the stationary part. A decompressor at the stationary part decompresses the received compressed samples and provides decompressed samples to the image reconstruction processor. This abstract does not limit the scope of the invention as described in the claims.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G06K Class
- 2.05 % this patent is cited more than
- 14 Age
