Index apparatus for NC machine tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 18, 2011
Grant Date -
Dec 17, 2009
app pub date -
Jun 18, 2007
filing date -
Jun 20, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

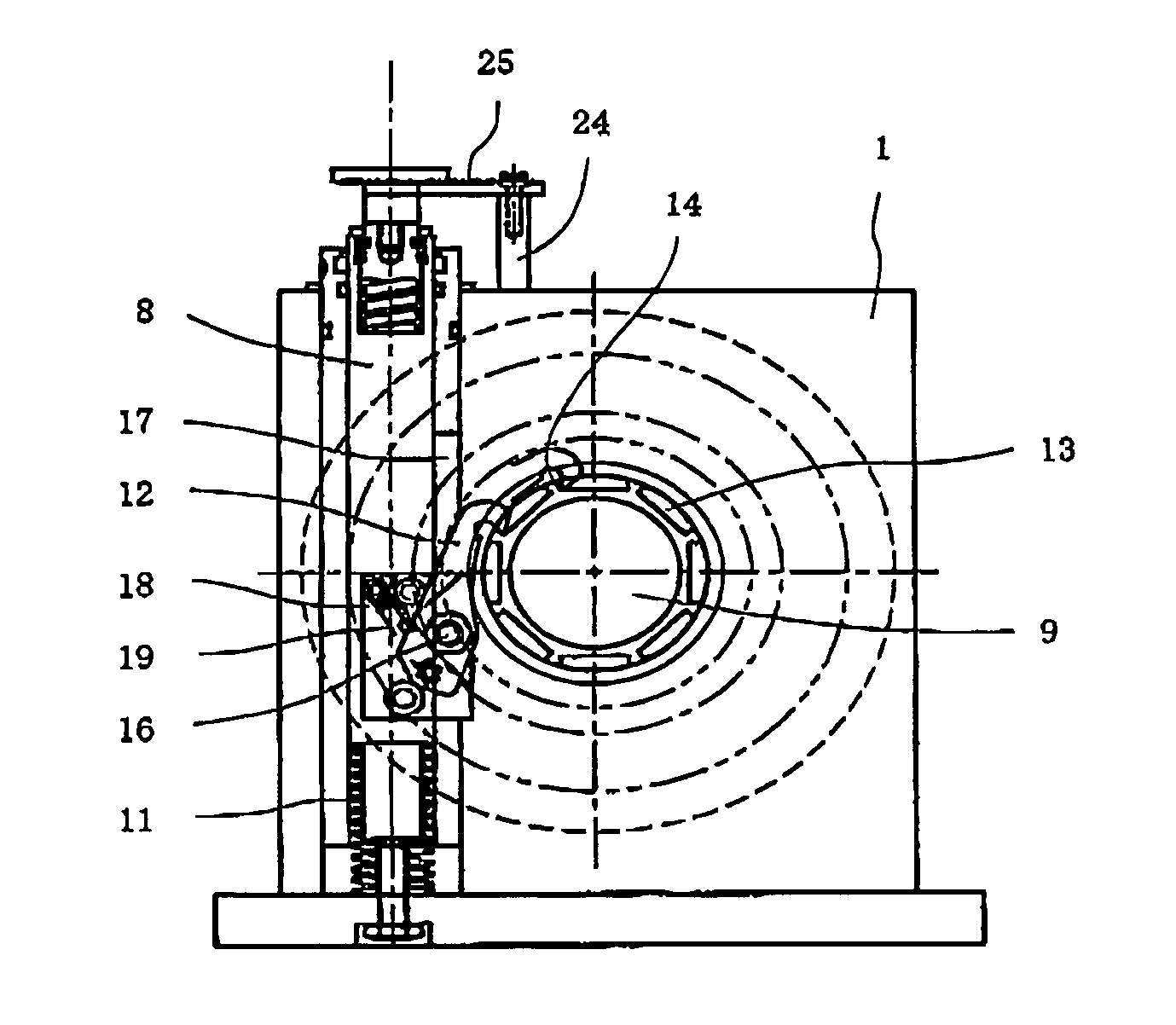

A push-bar indexing device that, when an index table is rotated by a specific angle, the table is accurately stopped to accurately index a workpiece. Each time a push bar is moved, a stopper is moved to a predetermined position by excessive relative movement between a spindle and a main table. An engagement member is operatively associated with the index table, which causes the engagement member to be rotated by a specific angle each time the index table is rotated. This allows the engagement member to be engaged with the stopper of a predetermined position, causing the index table to be stopped by the stopper.
