Cold-cathode light-emitting device with defocusing grid and associated methods of manufacturing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 11, 2011
Grant Date -
Jun 22, 2006
app pub date -
Dec 16, 2005
filing date -
Dec 16, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

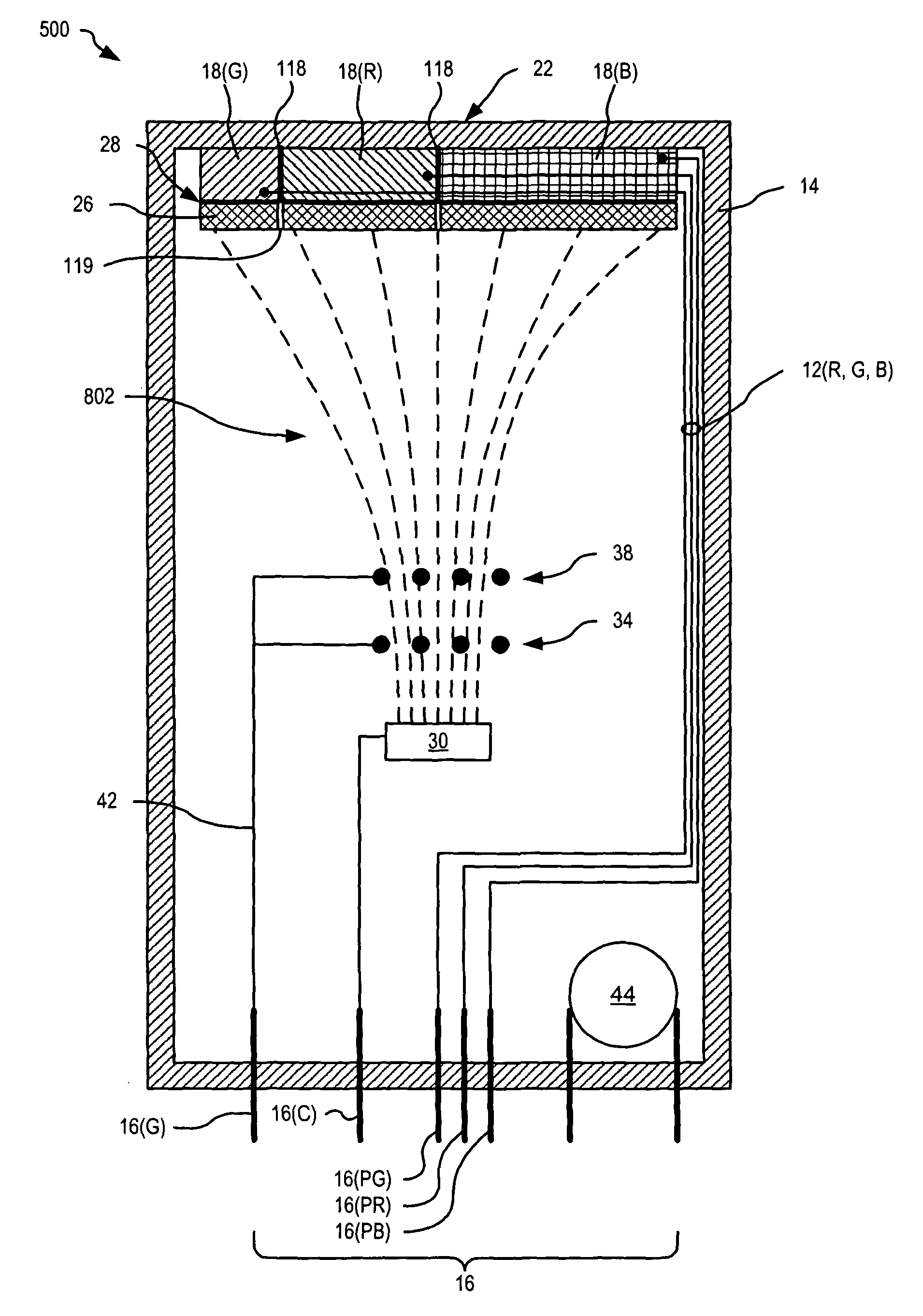

A light emitting device has an enclosure with a face portion, a cold cathode within the enclosure, a phosphor layer disposed on an interior surface of the face portion, an extracting grid between the cold cathode and the phosphor layer and a defocusing grid between the extracting grid and the phosphor layer. Electrons emitted from the cold cathode are defocused by the defocusing grid and impact the phosphor layer when an electric field is created between the cold cathode and the phosphor layer due to applied voltages at the cold cathode, extracting grid, defocusing grid and phosphor layer. The phosphor layer emits light through the face portion in response to electrons incident thereon. Secondary electron emission may also occur resulting in increased electron impact upon the phosphor layer, thereby increasing light output. A mirror layer may be included to reflect light toward the face portion of the light emitting device. The mirror layer also inhibits low energy electrons from impacting the phosphor, thereby enhancing the blink rate of the light emitting device.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H01J Class
- 6.29 % this patent is cited more than
- 14 Age
