Combination aromatic nebulizing diffuser and color light set assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 4, 2011
Grant Date -
Apr 7, 2011
app pub date -
Oct 5, 2009
filing date -
Oct 5, 2009
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

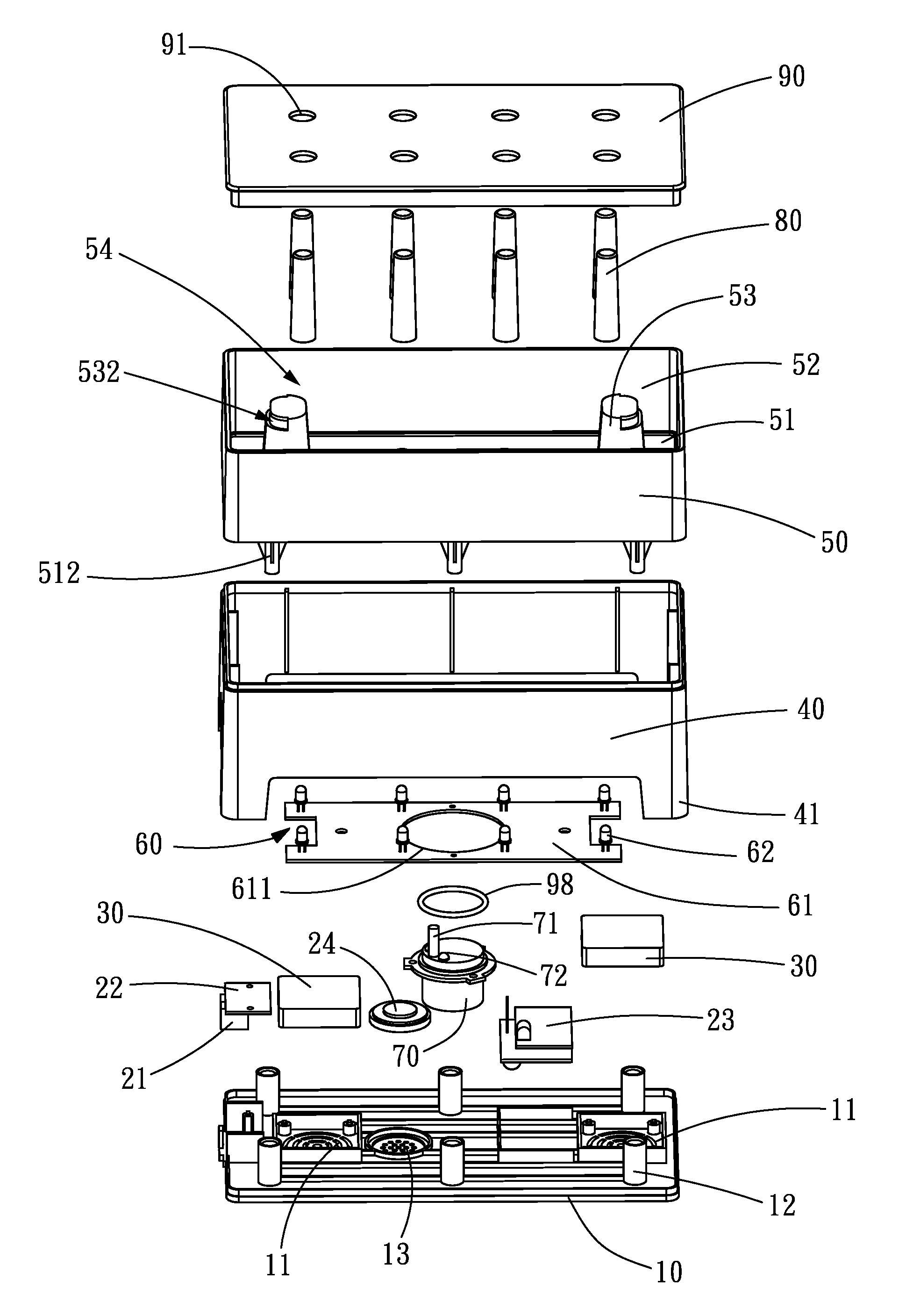

An aromatic nebulizing diffuser and color light set assembly includes a fluid container, a base panel carrying two electric fans beneath the fluid container for drawing in outside air, an oscillator for causing automation of an aromatic fluid in the fluid container, a color light set for emitting color light upwardly toward the inside of the fluid container, a power adapter mounted on the base panel for providing the electric fans, the oscillator and the color light set with the necessary working voltage, a shell supporting the fluid container on a flat surface, light guide tubes mounted in the fluid container for condensing emitted color light from the color light set into vertically extending color light beams, and a slotted cover covering the top side of the fluid container.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 16 Citation Count
- F21V Class
- 48.82 % this patent is cited more than
- 14 Age
