Pick-up device for picking up a tubular knitted article from a circular knitting machine for hosiery or the like and for transferring it to a unit adapted to perform additional work on the article
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 4, 2011
Grant Date -
Dec 23, 2010
app pub date -
Feb 20, 2009
filing date -
Mar 10, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

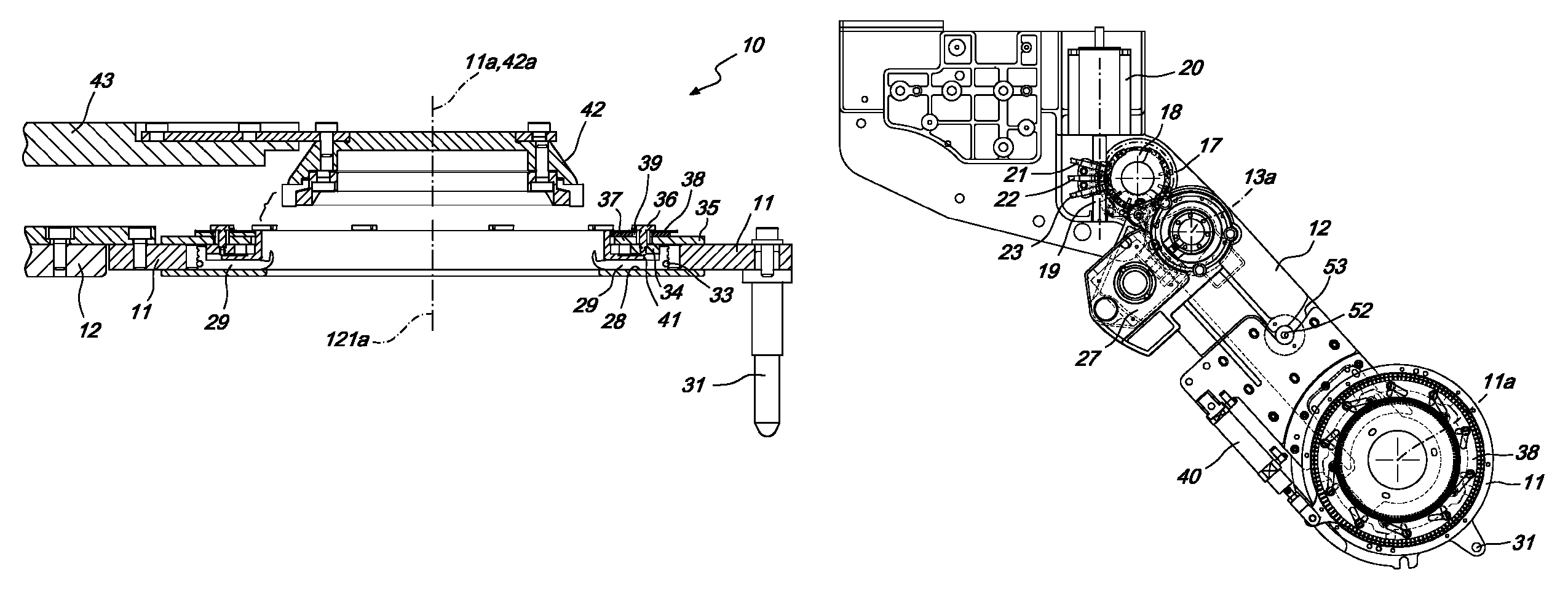

A pick-up device for picking up a tubular knitted article from a circular knitting machine for hosiery and for transferring the article to a unit adapted to perform additional work thereon. The device comprises an annular pick-up body that supports pick-up members that can slide with respect to the pick-up body along radial directions. The pick-up body can be arranged coaxially around the needle cylinder of a circular knitting machine for hosiery so that each one of the pick-up members faces laterally a needle of the machine. The end of each one of the pick-up members that is directed toward the axis of the pick-up body has a seat that can engage a region of the stem of the needle that is arranged proximate to the latch of the needle on the opposite side with respect to the head of the needle. The device comprises actuation elements formed by elastic elements that act on the pick-up members for their sliding toward the axis of the pick-up body and radial pushers that act on the pick-up members for their sliding away from the axis of the pick-up body in contrast with the action of the elastic elements.
First Claim
Other Claims data not available
