Convertible vehicle with a roof that is capable of opening separately
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 20, 2011
Grant Date -
Nov 5, 2009
app pub date -
Dec 6, 2005
filing date -
Dec 16, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

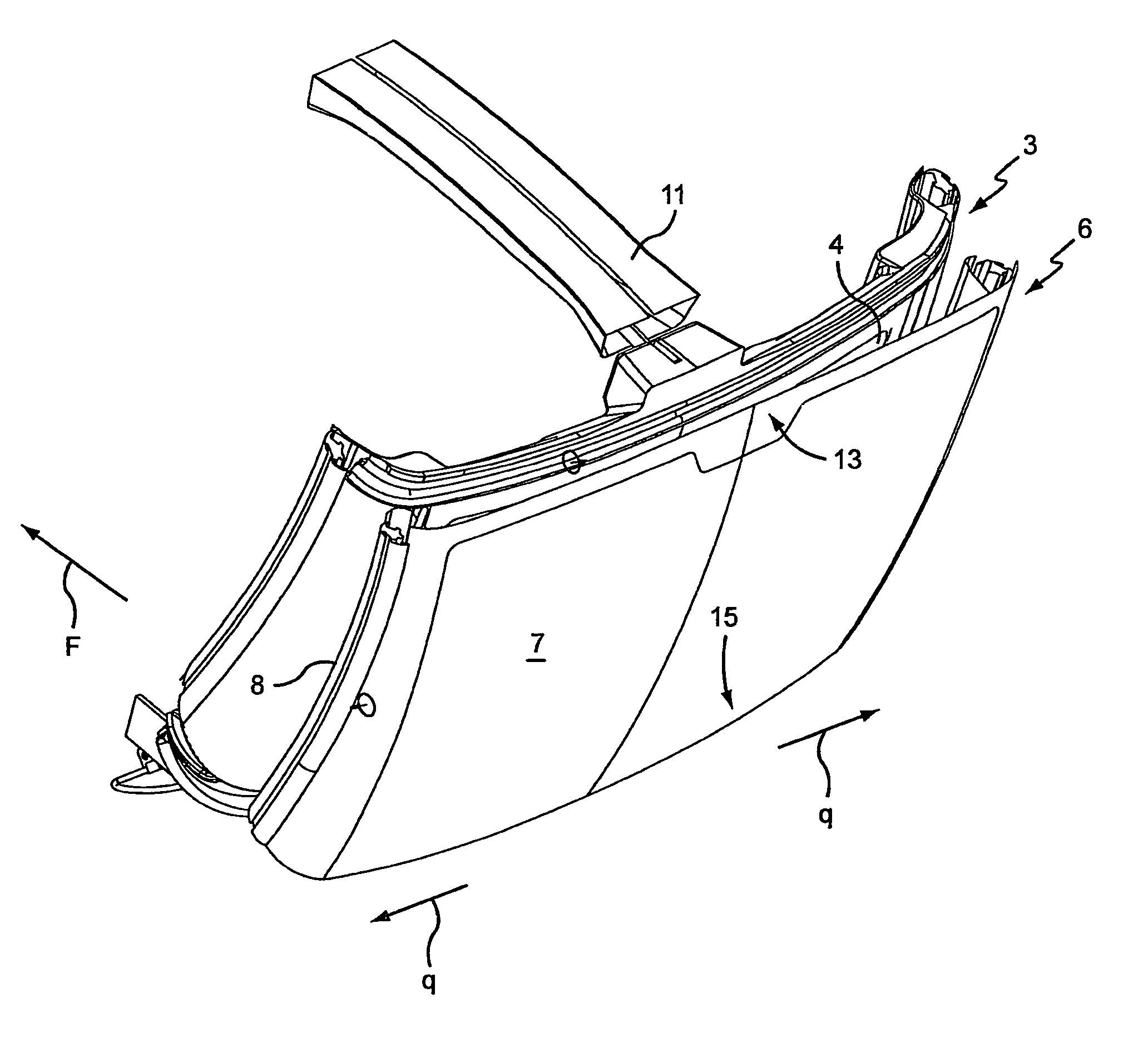

The invention relates to a convertible vehicle with at least two roof sections; that, when the roof is closed, are situated one behind the other with regard to the direction of travel (F), of which, when roof section that is situated behind the other section when the roof is closed, at least one separately openable part of the or a roof section, which is situated in front of roof section, can be displaced with a component pointing toward the rear, and the convertible vehicle is ready to be driven when the roof sections are in this position. The convertible vehicle is designed in such a manner that the or each separately openable part, when in its closed position, extends in a transversal direction (q) of the vehicle up to the outer edge of the respective roof section, abuts against at least one upper edge of a side window and at least when closed, is supported on a longitudinal beam placed in the vicinity of a vertical longitudinal center plane (E) of the vehicle and between the windshield frame and a rear roof section.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| DE | B4 | DE102004060504 | Dec 16, 2004 |
| EP | B1 | EP1827884 | Dec 06, 2005 |
| WO | A1 | WO2006063557 | Dec 06, 2005 |
