Integrated tilt/sash lock assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 20, 2011
Grant Date -
Sep 13, 2007
app pub date -
Jul 26, 2006
filing date -
Nov 7, 2001
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

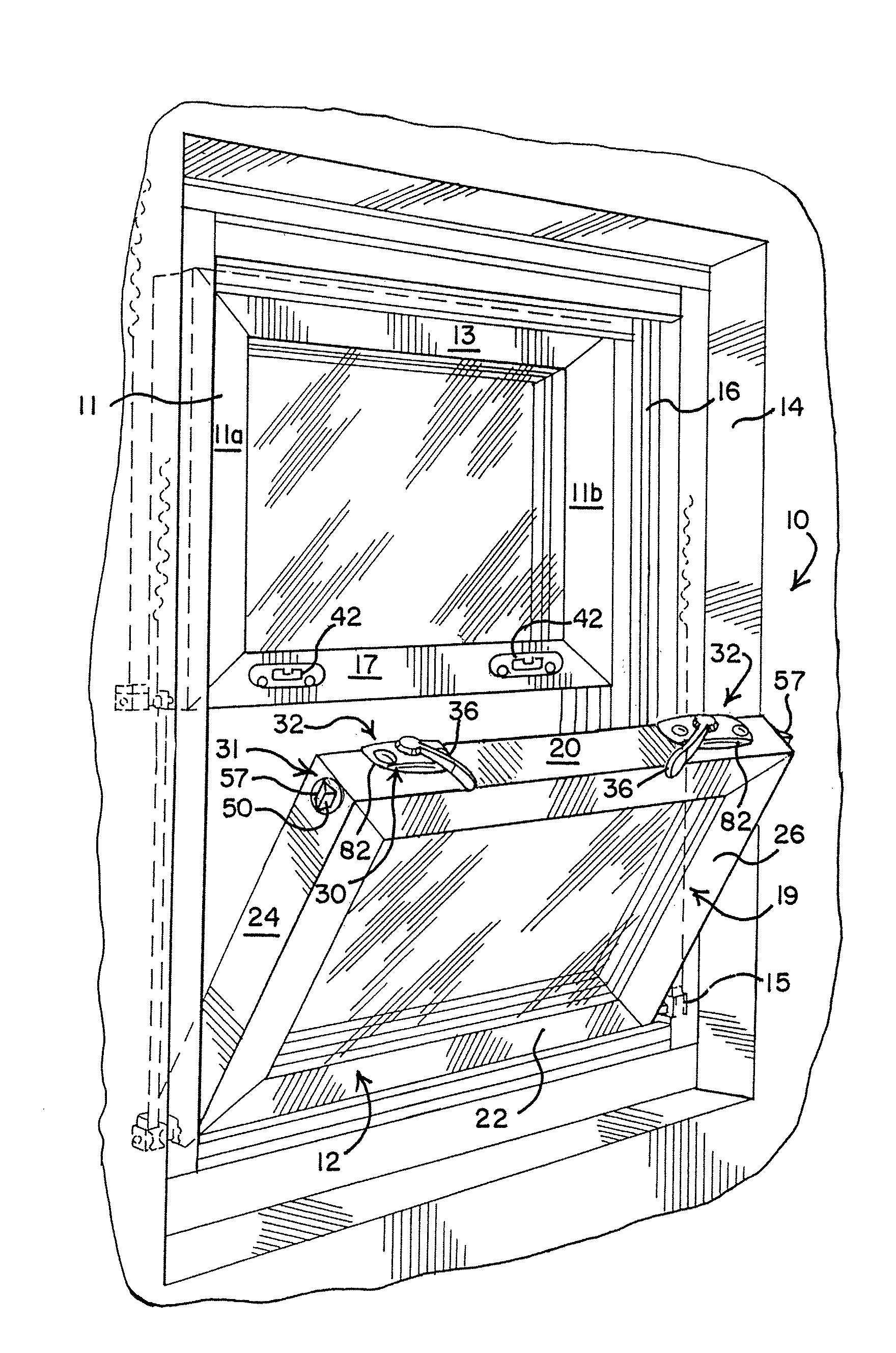

An integrated sash lock and tilt latch assembly is mounted in a sash window having a top rail, a base, and two stiles connected together at their extremities. The integrated assembly contains a sash lock mechanism, a tilt latch mechanism, and a connector. The sash lock mechanism includes an actuator movable to adjust the assembly among a locked position, an unlocked position, and a tiltable position, and a rotor coupled to the actuator. The tilt latch mechanism includes a tilt latch housing supported by the top rail and a latch bolt slidably supported by the tilt latch housing and moveable between an extended position and a retracted position. At least a portion of the tilt latch housing has a generally circular cross-section. The connector has a first end of operably coupled to the latch bolt and a second end operably coupled to the sash lock mechanism.
First Claim
Other Claims data not available
