Anti-roll back assembly with linear magnetic positioning
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 20, 2011
Grant Date -
May 26, 2011
app pub date -
Nov 20, 2009
filing date -
Nov 20, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

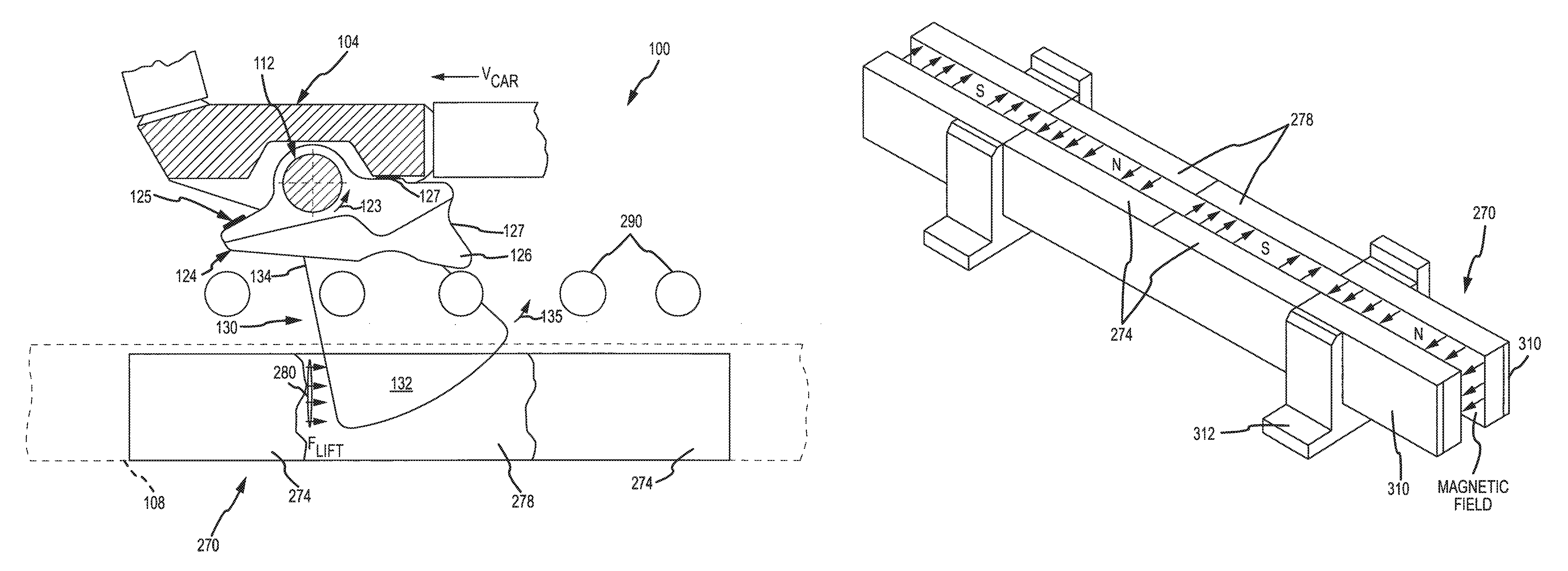

An anti-roll back (ARB) assembly for use with vehicles that ride on a track, which has inclined portions that include a set of ARB or lift pins. The assembly includes a linear magnet assembly positioned along the track in the ARB portion, and this assembly includes spaced apart magnet arrays that define a slot or elongated magnetic force zone. The ARB assembly includes an ARB element with a body pivotally supported on a vehicle frame and further includes an electrically conductive reaction plate supported on the vehicle frame, and the plate passes through the magnet assembly slot when the vehicle travels on the track. The reaction plate is connected to the ARB body to pivot it in response to displacement of the reaction plate in response to magnetic forces to rotate it up into a suspended position in which the ARB body is spaced apart from the ARB pins.
First Claim
Other Claims data not available
