Pressure gauge

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 8020450
APP PUB NO 20100011870A1
SERIAL NO

12504247

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

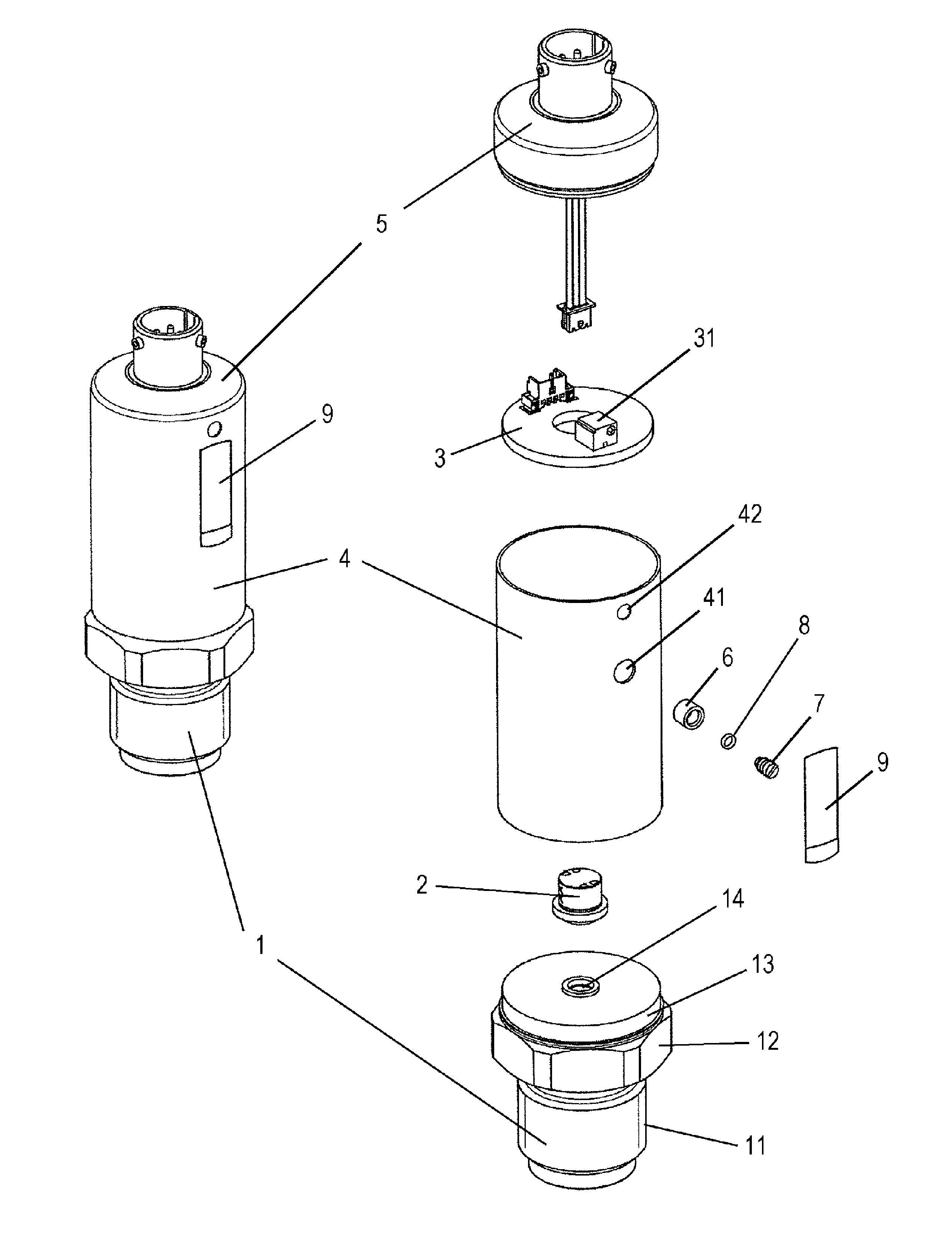

The invention relates to a pressure gauge having a cylindrical housing to which a bushing is fixed, which penetrates the housing. The pressure gauge is furthermore provided with a pressure sensor together with an allocated electronic evaluation unit, said sensor is operatively connected to a pressure port coaxially positioned to the longitudinal axis of the housing. A turnable adjustment pin to engage with an adjustment device of the electronic evaluation unit in the pressure gauge is accommodated in the bushing in a liquid-proof manner, and is equipped with holding means by means of which it is undetachably secured to the bushing.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
WIKA ALEXANDER WIEGAND GMBH & CO KG63911 KLINGENBERG

International Classification(s)

loading....
  • 2009 Application Filing Year
  • G01L Class
  • 608 Applications Filed
  • 404 Patents Issued To-Date
  • 66.45 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances20092010201120122013201420152016201720182019202020210255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Glaab, Holger Goldbach, DE 4 21
Landwehr, Horst Hanau, DE 4 42

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 3 Citation Count
  • G01L Class
  • 6.53 % this patent is cited more than
  • 14 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges19176571713611101 - 1011 - 2021 - 3031 - 4041 - 5051 - 6071 - 8081 - 900102030405060708090100110120130140150160170180190

Forward Cite Landscape

Load Citation
