Device for fixing a vacuum pump
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 13, 2011
Issued Date -
N/A
app pub date -
Aug 27, 2003
filing date -
Aug 29, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

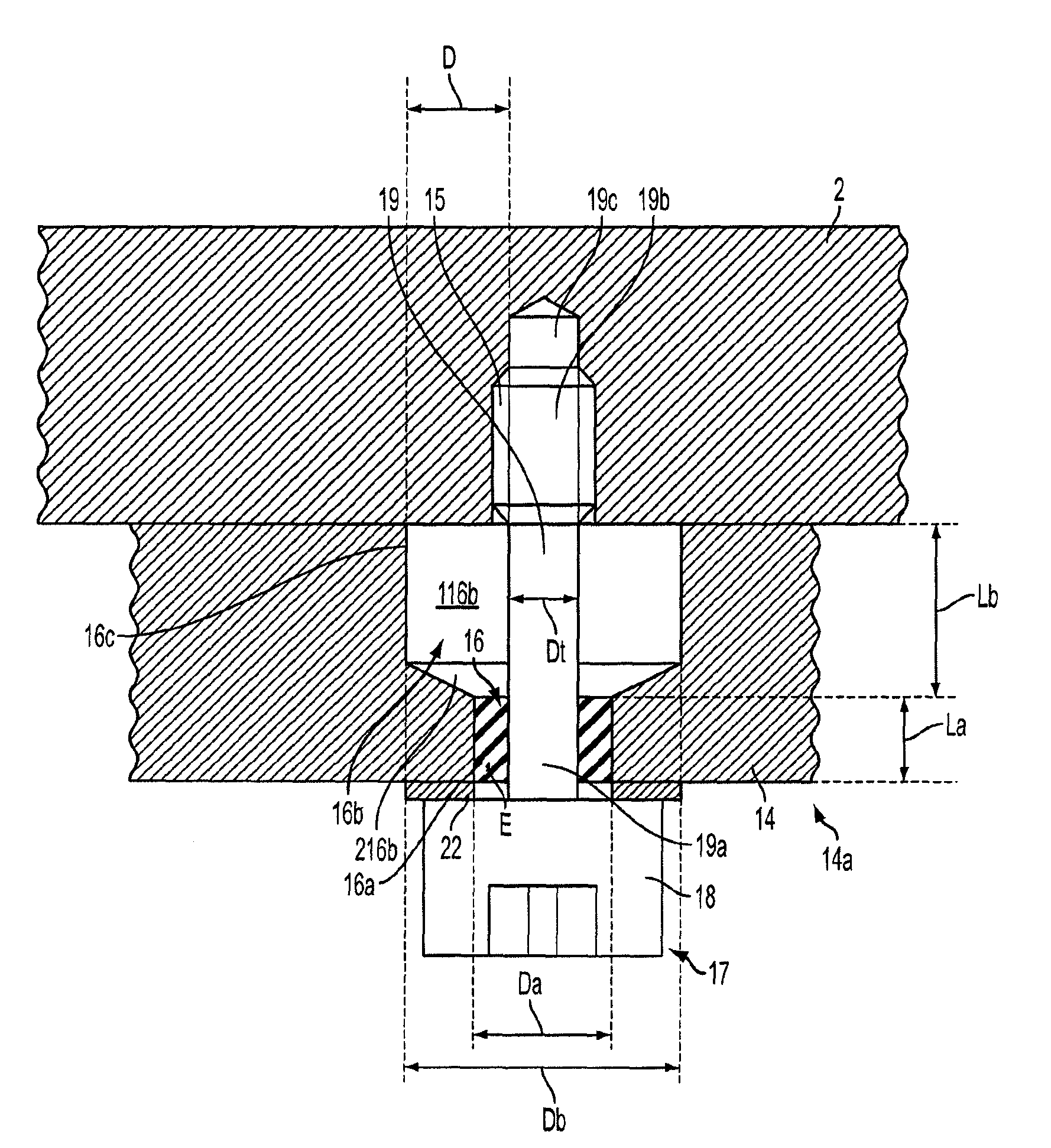

A fastener system with a coaxial annular flange (14) having through holes (16), each serving to pass a screw (17) for screwing into an associated tapped hole (16) in the wall (2) of a stationary structure. Each through hole (16) has a circularly cylindrical distal segment (16a) followed by an enlarged proximal segment (16b) adjacent to the wall (2) of the stationary structure, allowing the shank (19) of the screw to bend and enabling a corresponding lateral offset (D). This prevents the screw (17) rupturing under high shear forces due to accidental destruction of a vacuum pump rotor while rotating at full speed.
