Hot gas generator and drying or dehydration facility implementing such a generator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 6, 2011
Grant Date -
Jul 1, 2010
app pub date -
Jun 18, 2007
filing date -
Jun 22, 2006
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

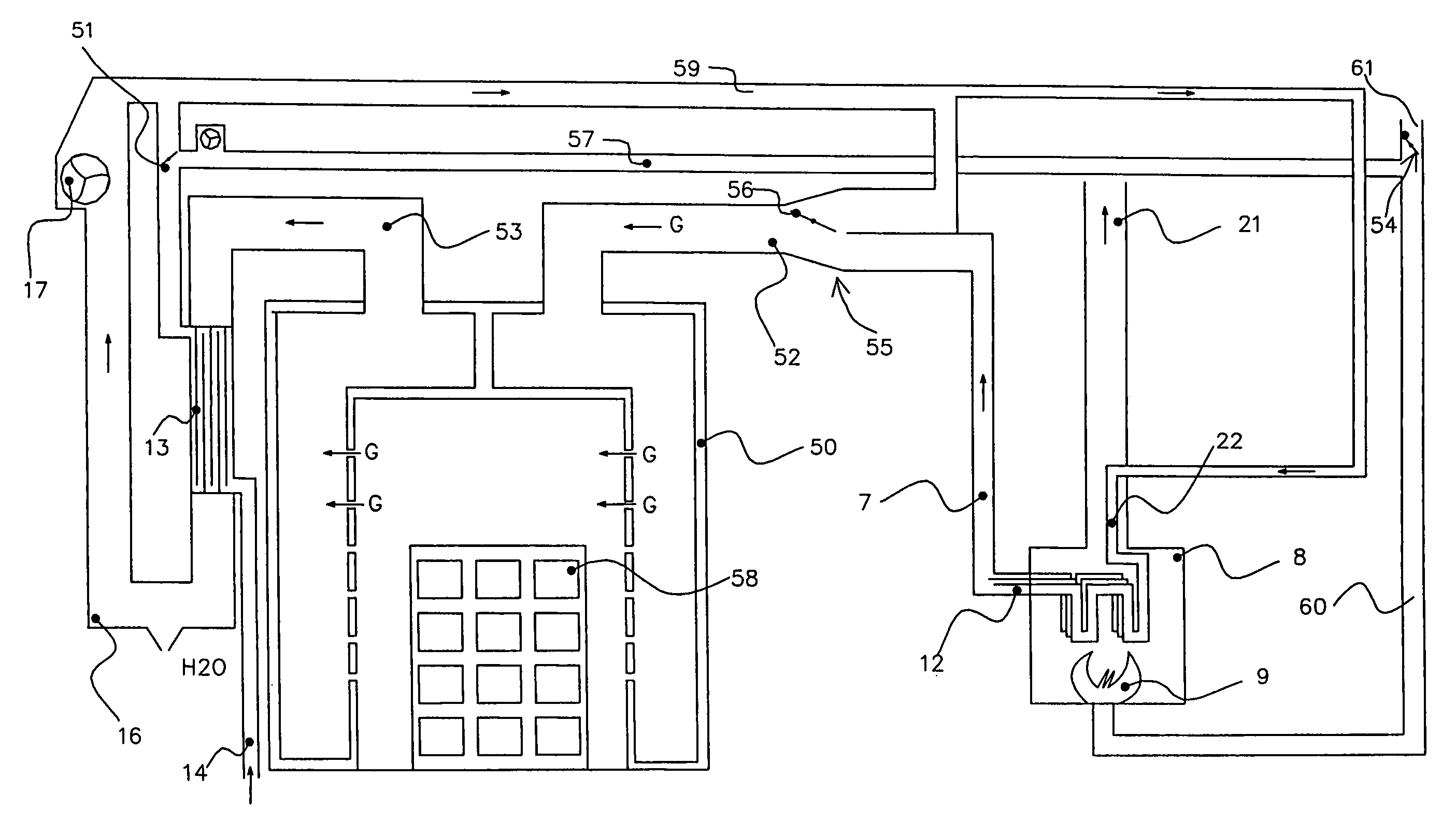

The subject of the invention is a hot gas generator (8), particularly for a dehydration or drying unit, the generator comprising a burner or hearth (9) and being characterized in that it comprises at least one exchange circuit (10) comprising at least one pipe through which the gas to be heated flows, the pipe comprising a cool gas inlet end (11) and a hot gas discharge outlet (12), the pipe having a surface for heat exchange between the combustion gases generated by the burner or hearth (9) and the gas to be heated which flows through the pipe, the pipe also providing a physical barrier between the heated gases and the combustion gases generated by the burner or hearth. Application to producing a drying or dehydration installation.
First Claim
Other Claims data not available
