Hearing aid with digital compression recapture
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 30, 2011
Grant Date -
Jun 28, 2007
app pub date -
Jul 11, 2006
filing date -
Dec 5, 2000
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

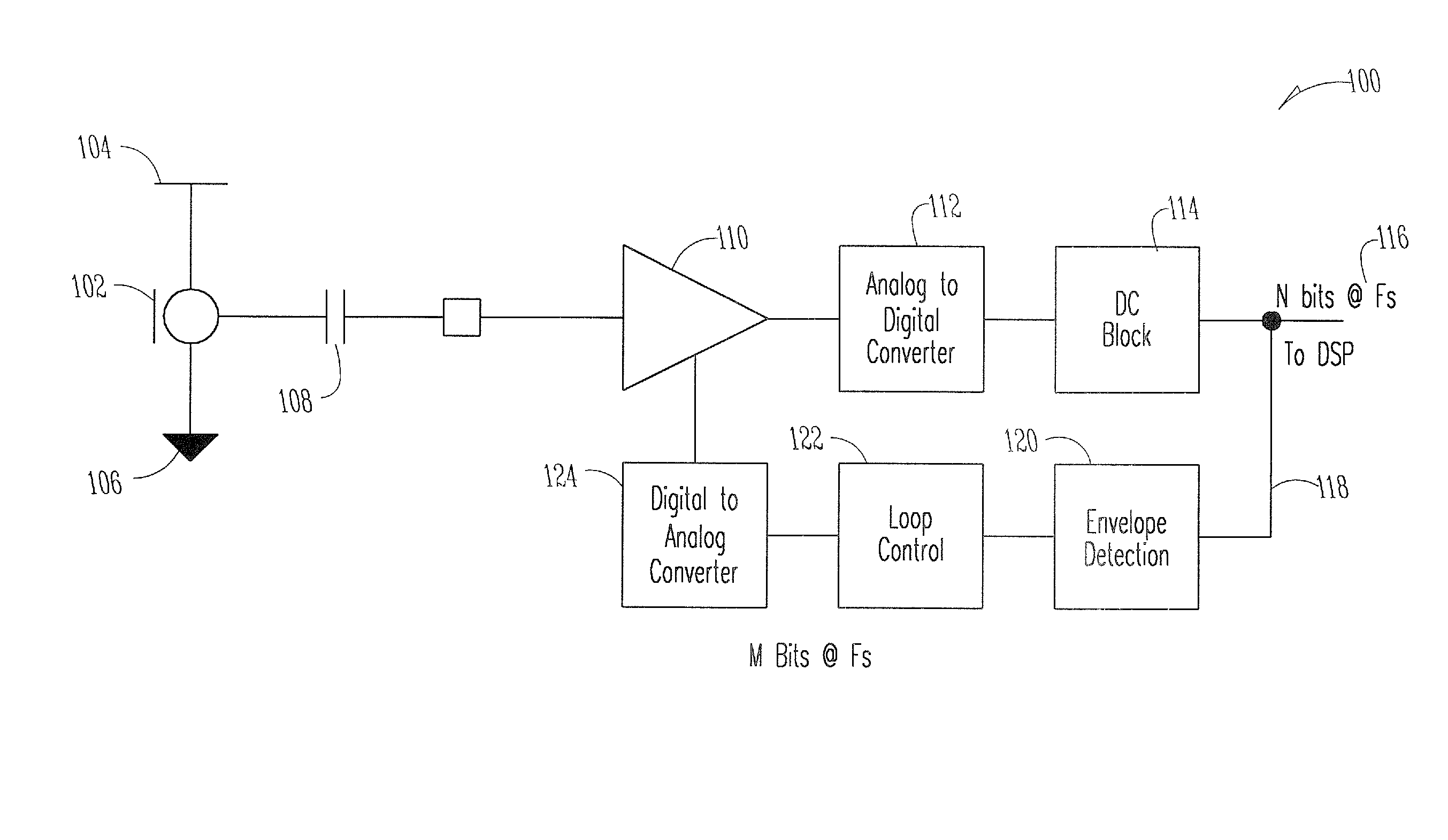

Systems, devices, and methods are provided to inhibit apparent amplitude modulation in non-linear processing that causes distortion in a processed signal. One aspect of the invention includes a hearing aid. The hearing aid includes a microphone to receive an input signal, a speaker to reproduce the input signal, and a processor. The processor processes the input signal using a gain. The processor includes an inhibitor, which inhibits distortions, and an adjuster, which adjusts the gain. The inhibitor acts to smooth an envelope of the input signal to inhibit undesired modulation. The adjuster adjusts the gain if the envelope is either above or below a threshold. The hearing aid further includes a compression recapture system to supply the compressed portion of the input signal to more closely reproduce the actual input signal.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H04R Class
- 3.98 % this patent is cited more than
- 14 Age
