Radiation scanning units including a movable platform
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 16, 2011
Grant Date -
Mar 12, 2009
app pub date -
Apr 7, 2008
filing date -
Jul 24, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

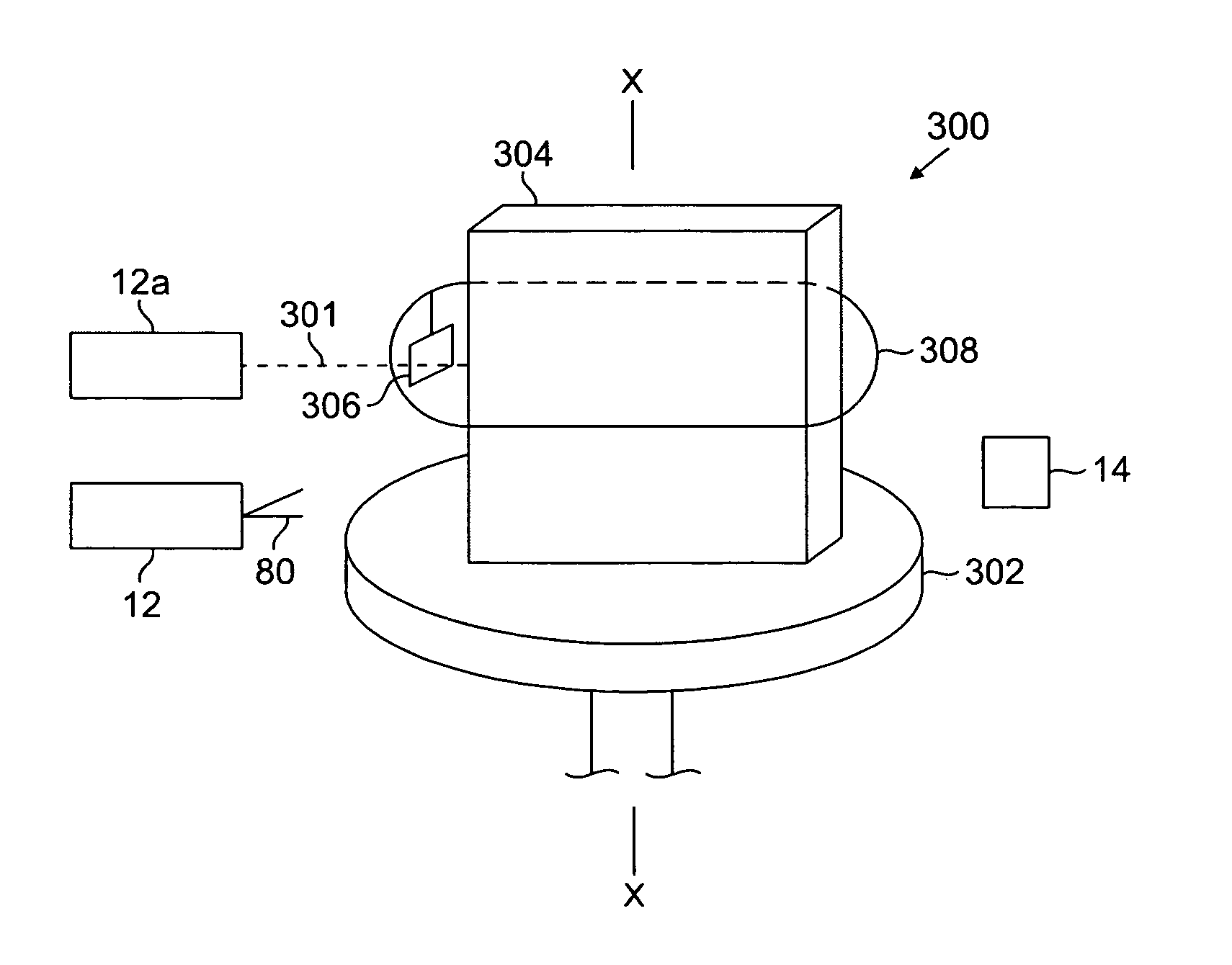

A scanning unit for inspecting objects comprises in one example a radiation source, a movable platform to support an object, and a detector positioned to receive radiation after interaction of radiation with the object. The platform is movable at least partially within a cavity defined, at least partially, below at least one of the source or the detector. In another scanning unit, a first conveyor conveys an object to a movable platform, and second and third conveyors convey the object from the platform. The second and third conveyors are at different vertical heights. In another scanning unit, images from an energy sensitive detector and a spatial detector are fused. In a method, scanning parameters during CT scanning are changed and images reconstructed before and after the change. In another method, an object is scanned with X-ray beams having first and second energy distributions, generated by the same X-ray source.
First Claim
Other Claims data not available
