Hard surface-veneer engineered surfacing tiles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 9, 2011
Grant Date -
Jul 13, 2006
app pub date -
Apr 28, 2004
filing date -
Apr 28, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

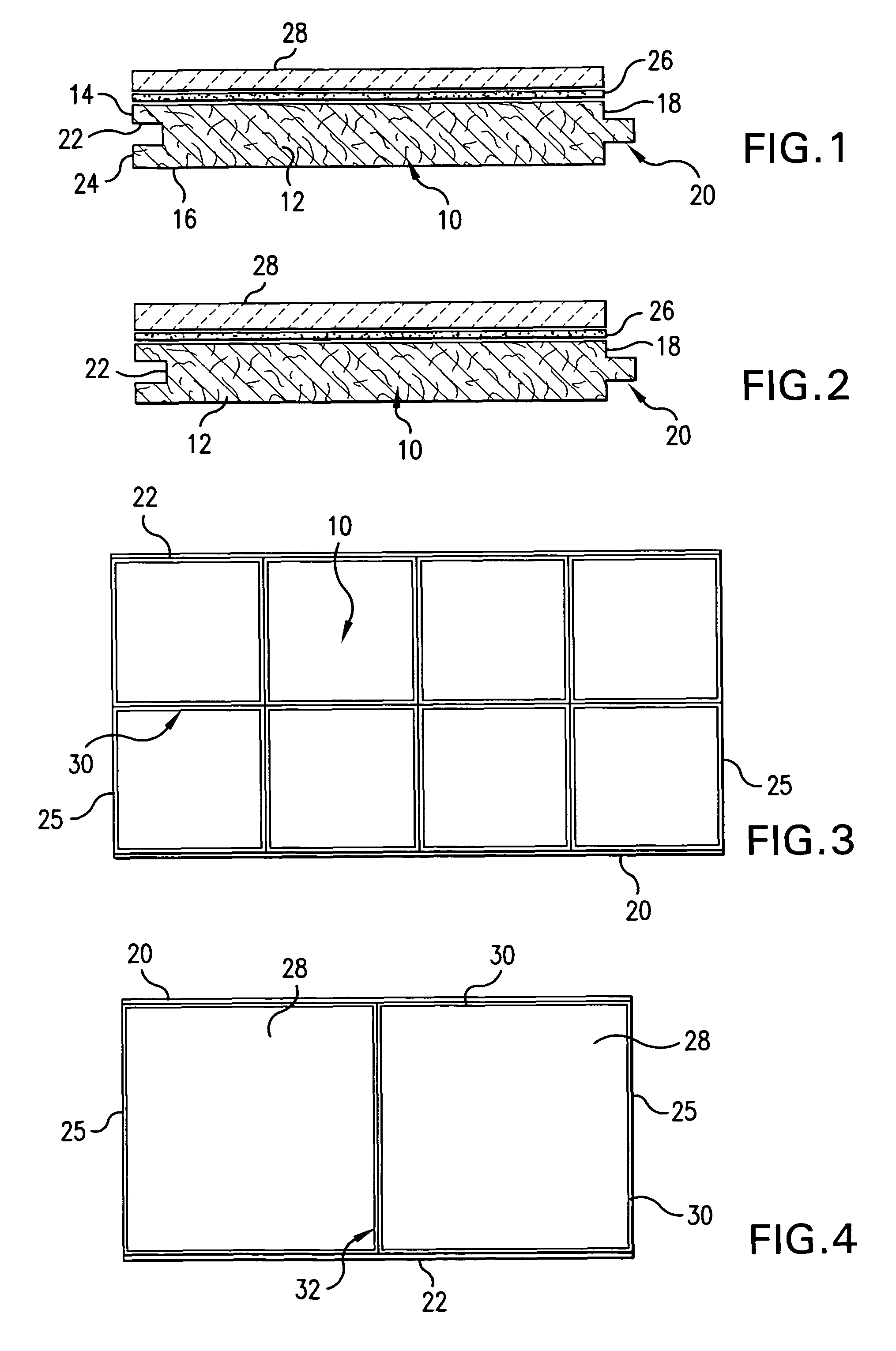

A modular tile assembly having a substantially rigid substrate, at least one sealant layer, and at least one stone, ceramic, or porcelain tile. A bottom surface of a first sealant layer being bonded to an upper surface of the substrate and a top surface of a second sealant layer being bonded to a lower surface of the substrate. The tile being bonded to at least a portion of the top surface of the first sealant layer. In one example, the substrate is provided with a tongue or a groove defined in any one, combination, or each of the respective side edges of the substrate, as desired.
First Claim
Other Claims data not available
