Powder based granules disintegrating and sizing device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 9, 2011
Grant Date -
Jan 29, 2009
app pub date -
Feb 26, 2007
filing date -
Feb 27, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

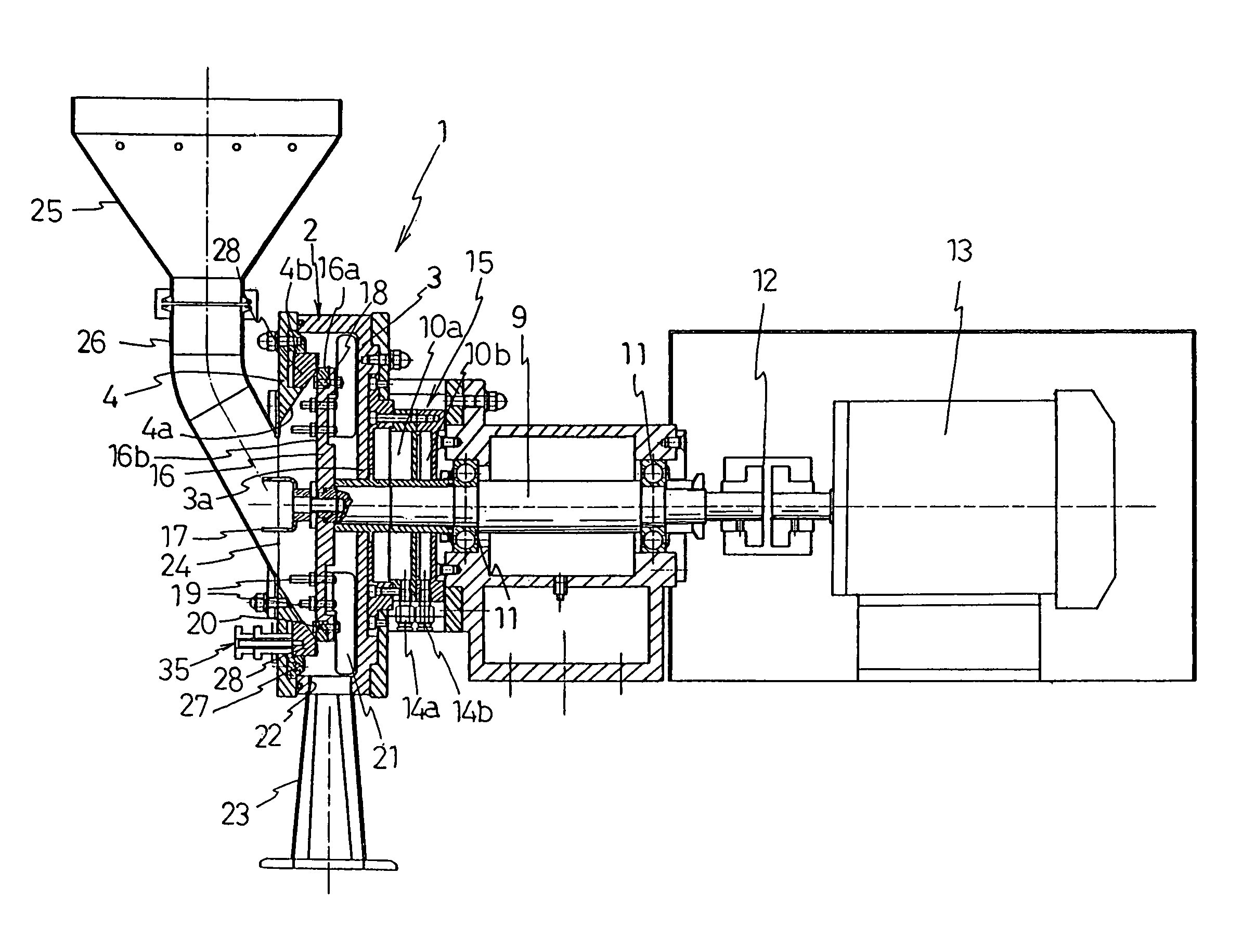

A powder based granules disintegrating and sizing device having a drive shaft in a horizontal direction inside a casing, a rotor fixed to the drive shaft, a sizing stator having an inclined surface, a gap section A where the powder based granules settles being formed by the plate surface of the rotor and the inclined surface of the sizing stator, and a disintegrating and sizing section B being formed by the narrowest gap section between the circumferential edge of the rotor and the sizing stator. The drive shaft is supported in a cantilever fashion, the rotor is fixed to an open side end portion thereof, the sizing stator is installed over the whole circumference of the rotor, a raw material supply port is opened in the vicinity of the central portion of the rotor, and a product output port is opened in the vicinity of position directly below the rotor.
First Claim
Other Claims data not available
