Equine training device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 9, 2011
Issued Date -
N/A
app pub date -
Apr 23, 2006
filing date -
Apr 23, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

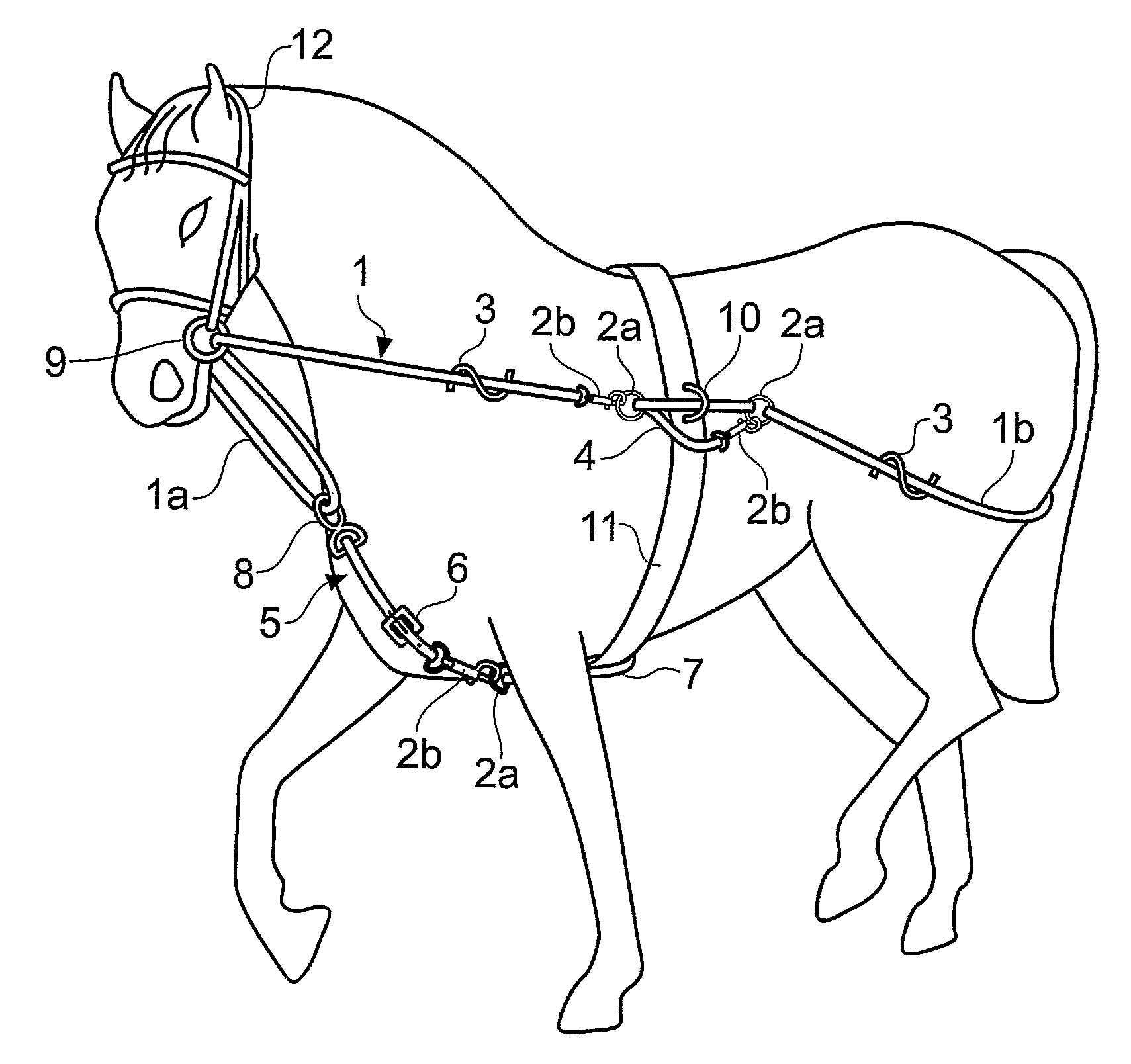

An equine training aid for enabling a horse, pony, donkey or the like, particularly dressage or show horses, to adopt an optimum outline or profile. The training aid includes a self-centering, continuous loop portion (1), configured, during lunging or riding, to be in contact tension with the equine wherein the continuous loop portion (1) includes a front section (1a) and a rear section (1b) each of which are linked by a linker such as the form of rings (2a) and pivotal clips (2b). Each of the loop sections (1a) and (1b) additionally has two adjustment mechanisms (e.g. sliders; (3)) to allow each loop section to be lengthened or shortened and both ends of the rear section (1b) terminate in a safety loop (4) which allows rotation of the device to a limited extent and prevents the rear section of the loop portion (1b) from slipping down the hind legs of the equine when the device is being dismantled and removed from the equine.
First Claim
Other Claims data not available
