Cutter structure of labeling machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 2, 2011
Grant Date -
Sep 23, 2010
app pub date -
Mar 18, 2009
filing date -
Mar 18, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

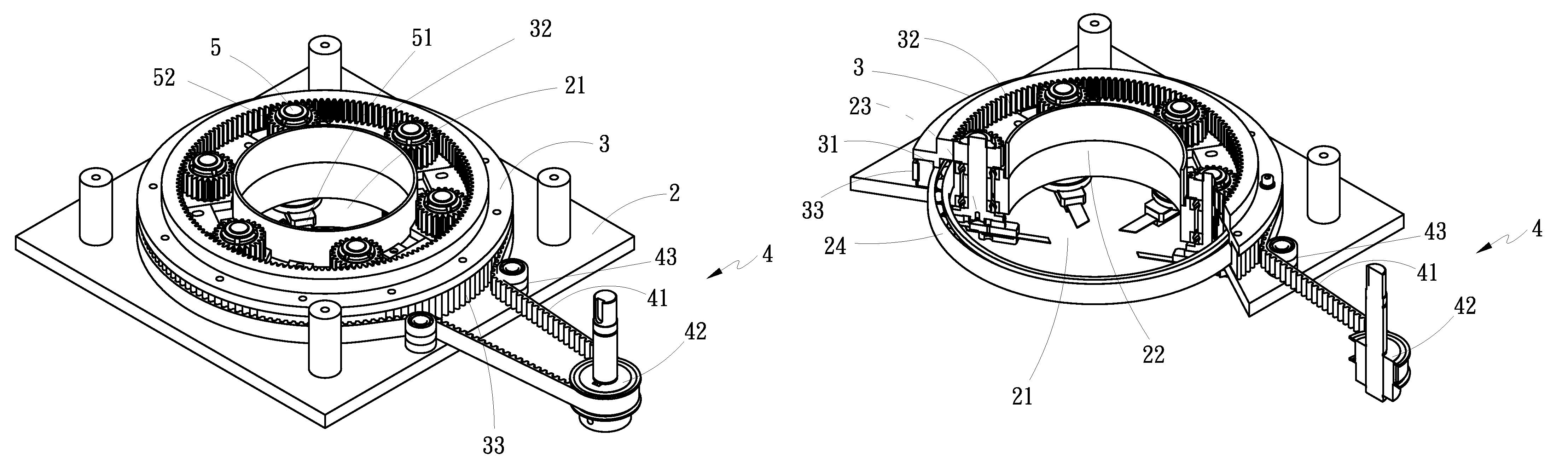

The present invention discloses a cutter structure of a labeling machine, wherein a transmission belt driven by a power source is utilized to drive a ring-shaped gear, which is concentric with a through hole and supported by a bearing, and through the inner teeth on the inner surface of the ring-shaped gear engaging with the gears mounted on the top ends of the tool posts, which are disposed along the outer edge of the through hole, the tool posts can be driven by the ring-shaped gear to turn, and at the same time cut the thermal shrinkable film in the through hole, thereby forming a cutter structure with uniform transmission force and high speed and stable cutting process.
