Device for aligning the refining disc of a refining apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 26, 2011
Grant Date -
Mar 26, 2009
app pub date -
May 30, 2007
filing date -
Jun 1, 2006
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

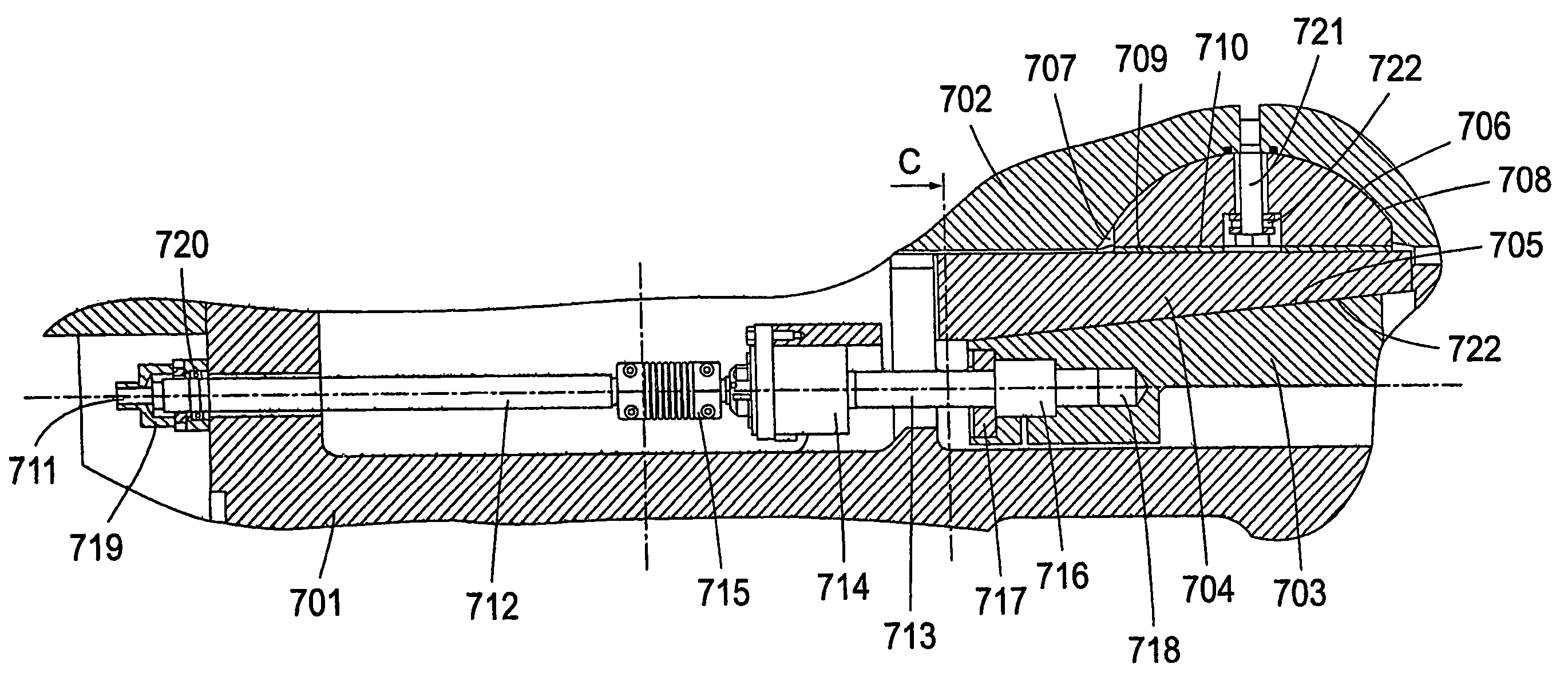

Apparatus for aligning a refining disc is a refiner is disclosed, the apparatus including a first wedge slidable along a support for the axle package of the refining disc, a second wedge disposed between the first wedge and a bearing housing in which the rotatable axle of the axle package is journalled, the second wedge being slidable transversely to the slidable movement of the first wedge, a controller for controlling displacement of the first wedge including an actuator at one end of the support and a control axle extending from the actuator to the first wedge, the control axle being rotatable and rotatably secured to the first wedge whereby operation of the actuator causes rotation of the control axle, which in turn causes displacement of the first wedge which causes transverse displacement of the second wedge.
First Claim
Other Claims data not available
