Method and apparatus for enhanced settling and collection of settled material
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 19, 2011
Grant Date -
Dec 16, 2010
app pub date -
Aug 24, 2010
filing date -
Aug 24, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

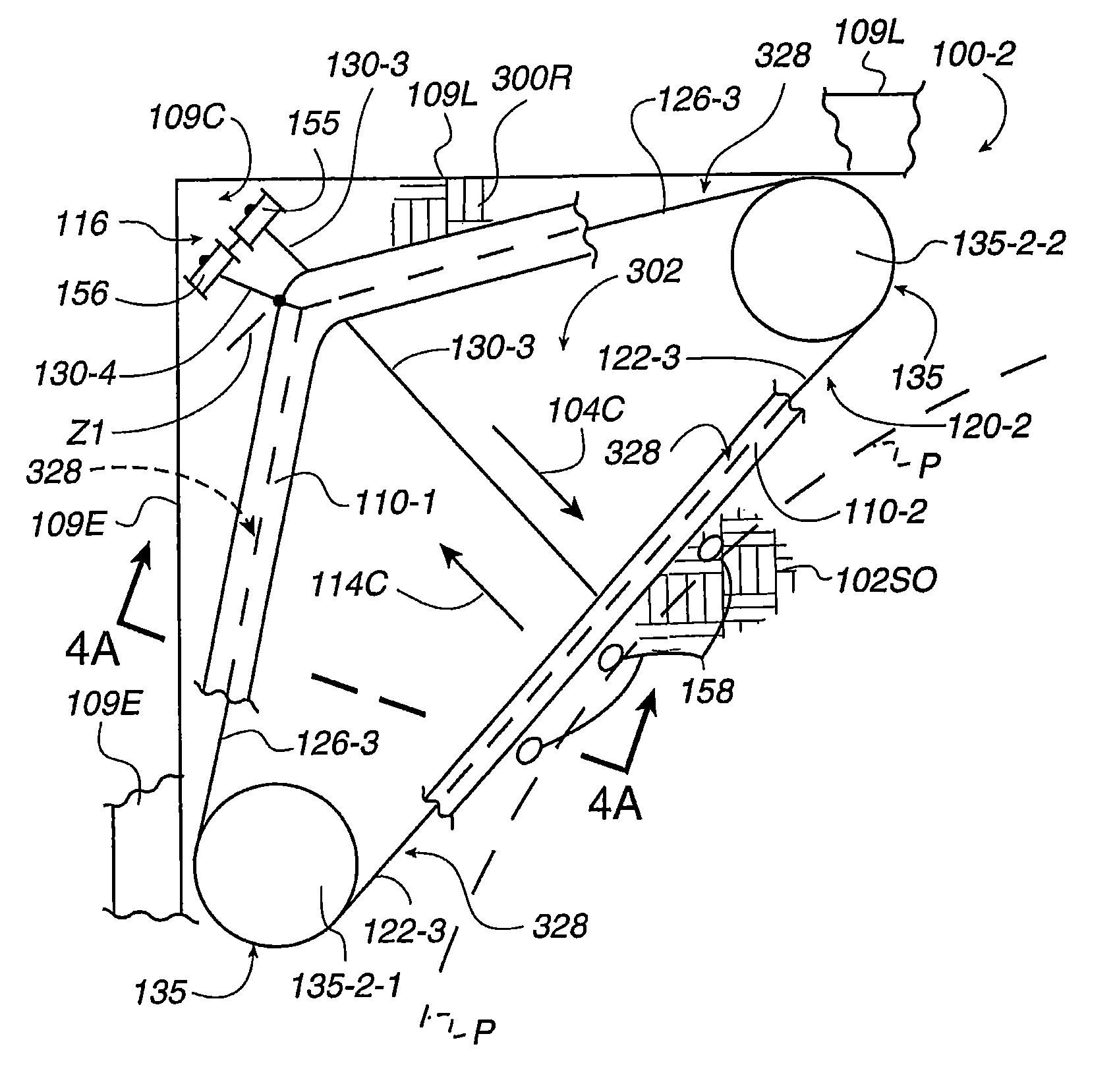

Apparatus and methods provide individual blades driven by drives configured to reduce a tendency of sludge to be moved in an undesired return direction. Drive configurations apply “pull” and “pull” forces that only pull on tensile structures, avoiding a need in actual commercial practice for use of extra structural drive members having high resistance to both tension and compressive forces exerted parallel to a sludge movement direction. Each of two separate tensile structures carries one blade, or a separate set of blades, with blade(s) of one structure adjacent to, and alternating with, blade(s) of the other structure. Embodiments move sludge from a corner of a basin and across a floor of the basin. The reduced tendency of sludge movement in the return direction results from moving one tensile structure and blade(s) in the sludge movement direction as the other tensile structure and adjacent opposed blade(s) move in the return direction.
First Claim
Other Claims data not available
