RFID label attaching method, RFID label attaching device, and RFID label

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 7969309
APP PUB NO 20080303666A1
SERIAL NO

11719632

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

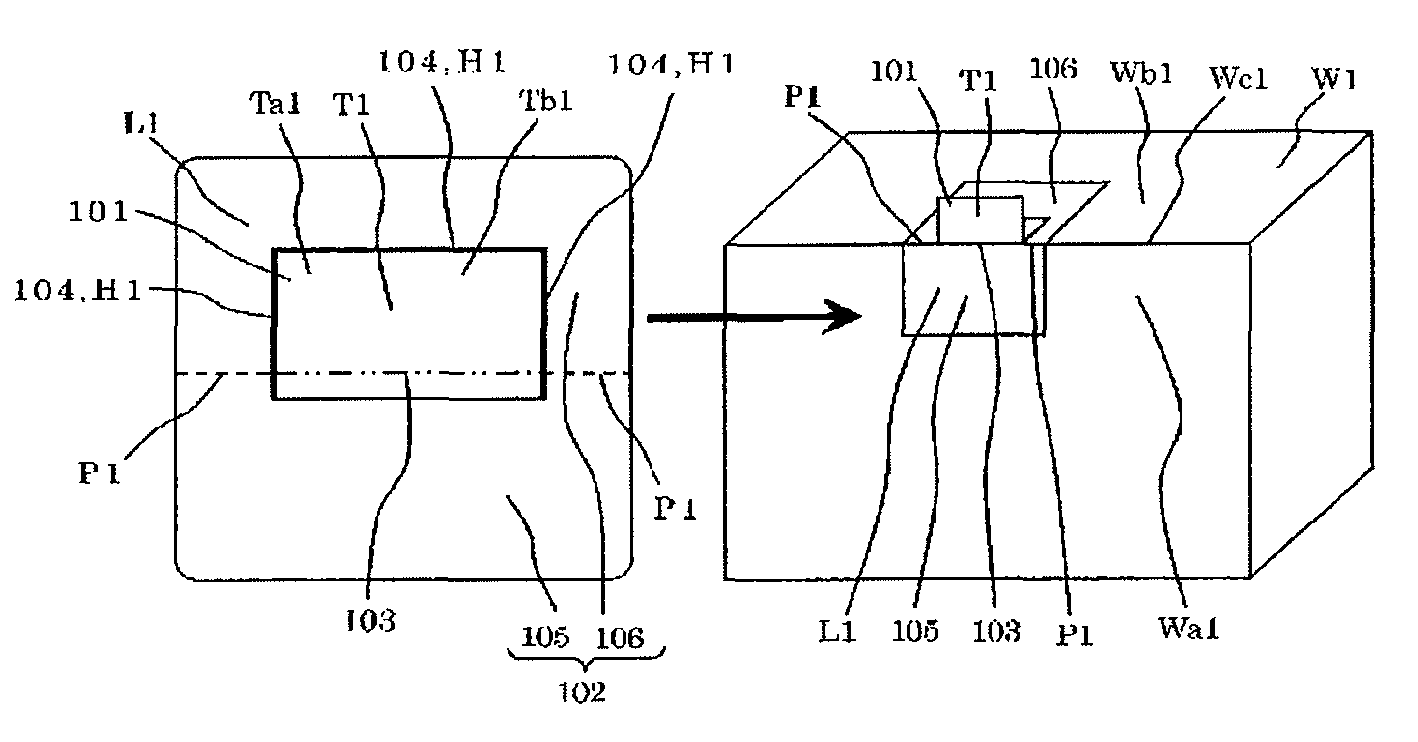

A RFID tag is partially separable from an article to which the tag is applied such that influence on the RFID tag from the article may be reduced thereby. A label is applied to an article, wherein the label is tacked on a backing paper. The label is fixed with a tag-fixed portion fixed with a RFID tag comprising an IC chip and a communication antenna. The tag-fixed portion has a predetermined size and is partitioned from a common label portion. The common label portion is partitioned into a first label portion that is articulated with the tag-fixed portion and a second label portion, from which the tag-fixed portion is separable along a partition line extending across the common label portion from a side of the tag-fixed portion. The method comprises associating the first label portion of the common label portion with a first surface of the article such that the partition line of the label follows a corner line of a corner portion of the article, and applying the label to the article such that the tag-fixed portion articulated with the first label portion is raised from the article.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
KABUSHIKI KAISHA SATO9-10 EBISU 4-CHOME SHIBUYA-KU 1500013 TOKYO

International Classification(s)

loading....
  • 2006 Application Filing Year
  • G08B Class
  • 2289 Applications Filed
  • 1386 Patents Issued To-Date
  • 60.56 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances20062007200820092010201120122013201420152016201720182019202020210255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Abe, Toshiaki Tokyo, JP 29 360
Suzuki, Hiroyuki Tokyo, JP 847 10497

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 8 Citation Count
  • G08B Class
  • 2.94 % this patent is cited more than
  • 14 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges2338017874252921169621901 - 1011 - 2021 - 3031 - 4041 - 5051 - 6061 - 7071 - 8081 - 9091 - 100100 +0255075100125150175200225250275300325350375400

Forward Cite Landscape

Load Citation
