Substrate-triggered bipolar junction transistor and ESD protection circuit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 28, 2011
Grant Date -
Aug 7, 2003
app pub date -
Dec 4, 2002
filing date -
Feb 6, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

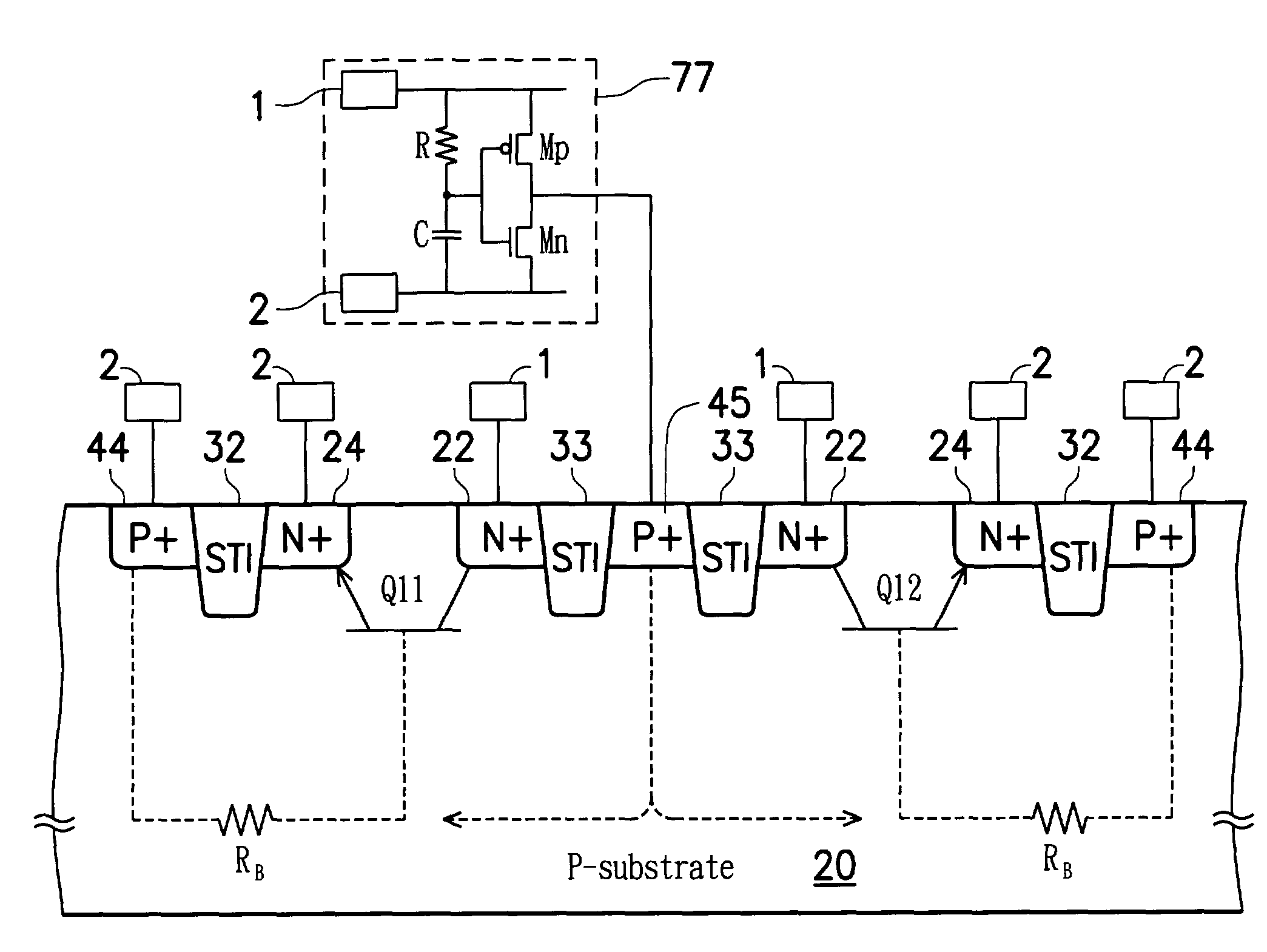

An ESD protection circuit using a novel substrate-triggered lateral bipolar junction transistor (STLBJT) for providing a discharging path between power rails. The ESD protection circuit comprises an ESD detection circuit and a STLBJT device. The STLBJT device formed in a P-type substrate includes N-type collector and emitter regions coupled to the power rails, respectively. The substrate region between the collector and emitter regions, on which there is no field oxide device, serves as a base of the STLBJT device. The STLBJT device further includes a first P-type region coupled to the ESD detection circuit and a second P-type region coupled to one of the power rails, which are spatially separated from the collector/emitter regions, respectively. The STLBJT device is turned on by substrate-triggering responsive to the signal coming from the ESD detection circuit and establishes the discharging path between the power rails.
First Claim
Other Claims data not available
