Trailing beam assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 7, 2011
Grant Date -
N/A
app pub date -
May 21, 2010
filing date -
May 21, 2010
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

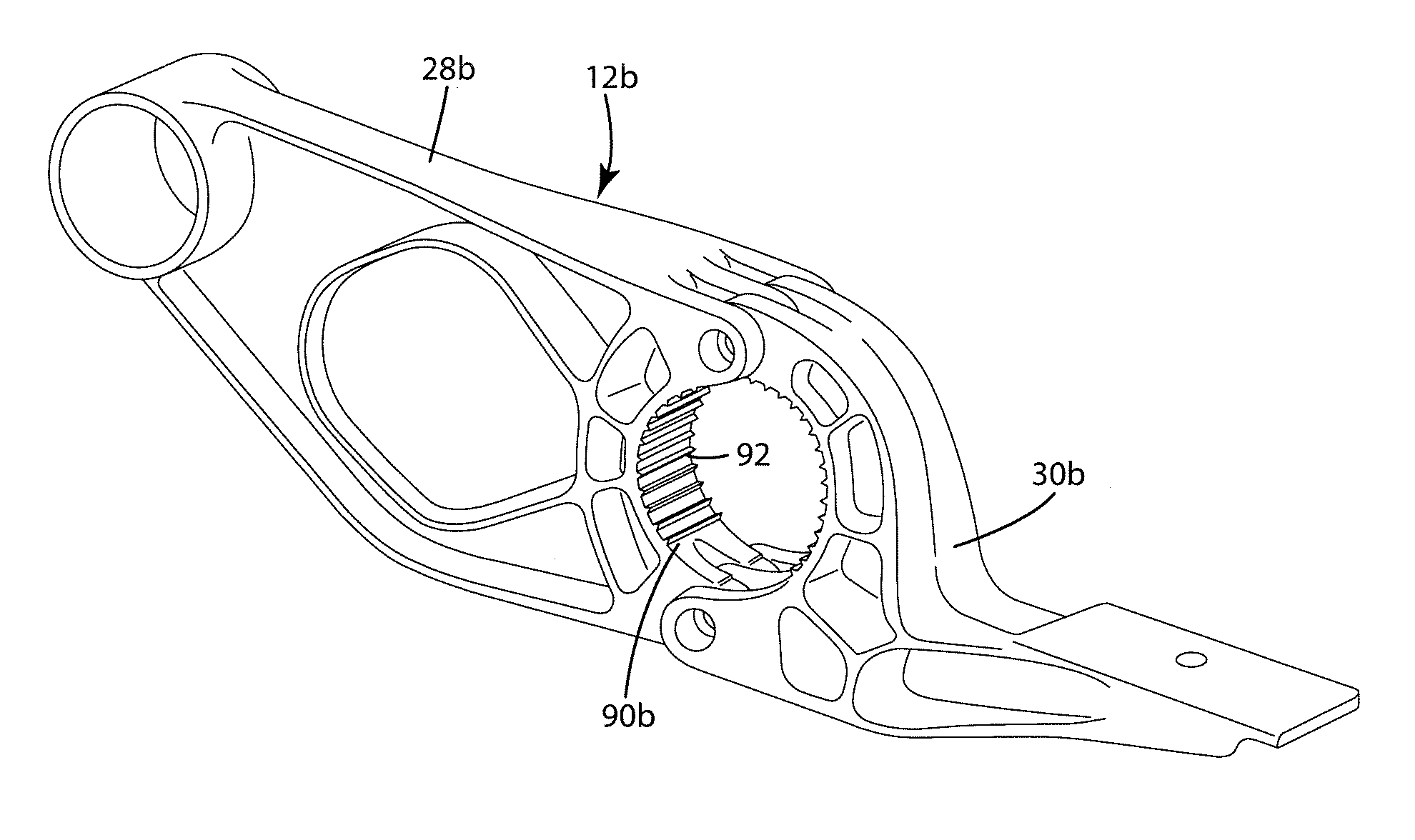

A suspension assembly comprises an axle member extending between a pair of trailing beam assemblies, wherein each trailing beam assembly comprises first and second members pivotally coupled to one another that cooperate to form an aperture within which the axle member is clamped. Each trailing beam assembly comprises a first member having a first recess, and a second member that includes a second recess, wherein the first and second members are pivotally coupled to one another and are pivotable between a first position, wherein the first recess and second recess cooperate with one another to form an open aperture, and a second position, wherein the first recess and the second recess cooperate to form a first closed aperture that receives the axle member therethrough.
First Claim
Other Claims data not available
