Method and device for transporting a sheet
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 7, 2011
Grant Date -
Jul 26, 2007
app pub date -
Feb 10, 2005
filing date -
Feb 12, 2004
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

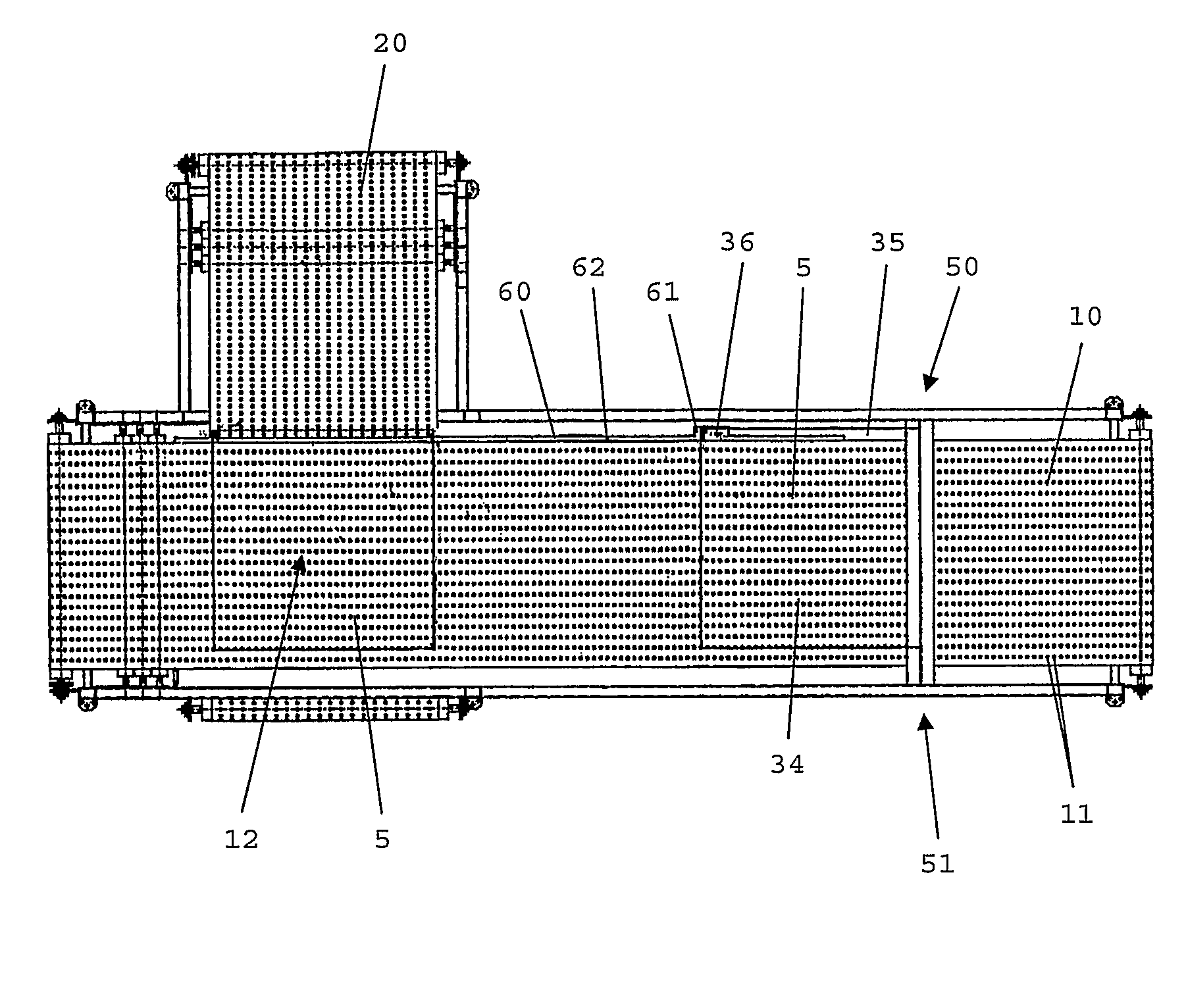

A device for manufacturing a crosslaid fiber web including a first conveyor belt and a second conveyor belt, which are oriented in two different directions, wherein the second conveyor belt adjoins a side of the first conveyor belt. During operation of the device, the first conveyor belt transports longitudinal fiber web segments, which are conveyed to the second conveyor belt in a conveyance region. During transportation by the first conveyor belt, a conveyance area of the longitudinal fiber web segments projects with respect to the side of the first conveyor belt. The device comprises a guiding belt for supporting a portion of this conveyance area, in order to guarantee that, in the conveyance region, the longitudinal fiber web segments may be conveyed to the second conveyor belt in a completely outstretched fashion.
First Claim
Other Claims data not available
