Radiation system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 31, 2011
Grant Date -
Jul 12, 2007
app pub date -
Aug 27, 2004
filing date -
Aug 27, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

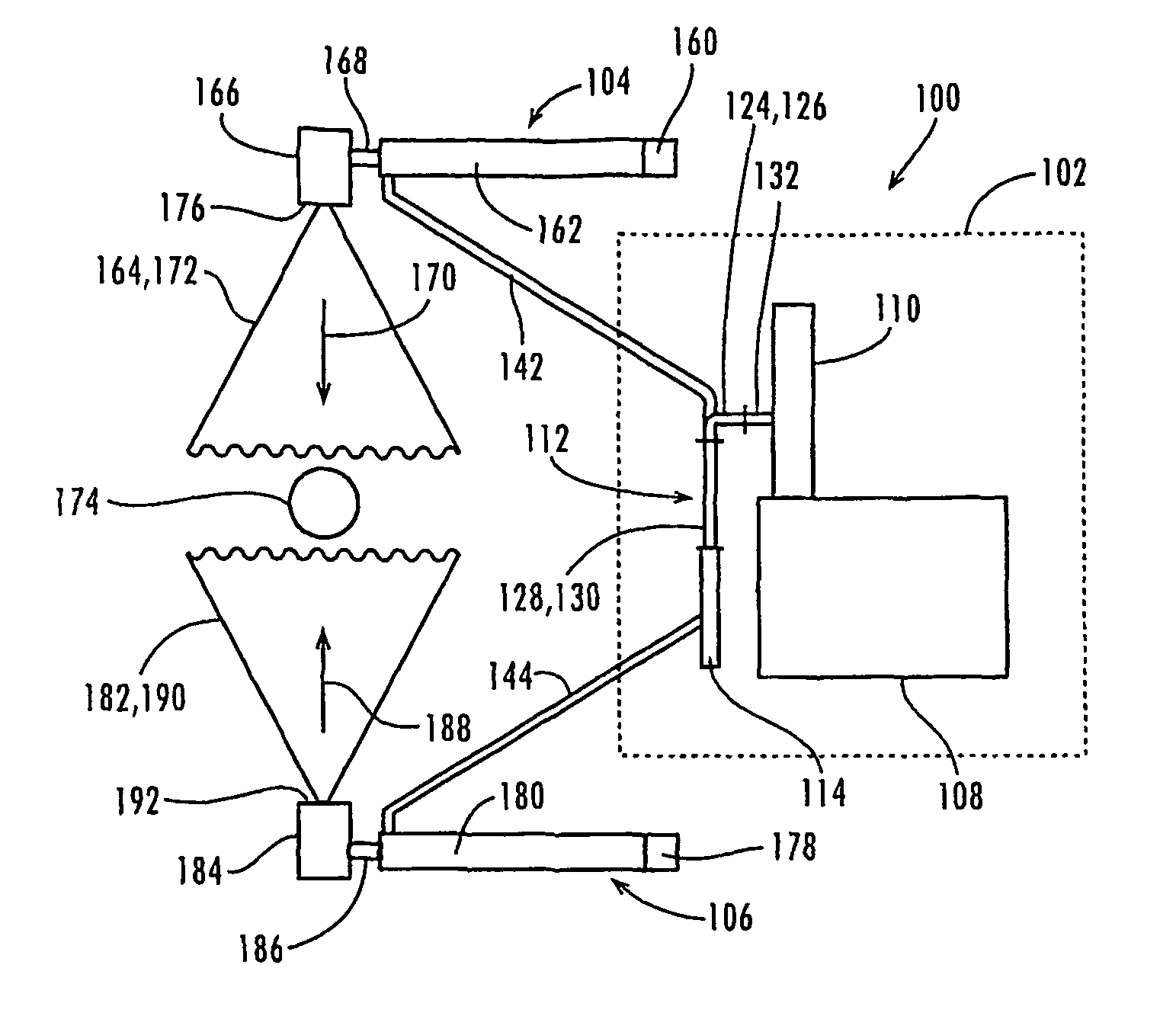

Radiation systems, including apparatuses and methods, for providing multiple independent RF electron accelerators with RF power from a single RF generator. The radiation systems may be employed in radiation treatment systems for treating subject objects by irradiating them from different directions and in inspection systems for producing images of the contents of a container or other volume in multiple planes using RF electron accelerators that receive RF electromagnetic power from a single RF generator. The radiation systems include RF drive subsystems each having a 3 dB directional coupler connected between an RF generator and RF electron accelerators. Each 3 dB directional coupler divides RF electromagnetic power received from the RF generator into equal or unequal portions for delivery to respective RF electron accelerators.
First Claim
Other Claims data not available
