Sheet material feeder
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 24, 2011
Grant Date -
Jul 13, 2006
app pub date -
Jan 12, 2005
filing date -
Jan 12, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

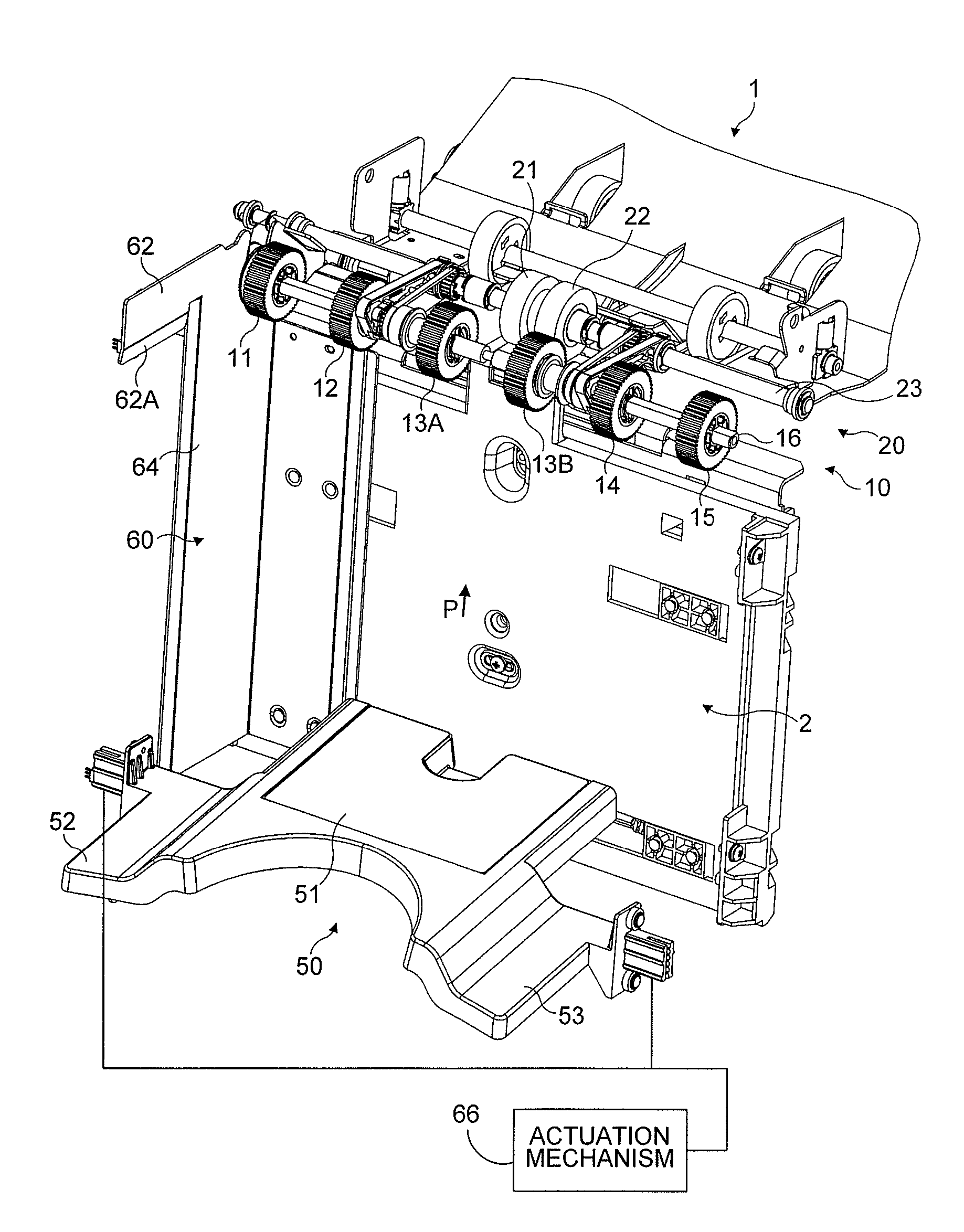

A sheet stacking apparatus for storing a plurality of sheets is disclosed having a storage chamber having a first transverse dimension, a platform located within the storage chamber for storing a plurality of sheets in a substantially vertical stack thereon, a feeder for feeding a top sheet from the stack, and means for moving the platform upwards to hold the stack in operative contact with the feeder, wherein the platform comprises a support portion having a second transverse dimension which is less than the first transverse dimension, for allowing sheets stacked on the platform to droop below the support portion in at least one overhanging region.
First Claim
Other Claims data not available
