Three-dimensional electrode for electrolysis, ion exchange membrane electrolytic cell and method of electrolysis using three-dimensional electrode
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 19, 2011
Grant Date -
Mar 29, 2007
app pub date -
Sep 25, 2006
filing date -
Sep 26, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

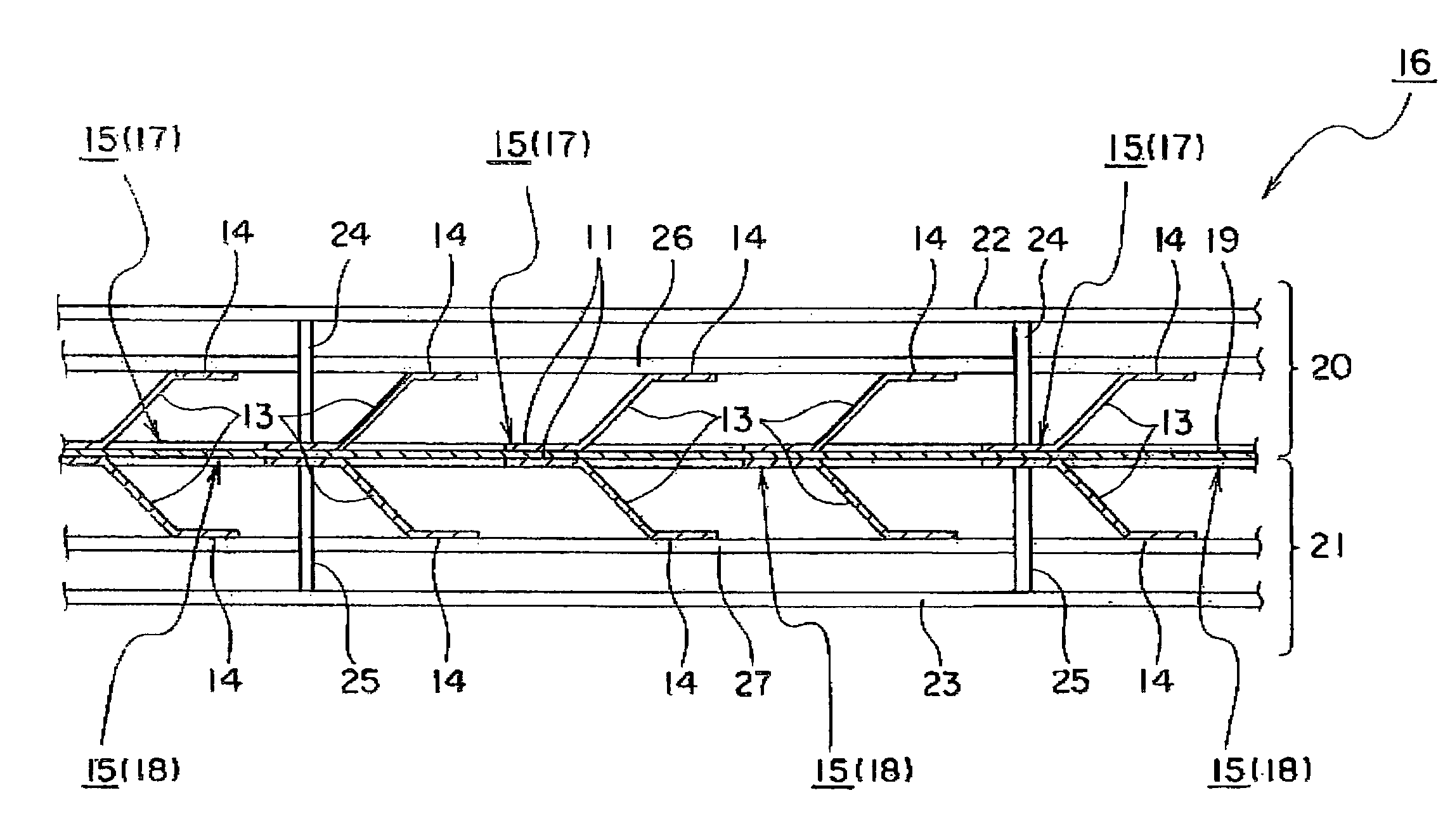

A three-dimensional electrode with higher strength and higher toughness is provided. The three-dimensional electrode is fabricated by bending a plurality of snicks which are formed in a plate-like electrode substrate toward the same direction. The stabilization of the positional relation among the elements generated by the three-dimensional electrode neither mechanically damages the membrane nor causes the insufficient current supply. The three-dimensional electrode is preferably used for brine electrolysis and white liquor electrolysis.
First Claim
Other Claims data not available
