Front fork
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 19, 2011
Grant Date -
Sep 25, 2008
app pub date -
Feb 25, 2008
filing date -
Mar 22, 2007
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

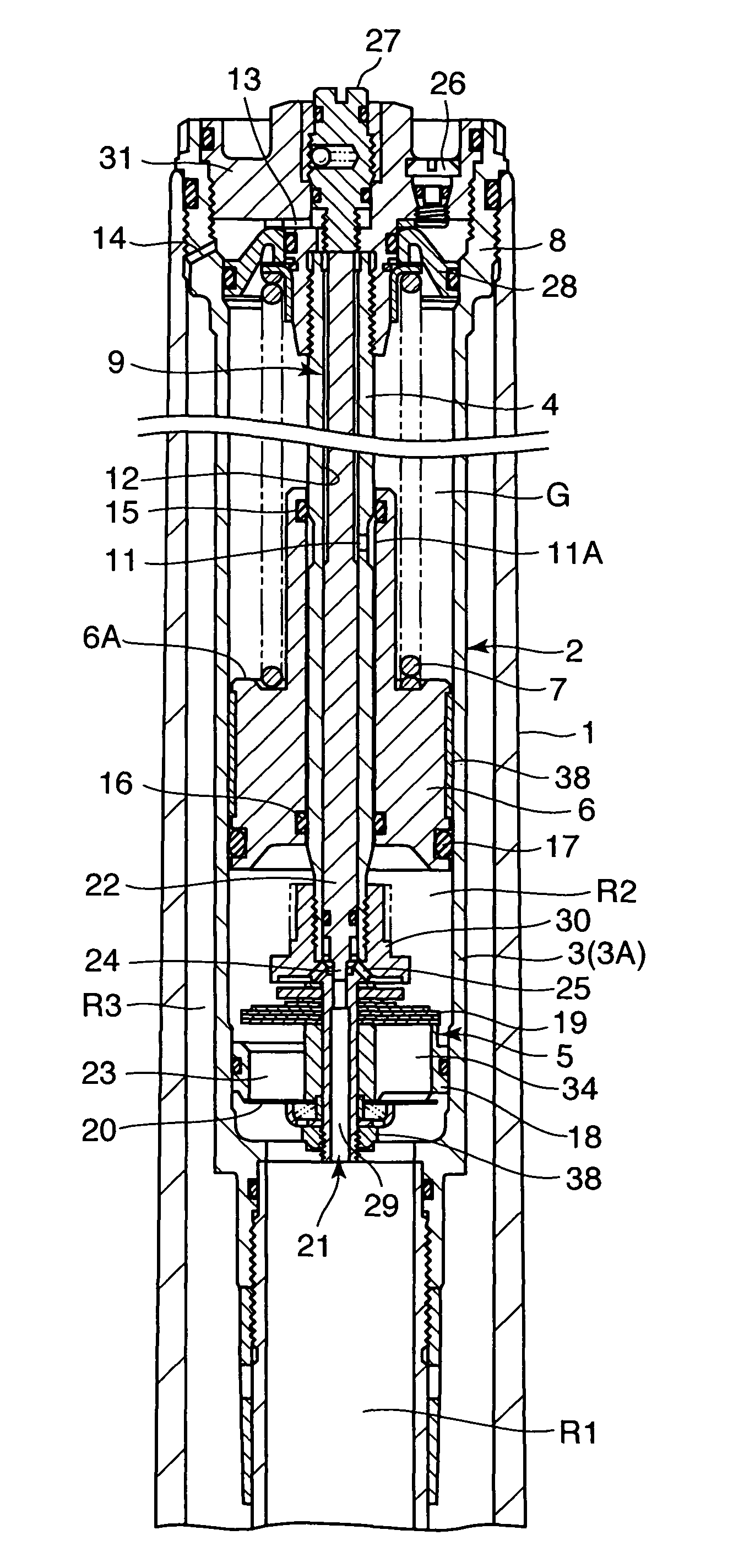

A front fork comprises a telescopic tube (1, 32) in which a damper cylinder (3) generates a damping force. The damper cylinder (3) comprises a guide sleeve (4) and a free piston (6) having an inner circumference which slides on the outer circumference of the guide sleeve (4) and an outer circumference which slides on the inner circumference of the damper cylinder (3). A lateral through-hole (11) formed in the guide sleeve (4) connects an auxiliary reservoir (R3) formed outside the damper cylinder (3) and an oil reservoir (R2) via a flow path (12) formed in the guide sleeve (4) according to the displacement position of the free piston (6), thereby reducing the number of seal members required to be fitted on the outer circumference of the free piston (6) and enabling the free piston (6) to slide smoothly even when the telescopic tube (1, 32) suffers a bending force.
First Claim
Other Claims data not available
