Saw blade changing tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 19, 2011
Grant Date -
Nov 13, 2008
app pub date -
May 7, 2007
filing date -
May 7, 2007
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

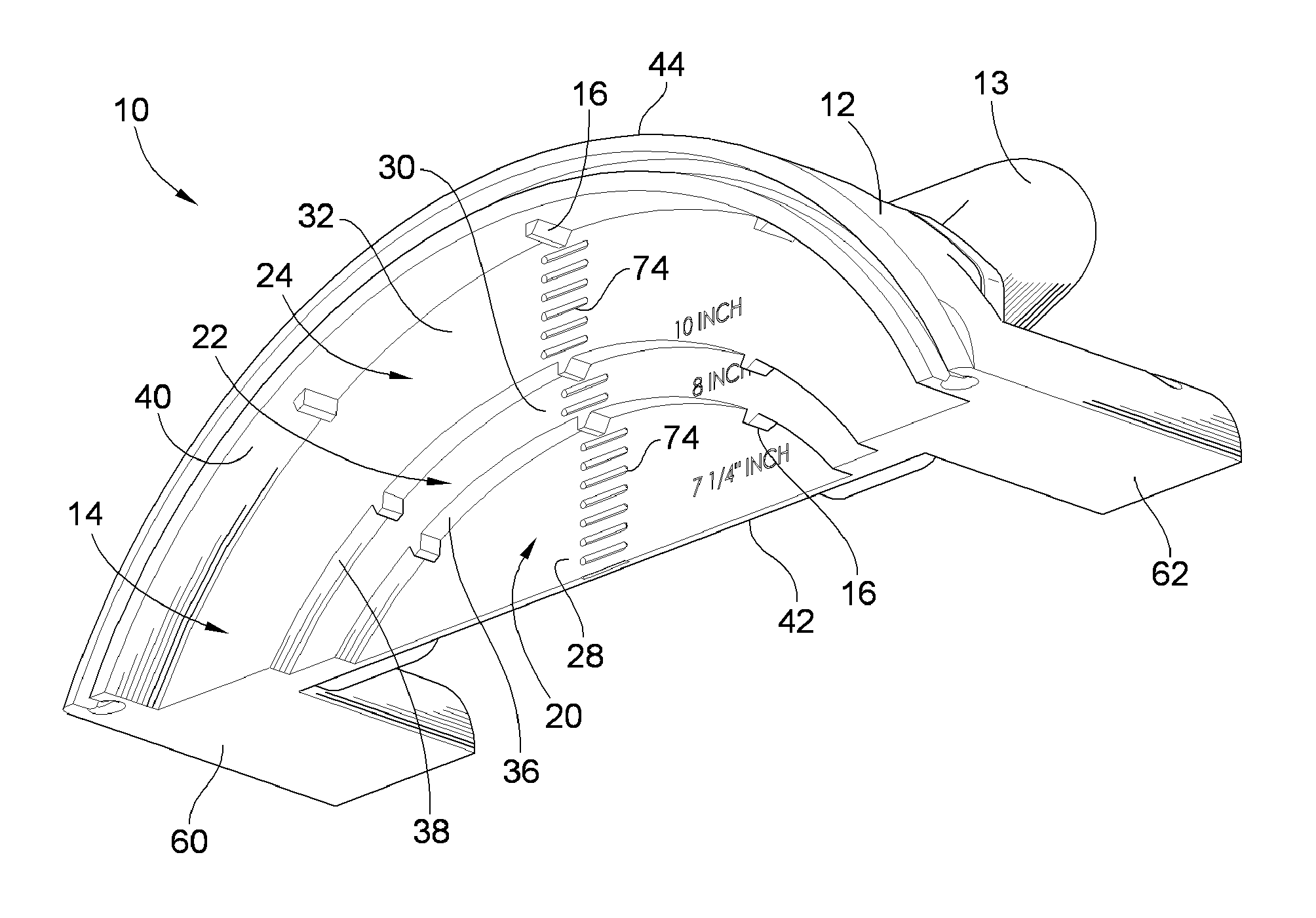

A blade changing tool for changing a blade for saws, particular table saws, is provided. The tool includes a body having a face that includes at least one recess for receiving and engaging a saw blade. Typically, the face will include a plurality of axially offset recesses resulting in a stepped face. A blade face abutment surface and a riser extending therefrom combine to form the recesses. The risers may be concave in shape giving the recesses a circular segment shape. The body also includes at least one blade engaging catch that engages teeth of the blade to prevent rotational movement of the blade while it is being loosened or tightened. The tool may be free of undercuts to facilitate straight-pull molding. Also, the stepped face may be an external face to facilitate visually inspecting the engagement between the blade and the tool.
First Claim
Other Claims data not available
