Apparatus for the fibre-sorting or fibre-selection of a fibre bundle comprising textile fibres, especially for combing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 12, 2011
Grant Date -
Jan 1, 2009
app pub date -
Jun 27, 2008
filing date -
Jun 29, 2007
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

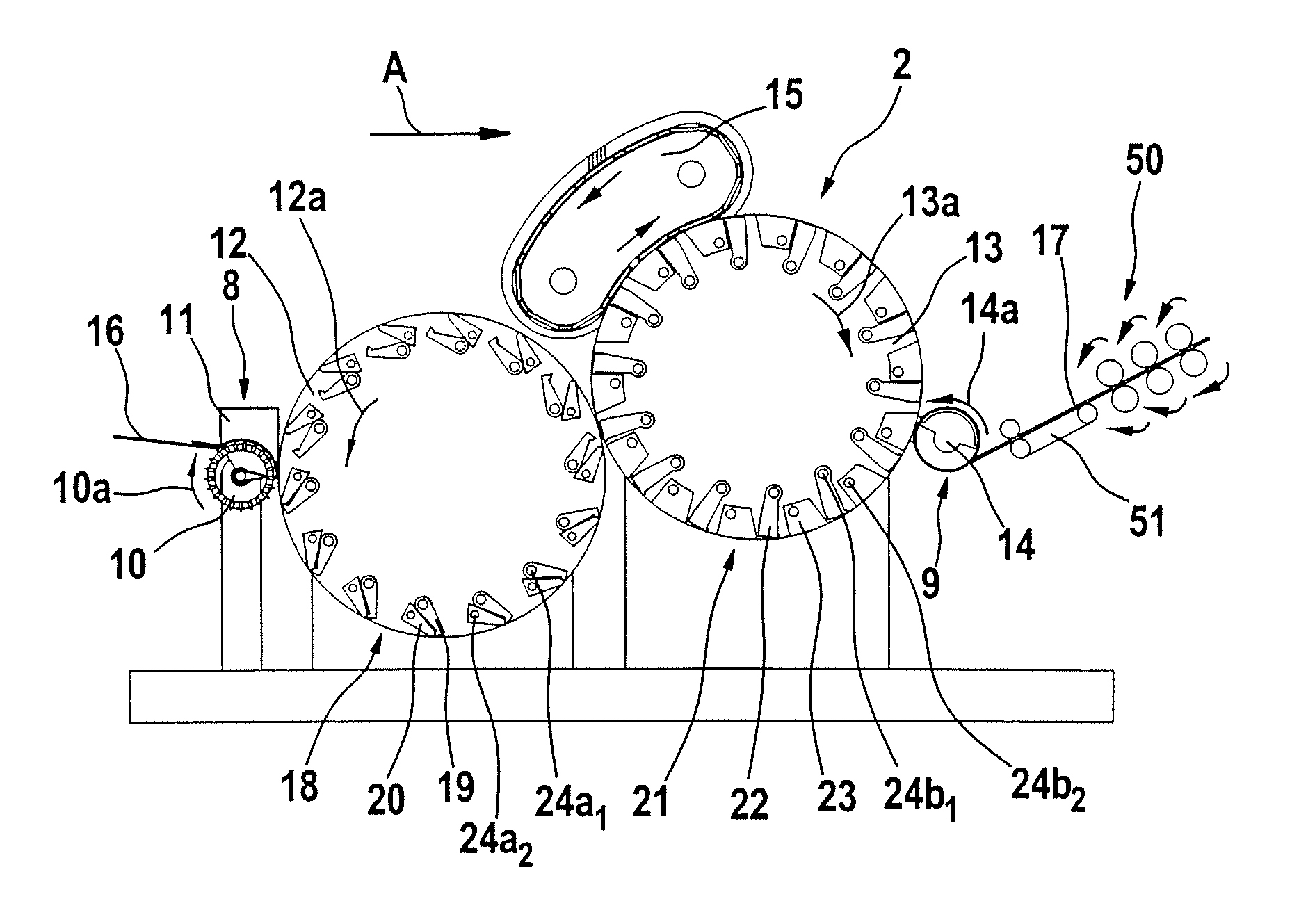

In an apparatus for the fiber-sorting or fiber-selection of a fiber bundle comprising textile fibers, especially for combing, which is supplied to a fiber-sorting device, especially a combing device, having clamping devices which clamp the fiber bundle at a distance from its free end, which is combed to remove non-clamped constituents, the clamping devices each comprise two clamping jaws. To increase productivity and to enable an improved combed sliver to be obtained, downstream of the supply device there are arranged at least two rotatably mounted rollers rotating rapidly without interruption, the clamping devices being spaced apart in the region of the periphery of the rollers, and each clamping device comprising at least one nipper part at least partially of a lightweight material. The clamping jaws may have a high coefficient of friction in the region of their clamping surfaces.
First Claim
Other Claims data not available
