Seismic wave generation systems and methods for cased wells
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 29, 2011
Grant Date -
Nov 19, 2009
app pub date -
May 17, 2008
filing date -
May 17, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

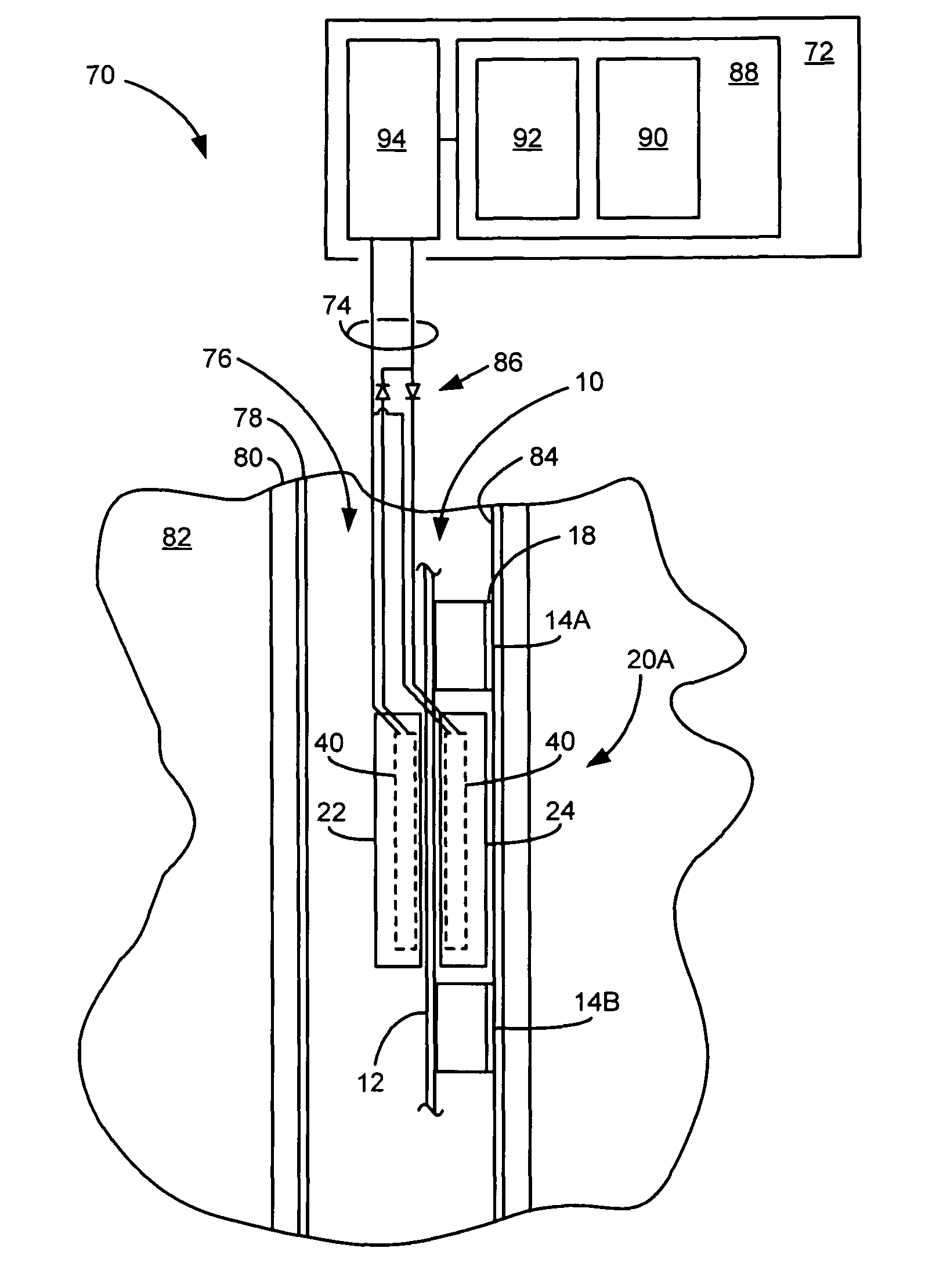

A vibration source (10) includes an armature bar (12) having a major length dimension, and a driver (20A) positioned about the armature bar. The driver (20A) is movably coupled to the armature bar (12), and includes an electromagnet (40). During operation the electromagnet (40) is activated such that the driver (20A) moves with respect to the armature bar (12) and a vibratory signal is generated in the armature bar. A described method for generating a vibratory signal in an object includes positioning the vibration source (10) in an opening of the object, coupling the armature bar (12) to a surface of the object within the opening, and activating the electromagnet (40) of the driver (20A) such that the driver moves with respect to the armature bar (12) and a vibratory signal is generated in the armature bar and the object.
First Claim
Other Claims data not available
