Carrier for a bicycle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 22, 2011
Grant Date -
Jan 10, 2008
app pub date -
Jul 6, 2007
filing date -
Jul 8, 2006
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

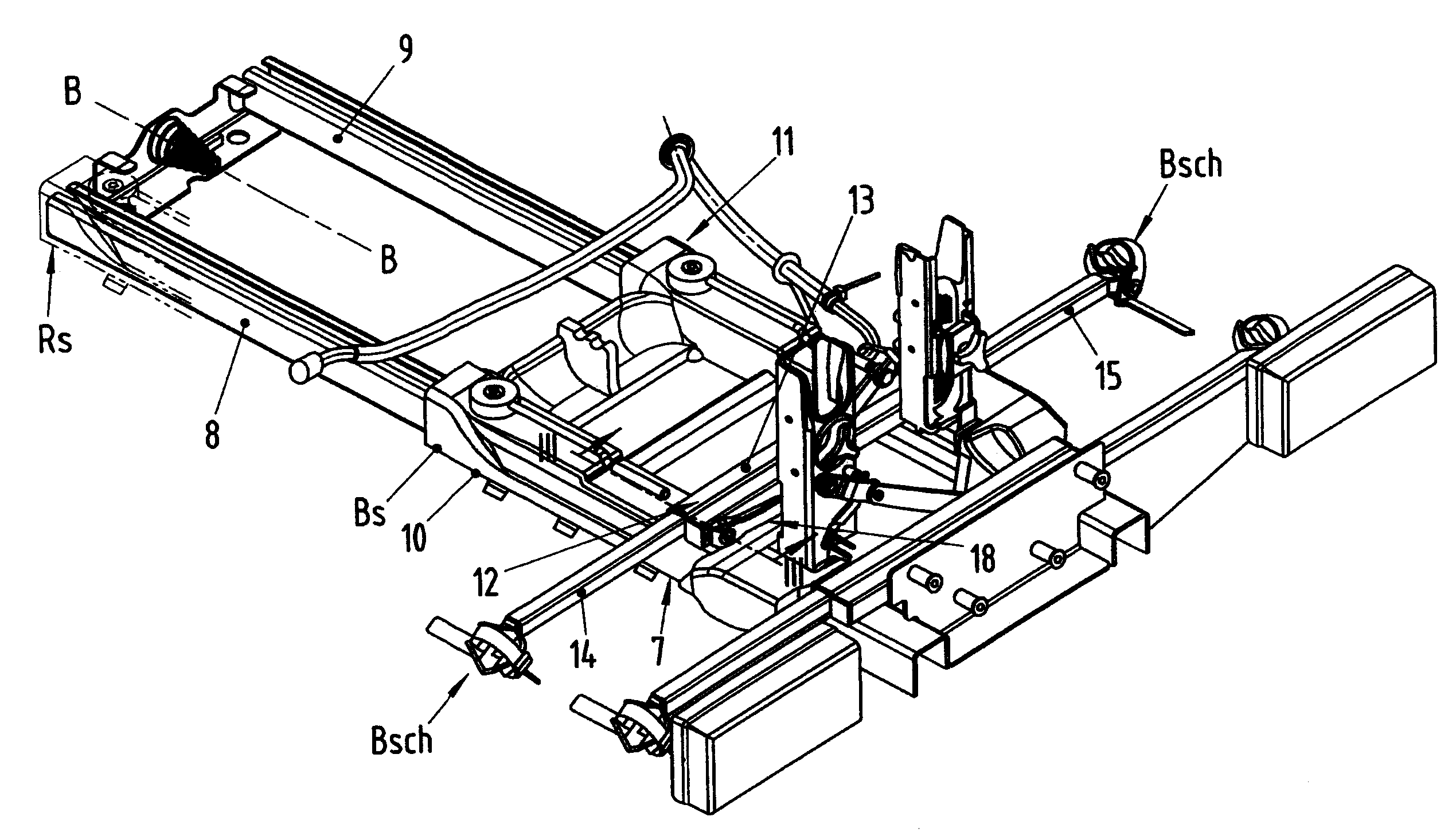

A bicycle carrier for a vehicle includes a support holder for holding a bicycle aligned transversely to a longitudinal direction of a vehicle. A retaining bracket connected to the support holder has a guide holder and retaining bracket sections. The bracket sections are movably connected to the guide holder to move transversely to the longitudinal vehicle direction. The bracket sections hold respective wheels of a bicycle held on the support holder. Fixing elements are respectively connected to the retaining bracket and a corresponding bracket section. Each fixing element includes a locking member movable between a locked position in which the fixing element locks the corresponding bracket section in place and an unlocked position in which the fixing element unlocks the corresponding bracket section. Actuating mechanisms respectively associated with the fixing elements are operable to move the locking member of the corresponding fixing element between the locked and unlocked positions.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 20 Citation Count
- B60R Class
- 53.87 % this patent is cited more than
- 14 Age
