Fabric collection structure for fabric cutting apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 15, 2011
Grant Date -
N/A
app pub date -
Oct 14, 2009
filing date -
Oct 14, 2009
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

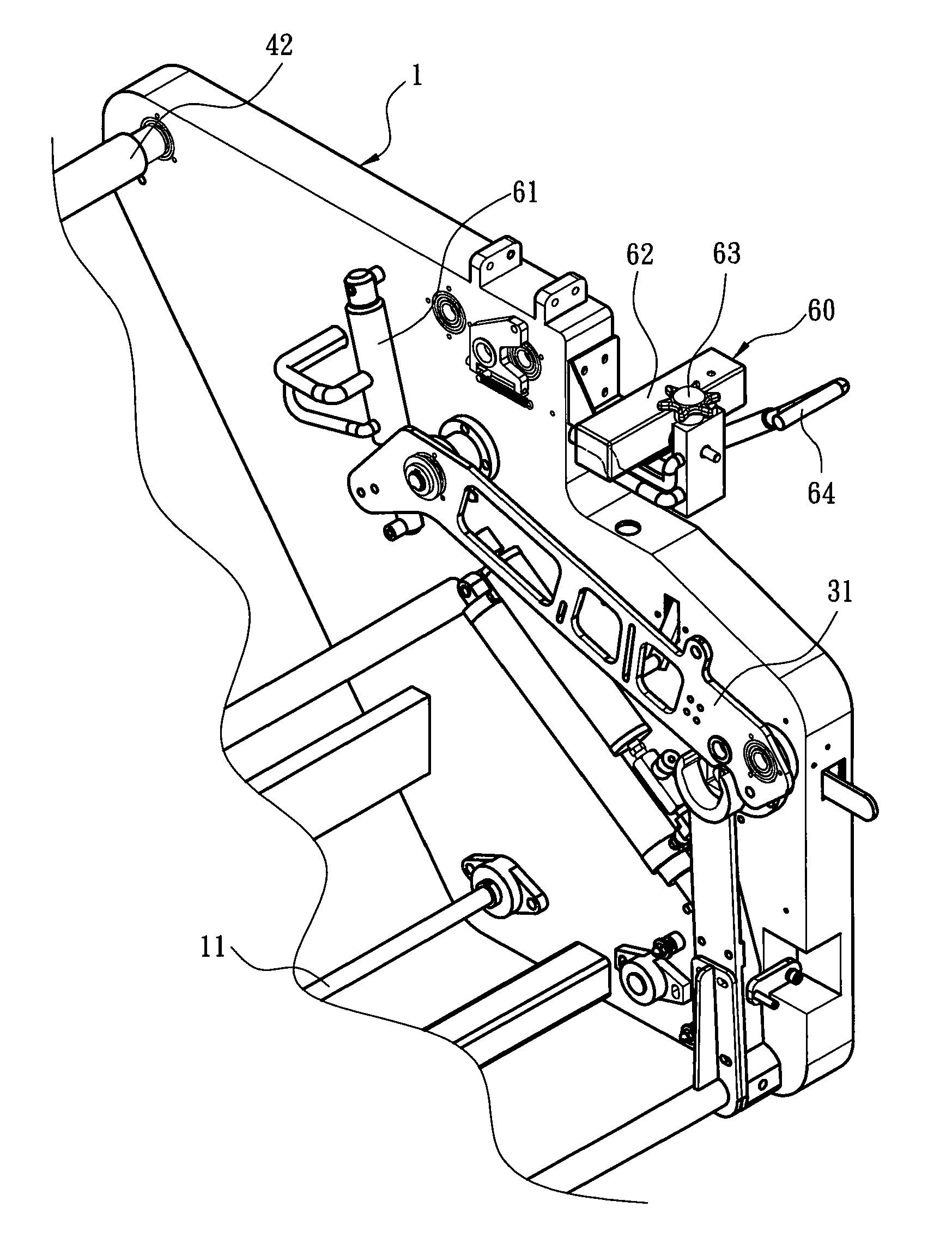

A fabric collection structure for a fabric cutting apparatus splits fabric and has a driving means. The fabric collection structure includes a fabric rolling rod and a fabric pressing means. The fabric pressing means has a fabric spread rod and a fabric pressing rod. During fabric collection, the driving means drives the fabric rolling rod, fabric spread rod and fabric pressing rod to rotate. The fabric split by the fabric cutting apparatus is flatly unfolded by the fabric spread rod and driven by the fabric pressing rod to be rolled on the fabric rolling rod, and is pressed by the fabric pressing rod. The fabric pressing rod is lifted by increasing thickness of the fabric rolled on the fabric rolling rod. The fabric rolling rod rolls the fabric at a fixed location. The fabric pressing means presses the fabric to control the density and a uniform fabric density is achieved.
First Claim
Other Claims data not available
