DC offset cancellation circuit for modulator using 1-bit signal conversion
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 22, 2011
Grant Date -
Oct 22, 2009
app pub date -
Aug 19, 2005
filing date -
Aug 19, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

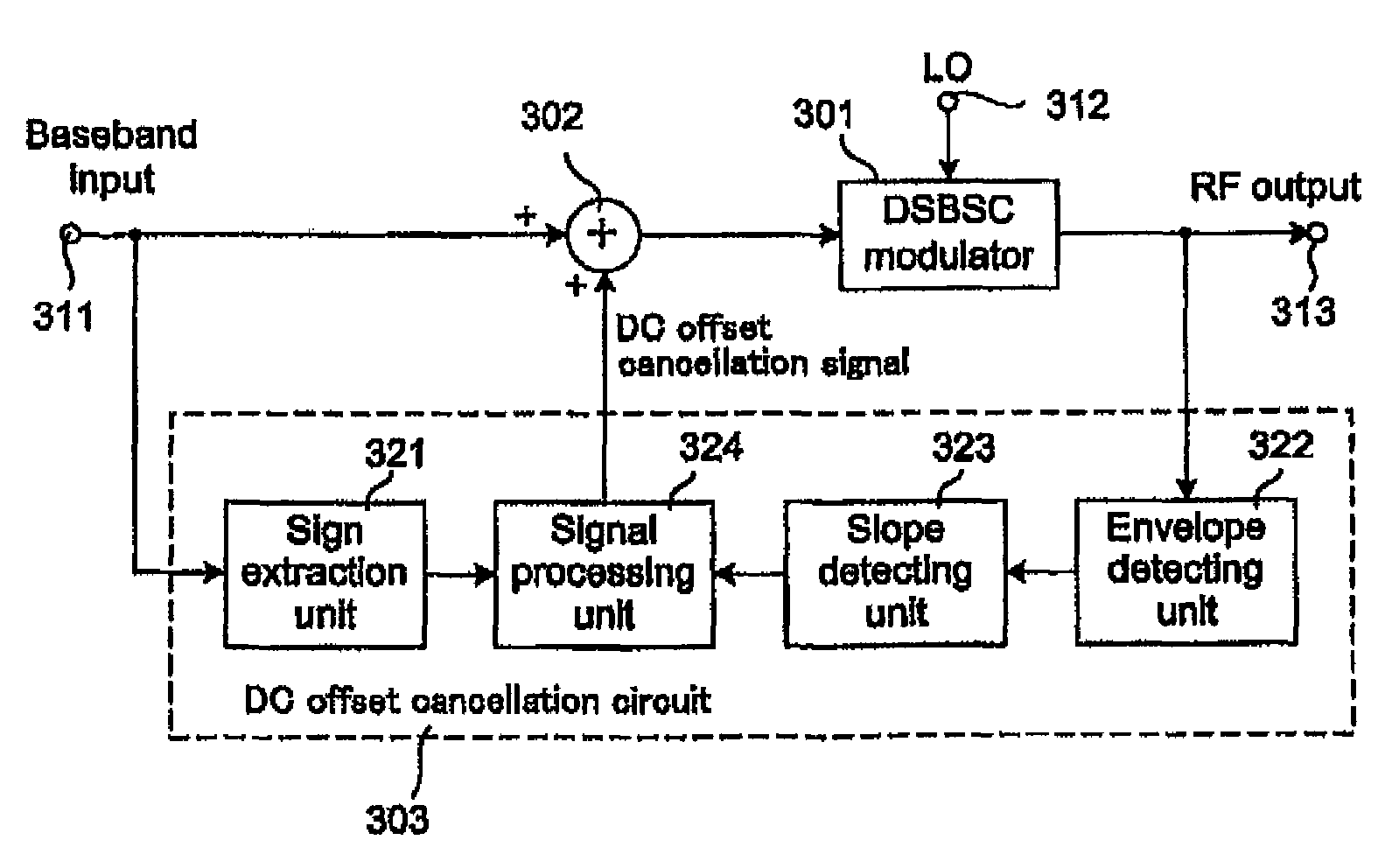

A DC offset cancellation circuit used for compensating a carrier leak at an output signal of a modulator has a sign extraction unit for extracting sign of an information signal which is applied to the modulator, an envelope detecting unit for performing envelope detection on the output signal of the modulator to output the resulting envelope, a slope detecting unit for performing polarity detection on the slope of the envelope; and a signal processing unit for generating a DC offset cancellation signal for compensating the carrier leak based on the result of the sign extraction and the result of the polarity detection. The signal processing unit preferably calculates the DC offset cancellation signal by multiplying the sign of the information signal by the polarity of the slope of the envelope and accumulating the result of multiplication.
First Claim
Other Claims data not available
