Method and apparatus for controlling soot blowing using statistical process control
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 15, 2011
Grant Date -
Jan 24, 2008
app pub date -
Jul 27, 2007
filing date -
Jun 6, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

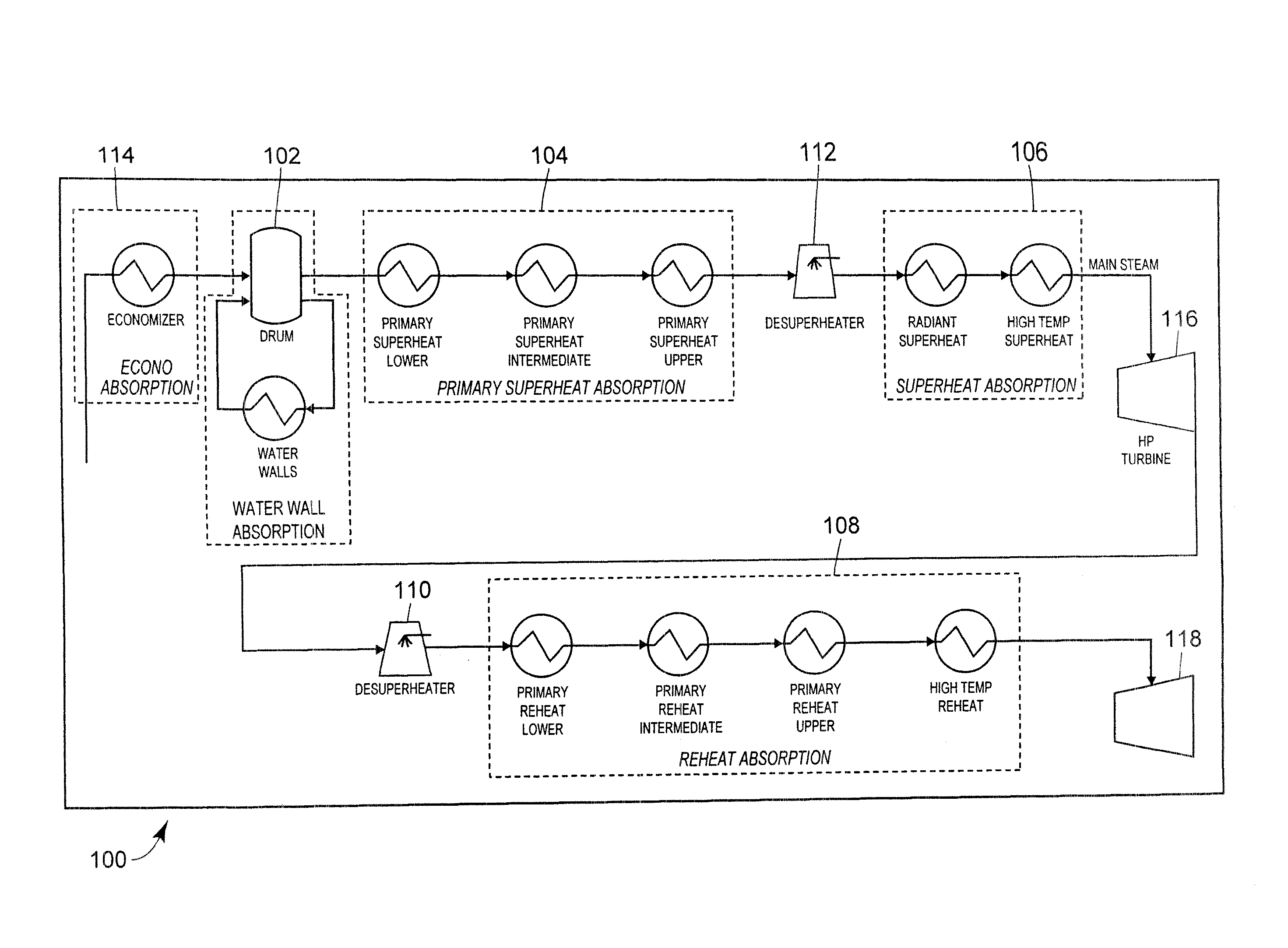

A statistical process control system employs a consistent soot blowing operation for a heat exchange section of, for example, a fuel burning boiler, collects heat absorption data for the heat exchange section and analyzes the distribution of the heat absorption data as well as various parameters of the heat absorption distribution to readjust the soot blowing operation. The statistical process control system may set a desired lower heat absorption limit and a desired upper heat absorption limit and compare them, respectively, with an actual lower heat absorption limit and an actual upper heat absorption limit to determine the readjustment to be made to the soot blowing operation. Alternatively, the statistical process control system may be used to determine permanent slagging of the heat exchange section.
First Claim
Other Claims data not available
