Silicon object forming method and apparatus

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 7887677
APP PUB NO 20080035471A1
SERIAL NO

11524207

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

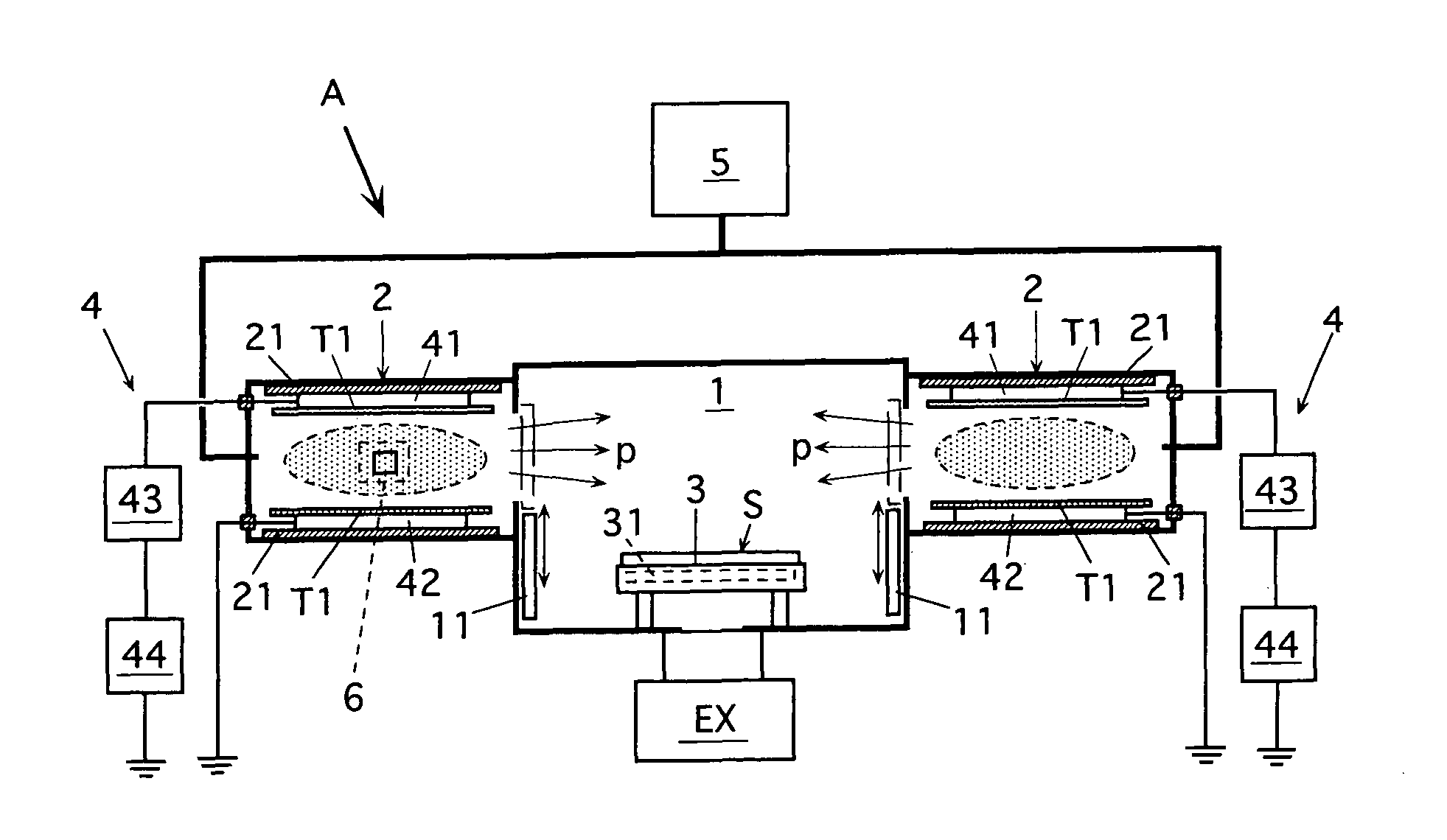

A silicon object formation target substrate is arranged in a first chamber, a silicon sputter target is arranged in a second chamber communicated with the first chamber, plasma for chemical sputtering is formed from a hydrogen gas in the second chamber, chemical sputtering is effected on the silicon sputter target with the plasma thus formed, producing particles contributing to formation of silicon object, whereby a silicon object is formed, on the substrate, from the particles moved from the second chamber to the first chamber.
