Apparatus for collecting smoke and dust with a deodorizing function and a deodorizing and filtering unit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 15, 2011
Grant Date -
Feb 19, 2009
app pub date -
Apr 17, 2006
filing date -
Apr 18, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

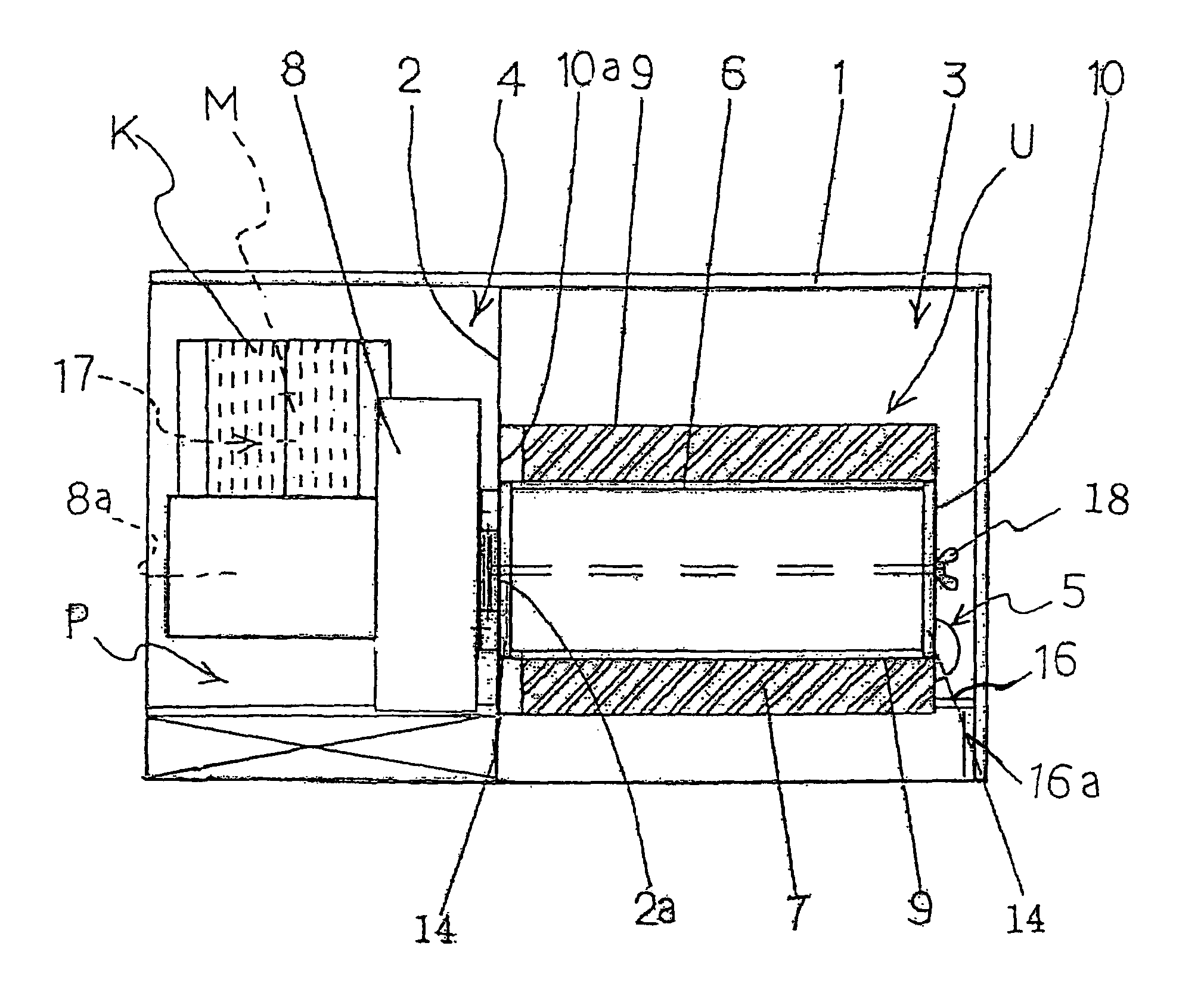

An apparatus for collecting smoke and dust with a deodorizing function which has excellent capability for maintenance and an improved deodorizing and silencing effect, the apparatus having a housing and a bulkhead having an opening and disposed in the housing to separate a space for deodorizing and filtering exhaust gas from a space for discharging exhaust gas, a vacuuming device for vacuuming exhaust gas disposed in the space for discharging and communicating with the opening of the bulkhead, a filtering device for filtering exhaust gas disposed in the space for deodorizing and filtering and communicating with the vacuuming device through the opening of the bulkhead, and a deodorizing device for deodorizing the exhaust gas concentrically disposed at an outer side of the filtering device.
First Claim
Other Claims data not available
