Engine starting system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 15, 2011
Issued Date -
N/A
app pub date -
Aug 28, 2008
filing date -
Sep 8, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

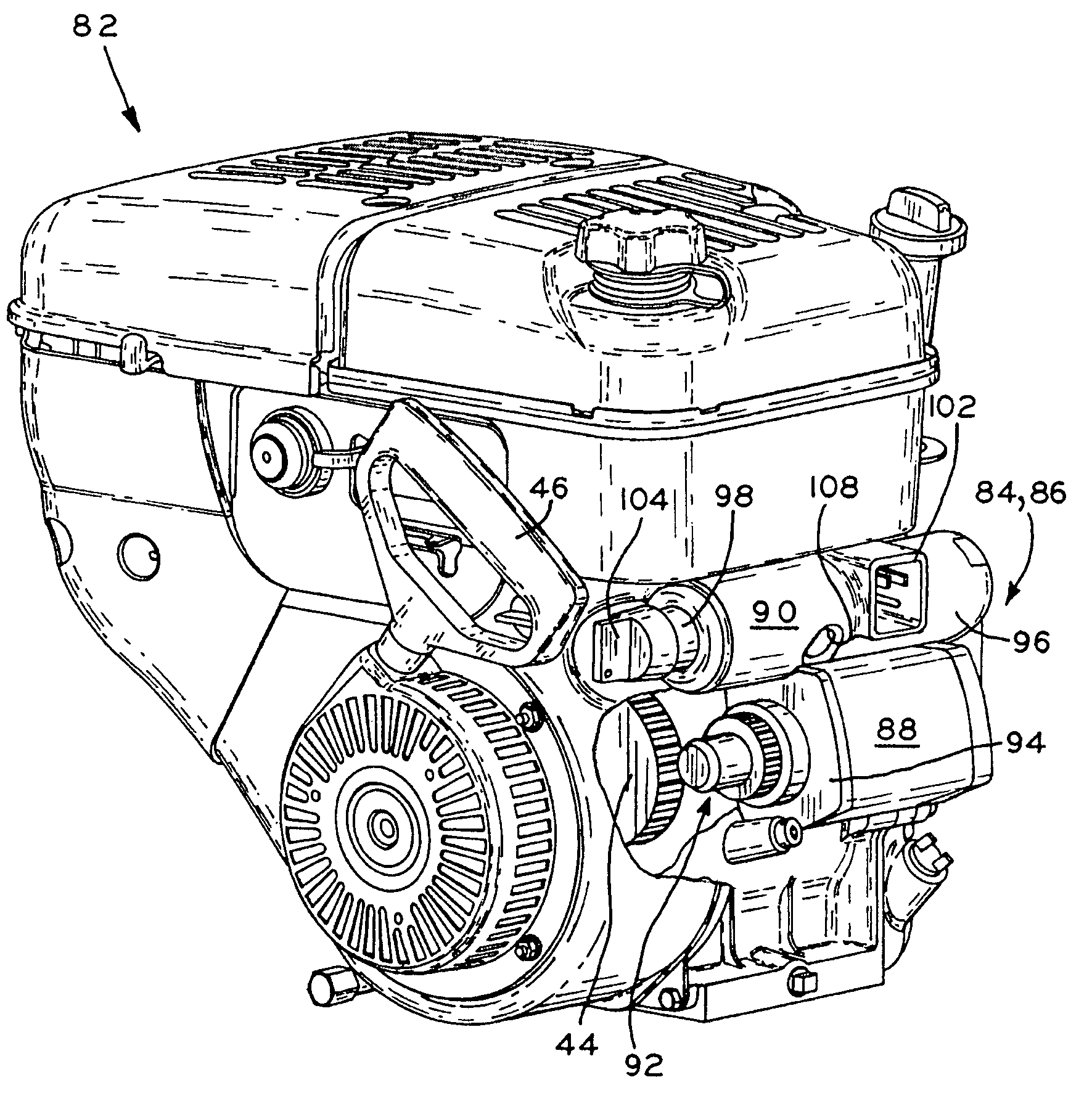

An internal combustion engine including an electrical starting system which integrates several components into a single assembly for easier manufacture and operation of the engine. For example, a safety switch and key are integrated with the electric motor starting system. The starting system includes a starter motor having a drive member in selective driving relationship with the engine crankshaft, and also includes a key and a switch assembled to the starter motor. The switch includes a power connector and a key interface, and the key and key interface are together moveable between a first or “insert/remove” position in which the key is selectively engageable and disengageable with the key interface, a second or “run” position in which the key is engaged with the key interface and the power connector is not in electrical communication with the starter motor, and a third or “start” position in which the key is engaged with the key interface and the power connector is in electrical communication with the starter motor.
First Claim
Other Claims data not available
