IC carrie, IC socket and method for testing IC device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 8, 2011
Issued Date -
N/A
app pub date -
Mar 11, 2005
filing date -
Mar 11, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

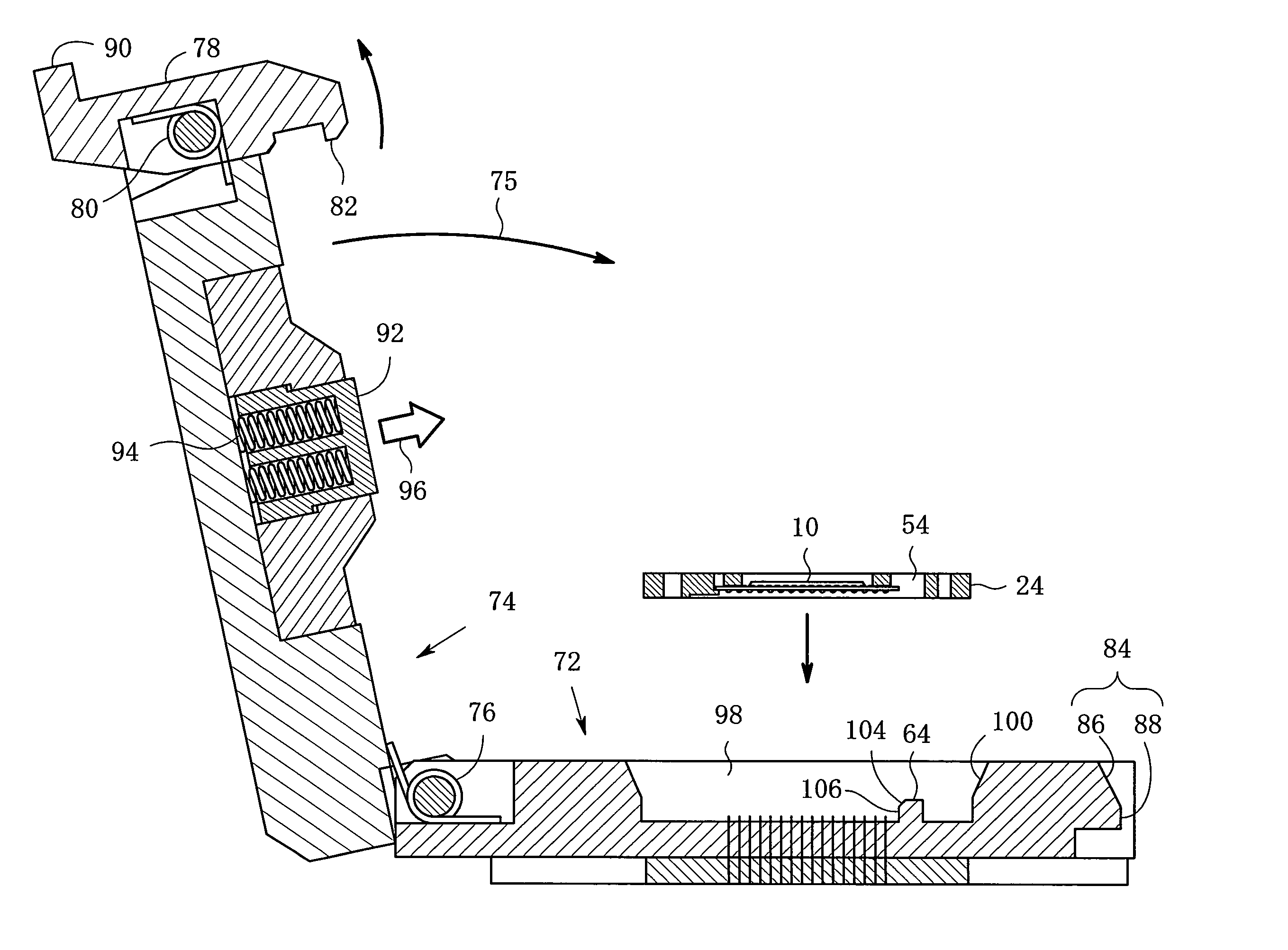

An IC device (10) held on an IC carrier (24) is a double-sided electrode type BGA IC device (10) provided with bump electrodes (14) on a first surface of a package. The IC device has, on a second surface opposite the first surface, (a) a central protrusion (30), (b) a peripheral portion (32) lower than the protrusion by one step, and (c) upper electrodes (18) formed on the peripheral portion of the IC device. The IC carrier is provided with a frame (36), a cover (40), and a holding means (42). The frame forms a device reception space (38) for receiving the IC device. The cover can cover the upper electrodes while in contact with the periphery of the IC device held on the IC carrier. The holding means can hold the IC device on the IC carrier with the cover covering the upper electrodes of the IC device. The IC device can be set in an IC socket while being mounted on the IC carrier.
