Sheave support apparatus for elevator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 8, 2011
Grant Date -
Nov 27, 2008
app pub date -
May 14, 2008
filing date -
May 21, 2007
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

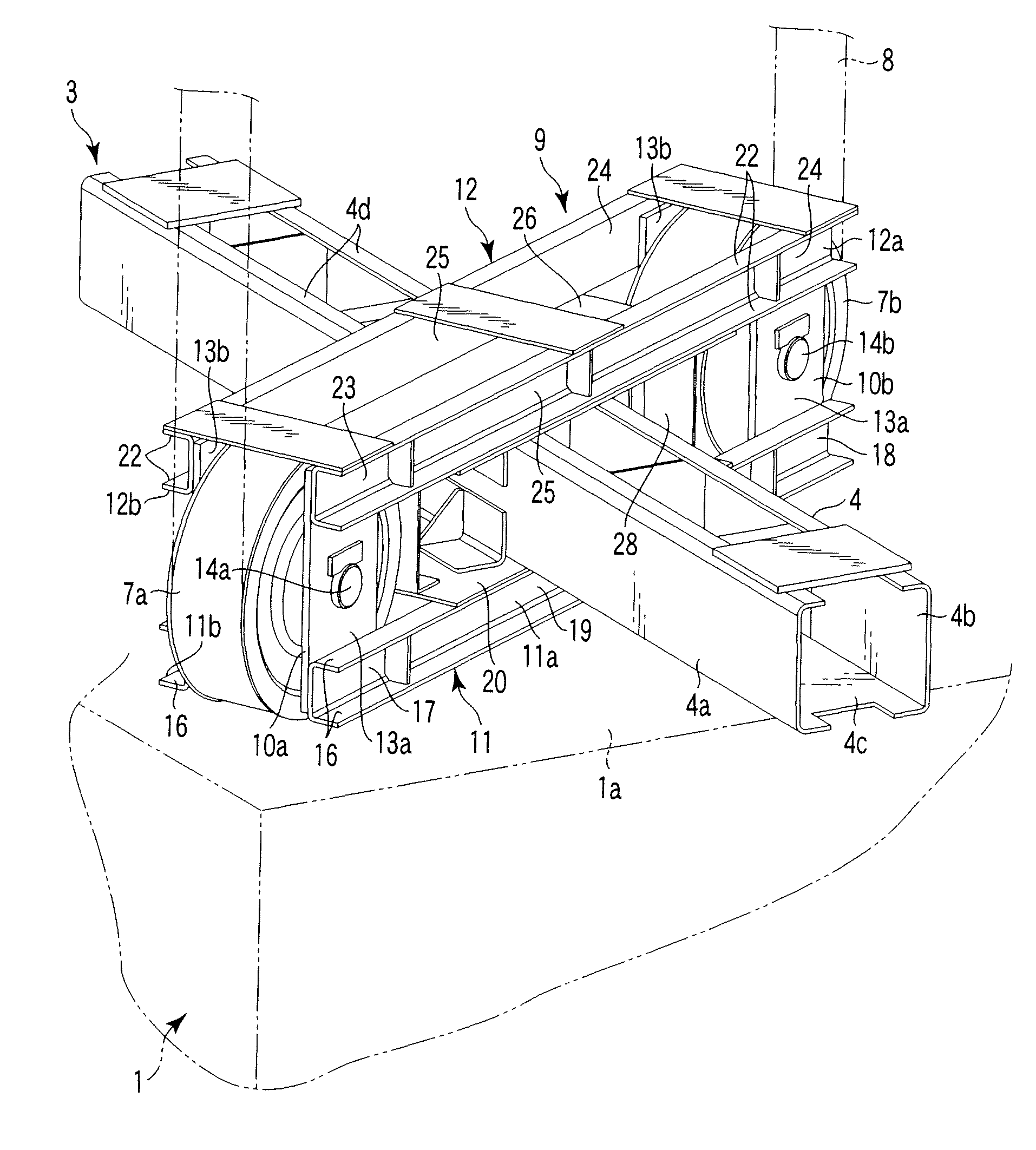

A sheave support apparatus for an elevator includes a car frame and a sheave support member. The car frame supports a car, and has a beam extending in a horizontal direction. The sheave support member rotatably supports a pair of sheaves around which cables pass, and is attached to the beam to extend in the horizontal direction in a state of crossing the beam of the car frame. The sheave support member includes a first support beam and a second support beam. The first and the second support beams are fixed to the beam of the car frame in a state of holding the beam therebetween from above and below. The sheaves are supported between respective end portions of the first support beam and respective end portions of the second support beam.
First Claim
Other Claims data not available
